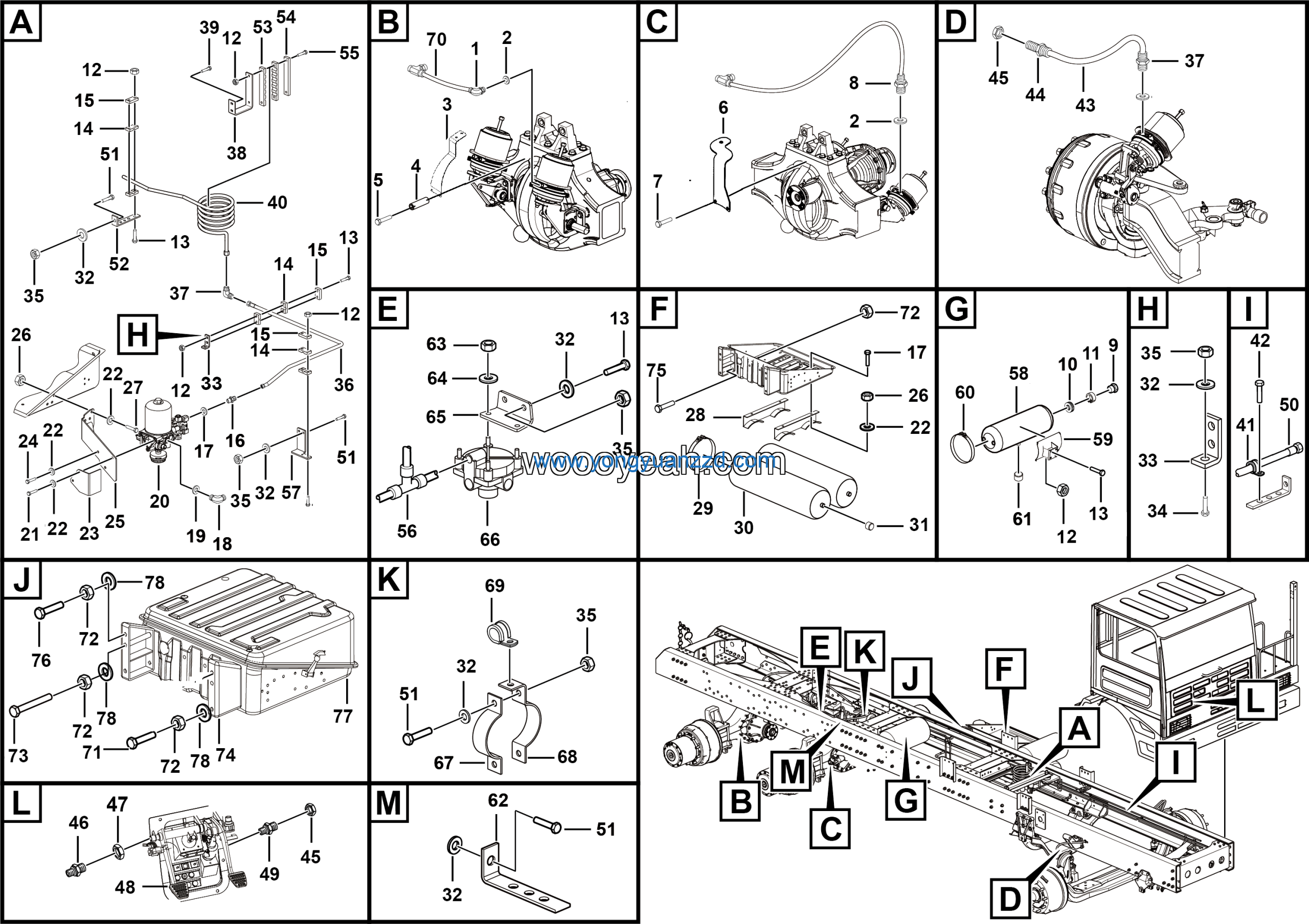

LGMG Off-Highway Dump Truck 2020 – Driving brake assy – J1002-2710010946
Category: 2020 > Off-Highway Dump Truck > MT86H > M086HWE81
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Elastic element NG12 | 4120000193 | 11 |
| 2 | Clip spring NG12 | 4120000192 | 11 |
| 3 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 4 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 8 |
| 5 | Rubber fixed chunk | 27100104181 | 6 |
| 6 | Fixed plate | 27100104191 | 3 |
| 7 | M22-m22 rectangular connector | 27100100691 | 1 |
| 8 | Washer JB982-22 | 4015000092 | 1 |
| 9 | Joint m12-m12 | 27100104301 | 2 |
| 10 | Washer JB982-12 | 4015000327 | 2 |
| 11 | M16-M18 rectangular connector | 27100100641 | 2 |
| 12 | Air Handling unit | 4120001086 | 1 |
| 13 | Bolt GB5786-M12*1.5*35EpZn-8.8 | 4011010010 | 2 |
| 14 | Washer GB97.1-12EpZn-300HV | 4015000168 | 10 |
| 15 | Guard plate | 27100107411 | 1 |
| 16 | Bolt GB5786-M12*1.5*30EpZn-8.8 | 4011000317 | 1 |
| 17 | The dryer bracket | 27100107331 | 1 |
| 18 | Nut GB6170-M12EpZn-8 | 4013000011 | 7 |
| 19 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 7 |
| 20 | Air reservoir bracket | 27100103652 | 2 |
| 21 | Hose clamp φ280-φ295 | 4120000113 | 4 |
| 22 | Washer JB982-16 | 4015000141 | 6 |
| 23 | Air reservoir 50L | 4120000141 | 2 |
| 24 | Plug NG12-M22*1.5 | 4120000201 | 2 |
| 25 | Washer GB97.1-10EpZn-300HV | 4015000162 | 29 |
| 26 | Bracket | 27100105951 | 1 |
| 27 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 5 |
| 28 | Nut GB6170-M10EpZn-8 | 4013000007 | 27 |
| 29 | Pipe | 27100107042 | 1 |
| 30 | M22-M22 Rectangular joint | 27100105931 | 1 |
| 31 | Plate | 27100107031 | 1 |
| 32 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 6 |
| 33 | Pipe bracket | 27100107402 | 1 |
| 34 | Pipe assembly | 27100107021 | 1 |
| 35 | Clamp | 27100107611 | 1 |
| 36 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 1 |
| 37 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 38 | Partition connector body L12 NG12 | 4120000257 | 2 |
| 39 | Nut M18 | 4120000230 | 5 |
| 40 | Straight bulkhead joint NG6/2-M16*1.5 | 4120000233 | 2 |
| 41 | Thin nut M16*1.5 | 4120000234 | 2 |
| 42 | Foot brake valve | 4120000133 | 1 |
| 43 | M14-NPT1/8 bulkhead union | 27100106211 | 1 |
| 44 | Sleeve | 27100107421 | 2 |
| 45 | Wired hose | 27100107071 | 1 |
| 46 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 4 |
| 47 | Steel tube support | 27100105871 | 1 |
| 48 | Rubber clip | 27100105751 | 2 |
| 49 | Platen | 27100105742 | 1 |
| 50 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 51 | T-connector m14-npt1/8-m14 | 27100106991 | 1 |
| 52 | Bracket | 27100105772 | 1 |
| 53 | Air reservoir 30L（246） | 4120000143 | 1 |
| 54 | 30l reservoir bracket | 27100106861 | 1 |
| 55 | Bolt GB5782-M10*85EpZn-8.8 | 4011010016 | 2 |
| 56 | Hose clamp φ246-φ250 | 4120000177 | 2 |
| 57 | Drain valve | 4120000200 | 3 |
| 58 | Bracket 1 | 27100103561 | 2 |
| 59 | Nut GB6170-M8EpZn-8 | 4013000033 | 3 |
| 60 | Washer GB97.1-8EpZn-300HV | 4015000072 | 3 |
| 61 | Plate | 27100106811 | 1 |
| 62 | Relay valve | 4120001087 | 1 |
| 63 | Support | 27100108931 | 4 |
| 64 | Bracket 2 | 27100108201 | 4 |
| 65 | CLAMP | 27110102381 | 4 |
| 66 | Pipe bracket | 27100107393 | 1 |
| 67 | Brake air lines assy | 4120002738 | 1 |
| 68 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 2 |
| 69 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 8 |
| 70 | Bolt GB5782-M16*210EpZn-10.9 | 4011010370 | 2 |
| 71 | Plate | 27100106411 | 1 |
| 72 | Bolt GB5782-M16*70EpZn-10.9 | 4011000824 | 1 |
| 73 | Bolt GB5782-M16*60EpZn-10.9 | 4011000607 | 3 |
| 74 | Battery box assy | 4190002306 | 1 |
