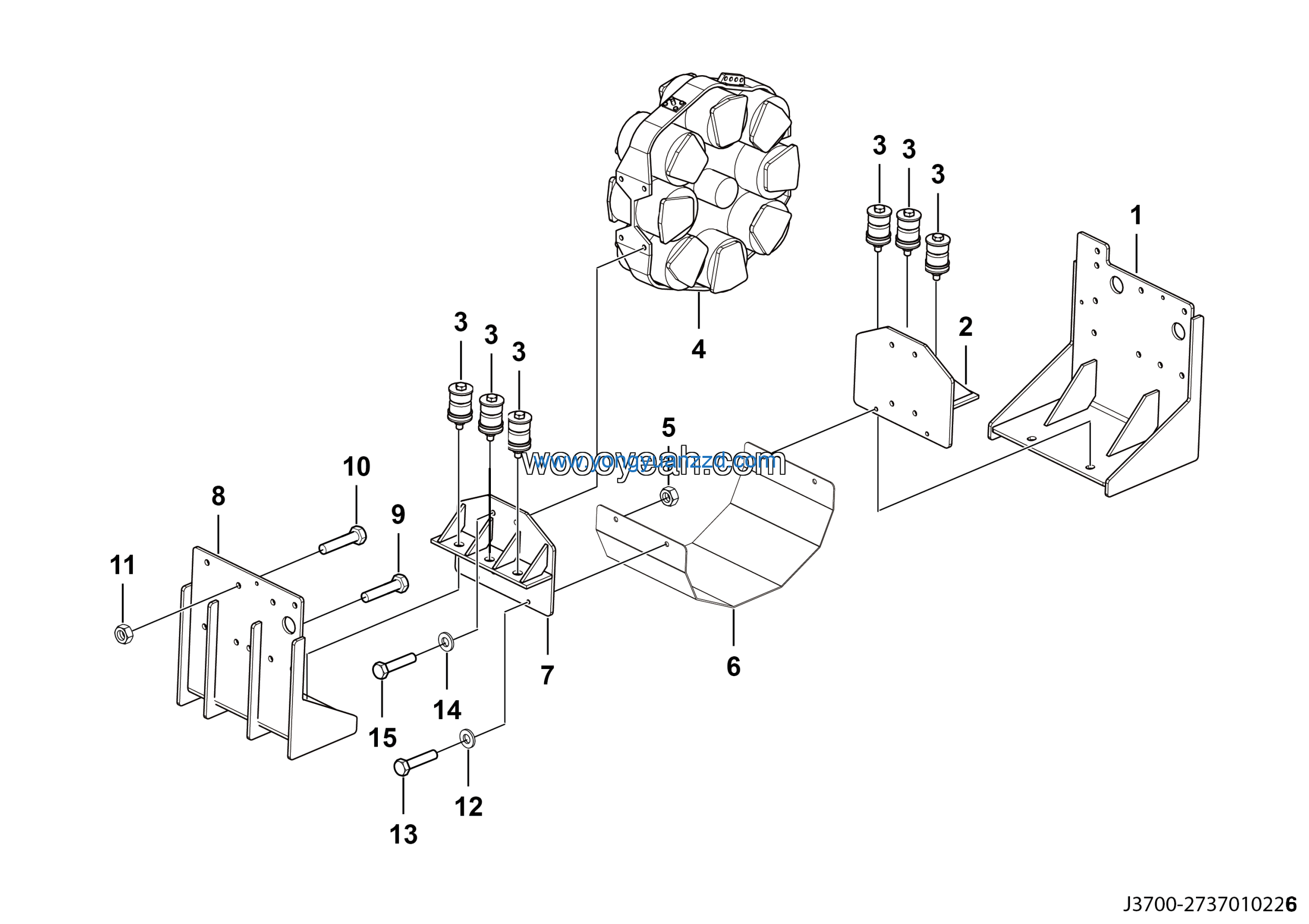

LGMG Off-Highway Dump Truck 2020 – Eddy current retarder assy – J3700-2737010226
Category: 2020 > Off-Highway Dump Truck > MT95D > M095DWA96
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M16*50EpZn-8.8 | 4011000510 | 6 |
| 2 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 10 |
| 3 | Washer GB97.1-14EpZn-300HV | 4015000177 | 4 |
| 4 | Bolt GB5783-M14*40EpZn-8.8 | 4011000814 | 4 |
| 5 | Conical shim | 4110001136 | 8 |
| 6 | Bolt GB5786-M14*1.5*35EpZn-8.8 | 4011000346 | 8 |
| 7 | Plate | 27370102231 | 1 |
| 8 | Plate | 27370101001 | 1 |
| 9 | Rubber cushion assy | 4110001135 | 6 |
| 10 | Electromagnetic retarder | 4110001635 | 1 |
| 11 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 1 |
| 12 | Fender | 27370100171 | 1 |
| 13 | Plate | 27370101011 | 1 |
| 14 | Plate | 27370102251 | 1 |
| 15 | Bolt GB5782-M16*60EpZn-8.8 | 4011000068 | 4 |
