LGMG Off-Highway Dump Truck 2020 – Electric air conditioner assy – N2100-2721010463
Category: 2020 > Off-Highway Dump Truck > MT95H > M095HHAE8

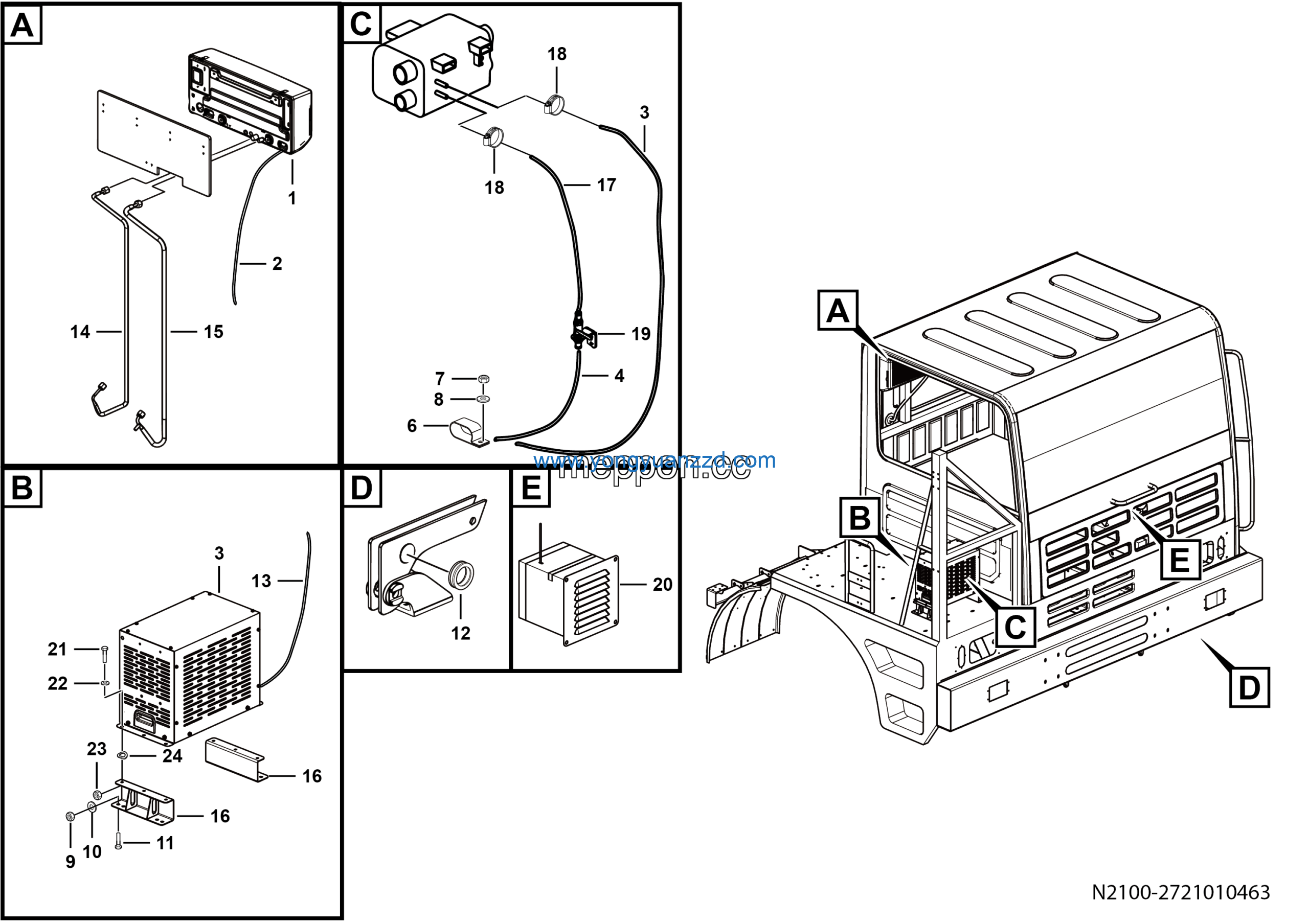

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 2 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 3 | Sheath | 27210103441 | 2 |
| 4 | Power cable 6.5 | 4130702411 | 1 |
| 5 | High pressure connecting pipe 4 | 4130702409 | 1 |
| 6 | Low pressure connecting pipe 4 | 4130702410 | 1 |
| 7 | Mounting base | 27210104661 | 2 |
| 8 | SUPPORT PLATE | 27210104361 | 1 |
| 9 | Hose clamp JB8870-D32 | 4017000011 | 6 |
| 10 | Valve assembly | 27210103841 | 1 |
| 11 | Air conditioning unit | 4130702407 | 1 |
| 12 | Fresh air sys assy | 4190704008 | 1 |
| 13 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 6 |
| 14 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 15 | Nut GB6170-M8EpZn-8 | 4013000033 | 6 |
| 16 | External unit damping pad 0477070017 | 4130702225007 | 6 |
| 17 | Internal & external signal wire | 4130702412 | 1 |
| 18 | Air conditioning external unit | 4130702408 | 1 |
| 19 | Outlet pipe of heater | 27210103224 | 1 |
| 20 | Intlet pipe of heater | 27210103744 | 1 |
| 21 | Double nipple clamp | 27210101701 | 2 |
| 22 | Washer GB96.1-6EpZn-300HV | 4015000198 | 3 |
| 23 | Nut GB6170-M6EpZn-8 | 4013000028 | 3 |
| 24 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
