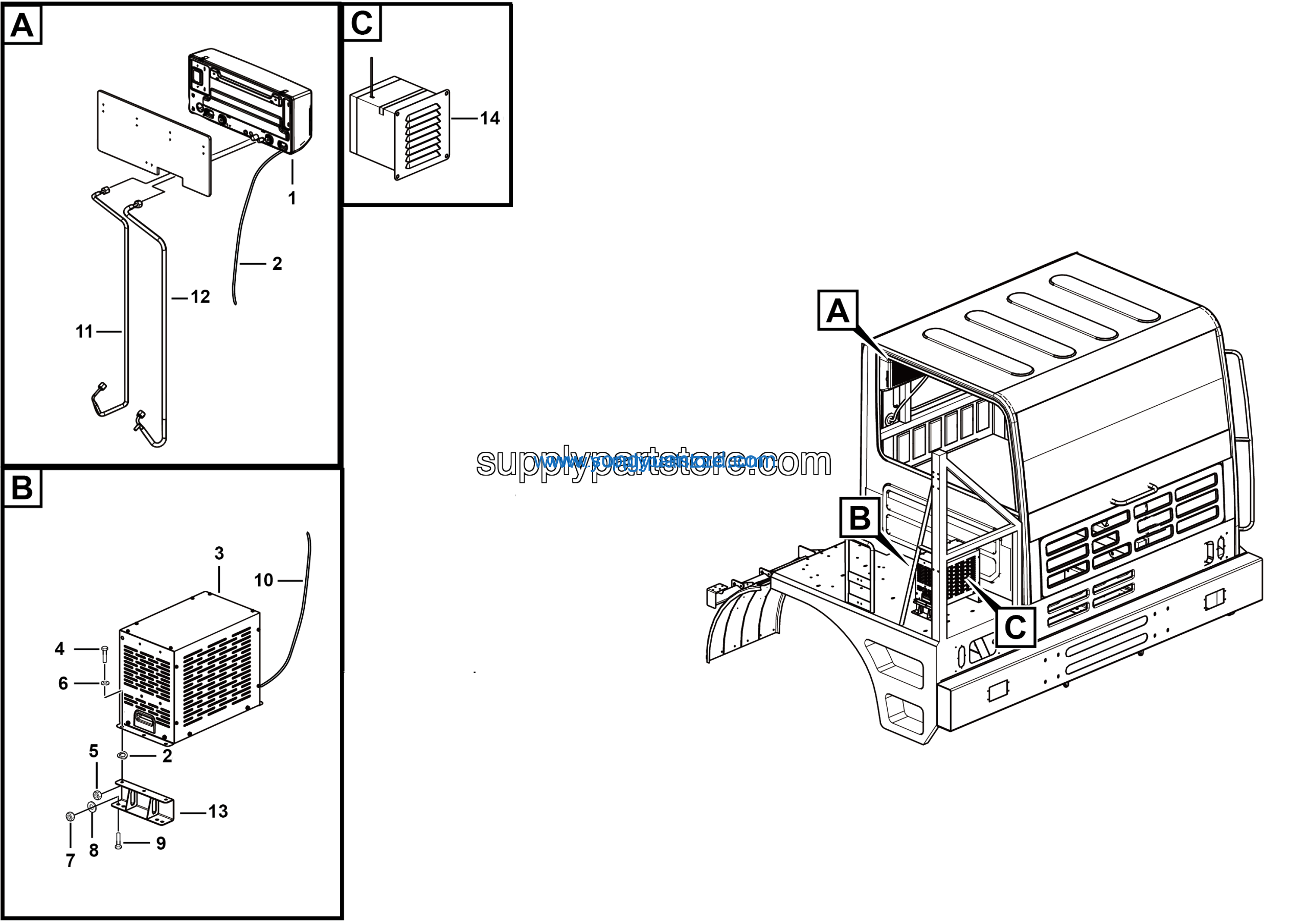

LGMG Off-Highway Dump Truck 2020 – Electric air conditioner assy – N2100-2721010467
Category: 2020 > Off-Highway Dump Truck > MT95H > M095HHAF7
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Power cable 7.2 | 4130702126 | 1 |
| 2 | High pressure connecting pipe 4.6 | 4130702219 | 1 |
| 3 | Low pressure connecting pipe 4.6 | 4130702121 | 1 |
| 4 | Mounting base | 27210104661 | 2 |
| 5 | Fresh air sys assy | 4190704008 | 1 |
| 6 | Air conditioning unit | 4130702407 | 1 |
| 7 | Internal & external signal wire | 4130702412 | 1 |
| 8 | Air conditioning external unit | 4130702408 | 1 |
| 9 | Nut GB6170-M8EpZn-8 | 4013000033 | 6 |
| 10 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 11 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 6 |
| 12 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 13 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 14 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
