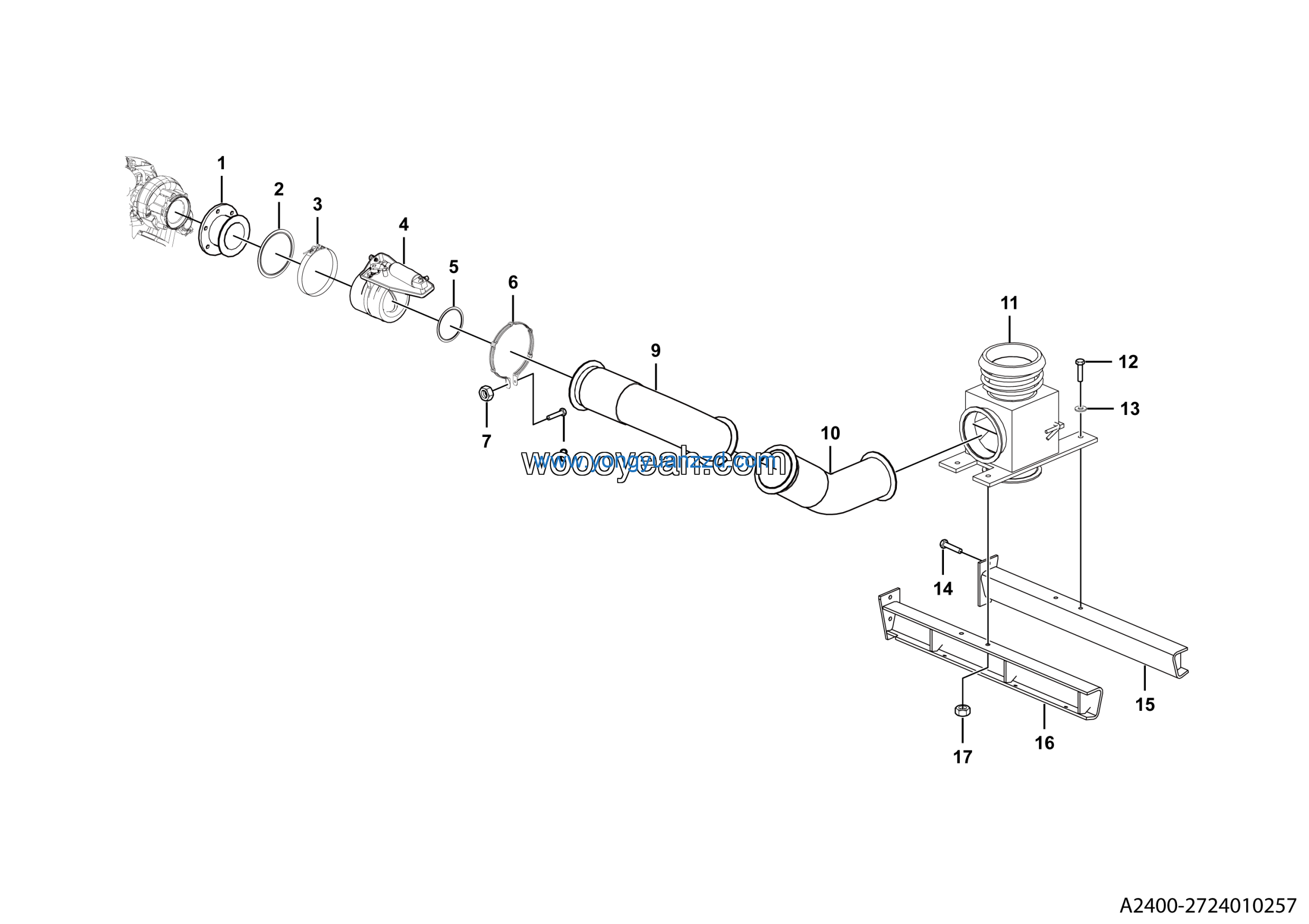

LGMG Off-Highway Dump Truck 2020 – Exhaust and heating system assy – A2400-2724010257
Category: 2020 > Off-Highway Dump Truck > MT86H > M086HWE00
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lower exhaust pipe | 4110001386 | 1 |
| 2 | Buffer box | 4110001410 | 1 |
| 3 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 4 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 5 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 4 |
| 6 | Right plate | 27240102131 | 1 |
| 7 | Left plate | 27240102111 | 1 |
| 8 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 9 | Connecting pipe | 27010104802 | 1 |
| 10 | Shim WG9731540079 | 4190000165 | 1 |
| 11 | V-Clamp 127 | 4110001169 | 1 |
| 12 | Exhaust brake butterfly valve assy | 4110001152 | 1 |
| 13 | Shim WG9719540019 | 4190000167 | 1 |
| 14 | Clamp | 4110000768 | 3 |
| 15 | Nut GB6170-M10EpZn-10 | 4013000005 | 6 |
| 16 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 3 |
| 17 | Upr exhaust pipe | 4110001616 | 1 |
