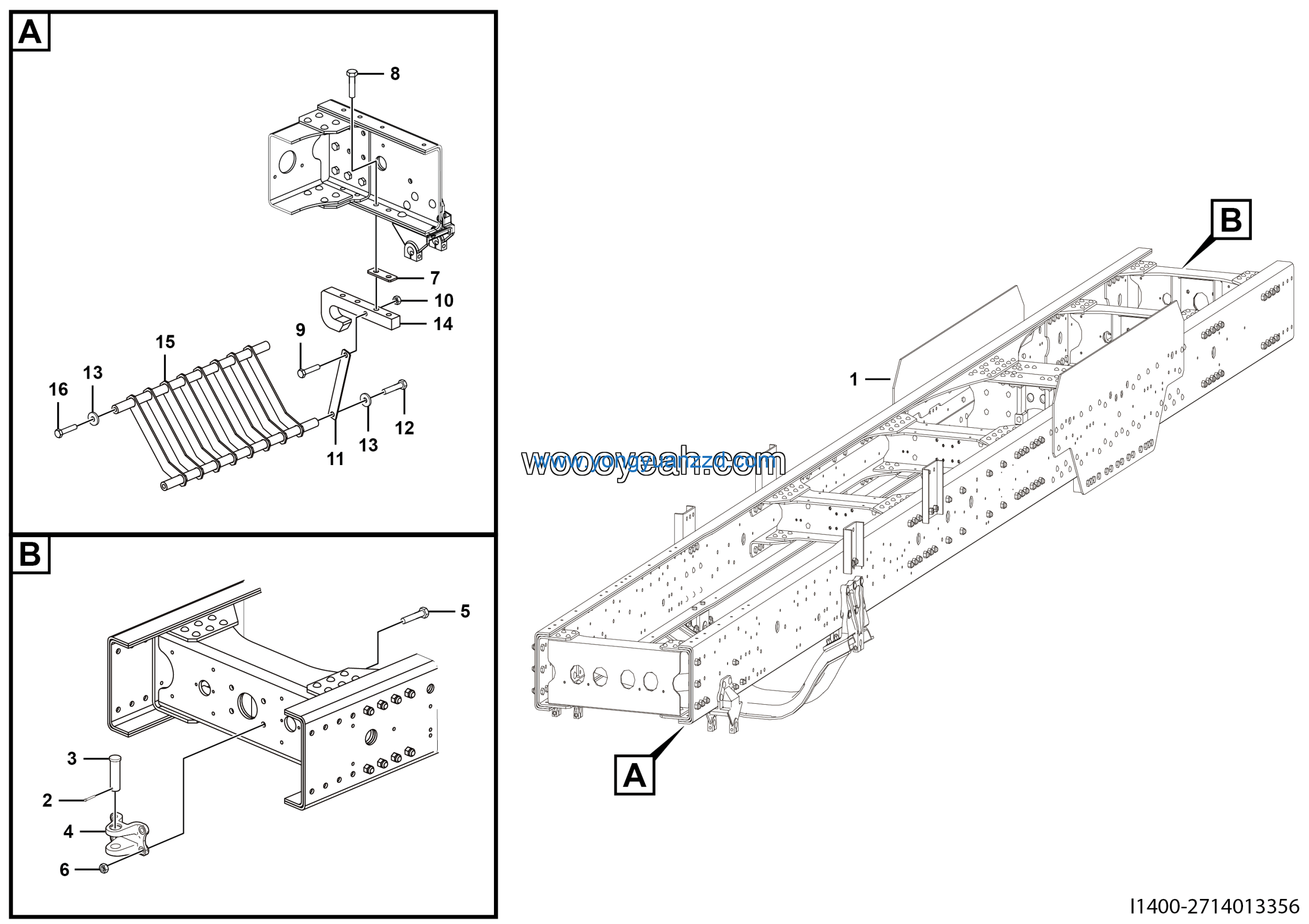

LGMG Off-Highway Dump Truck 2020 – Frame assy – I1400-2714013356
Category: 2020 > Off-Highway Dump Truck > The wide-body dump truck parts atlas of UT350 > M0500WA00QC1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.2-M14*1.5EpZn-8 | 4013010203 | 2 |
| 2 | CAB ASSEMBLY | 27140133721 | 2 |
| 3 | Bolt GB5786-M16*1.5*45EpZn-8.8 | 4011000494 | 2 |
| 4 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 5 | Front pull hook | 27140119611 | 2 |
| 6 | Front protection bar | 27140113464 | 1 |
| 7 | Bolt GB5786-M16*1.5*35EpZn-8.8 | 4011000351 | 2 |
| 8 | Frame | 27140133571 | 1 |
| 9 | No longer used | 4016000106 | 1 |
| 10 | Pin | 27140105842 | 1 |
| 11 | Rear traction seat | 27140104822 | 1 |
| 12 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 4 |
| 13 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
| 14 | Plate | 27140113431 | 2 |
| 15 | Bolt GB5785-M16*1.5*55-12.9 | 4011010388 | 8 |
| 16 | Bolt GB5785-M14*1.5*75EpZn-8.8 | 4011000178 | 2 |
