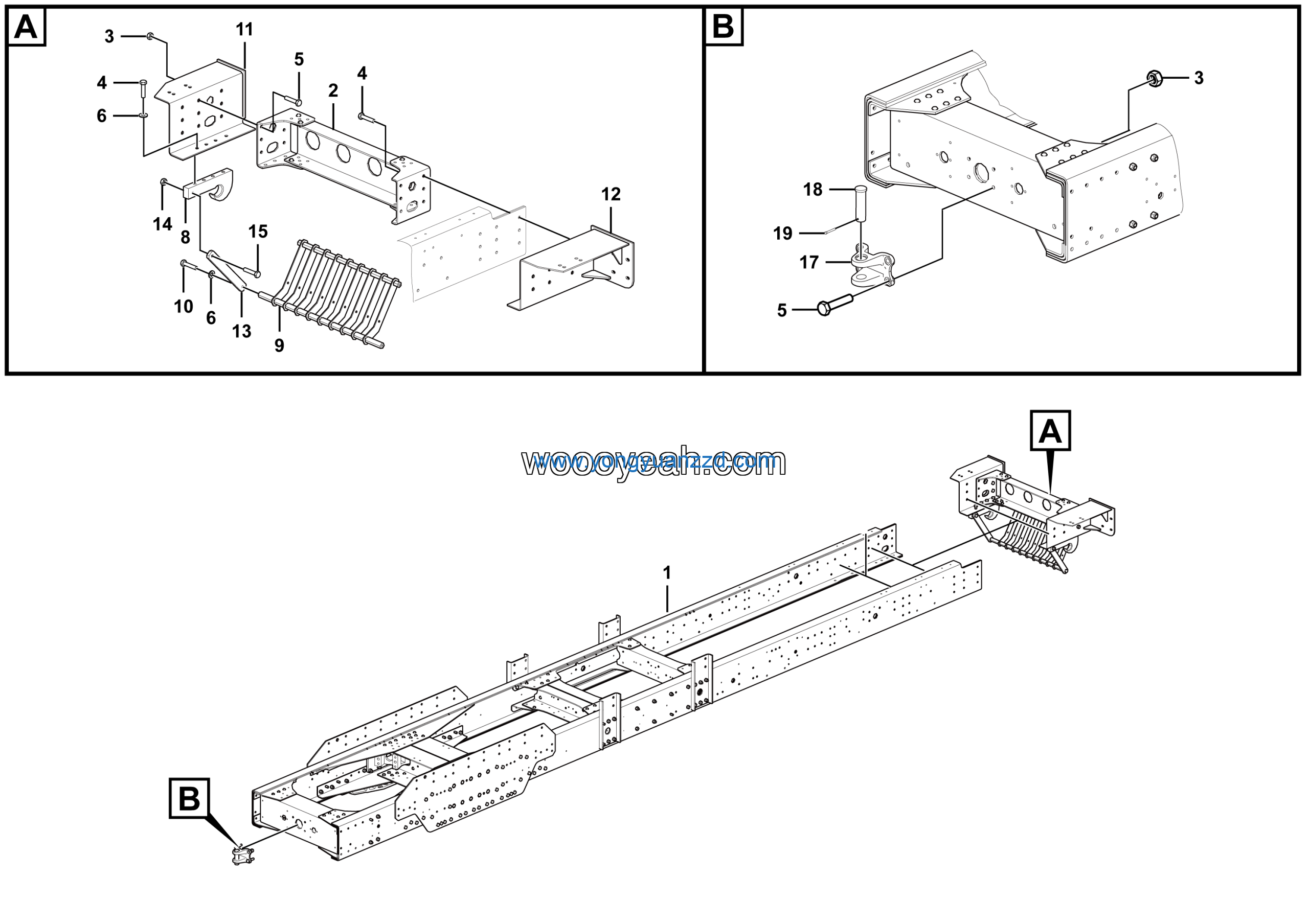

LGMG Off-Highway Dump Truck 2020 – Frame assy – I1401-2714013688
Category: 2020 > Off-Highway Dump Truck > MT95H > M095HHAE2
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | BOLT GB5785-M16*1.5*75EpZn-8.8 | 4011010461 | 2 |
| 2 | PLATE | 27140133171 | 1 |
| 3 | PLATE | 27140133191 | 1 |
| 4 | Connecting rod | 27140119971 | 2 |
| 5 | Nut GB6185.2-M16*1.5EpZn-8 | 4013010168 | 2 |
| 6 | Bolt GB5786-M16*1.5*45EpZn-8.8 | 4011000494 | 2 |
| 7 | Rear traction seat | 27140104822 | 1 |
| 8 | Pin | 27140105842 | 1 |
| 9 | No longer used | 4016000106 | 1 |
| 10 | Frame | 27140136891 | 1 |
| 11 | LEFT REINFORCE CARLING | 27140133151 | 1 |
| 12 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 16 |
| 13 | Bolt GB5785-M16*1.5*70flZnyc-12.9-480 | 4011010598 | 4 |
| 14 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 12 |
| 15 | Washer GB97.1-16EpZn-300HV | 4015000181 | 22 |
| 16 | Bolt GB5786-M16*1.5*55flZnyc-12.9-480 | 4011010640 | 8 |
| 17 | Front pull hook | 27140119691 | 2 |
| 18 | Front guard | 27140104952 | 1 |
