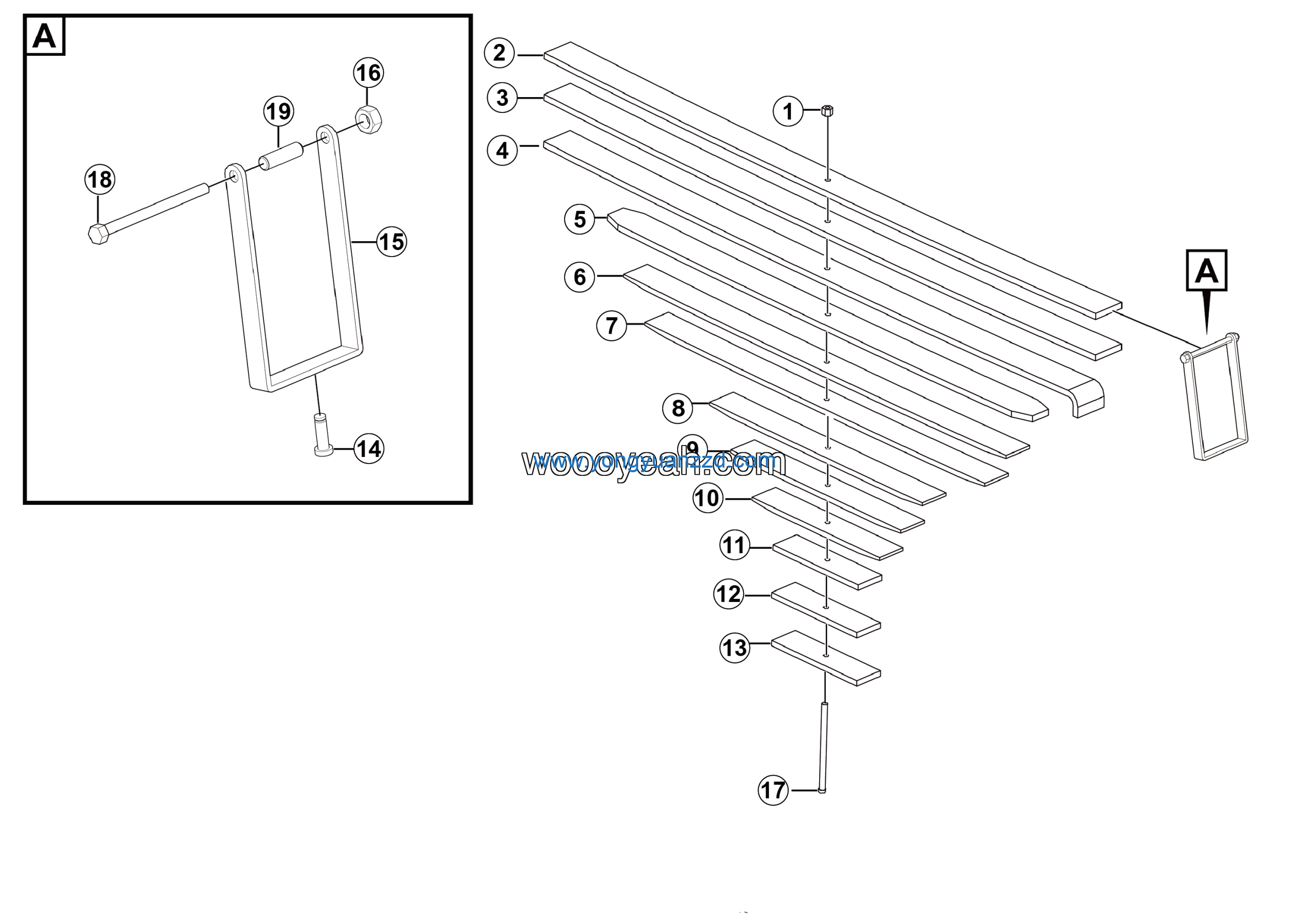

LGMG Off-Highway Dump Truck 2020 – Front leaf spring assy – G1201-4110002001
Category: 2020 > Off-Highway Dump Truck > CMT66 > C0660W3E0A003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 9th leaf of front leaf spring | 4110002001009 | 1 |
| 2 | 10th leaf of front leaf spring | 4110002001010 | 1 |
| 3 | 11th leaf of front leaf spring | 4110002001011 | 1 |
| 4 | 12th leaf of front leaf spring | 4110002001012 | 1 |
| 5 | Rivet | 4110002001020 | 4 |
| 6 | Clamp | 4110002001021 | 4 |
| 7 | Self-locking nut | 4110002001019 | 4 |
| 8 | Center bolt | 4110002001017 | 1 |
| 9 | Bolt | 4110002001018 | 4 |
| 10 | Bushing | 4110002001022 | 4 |
| 11 | Center nut | 4110002001016 | 1 |
| 12 | Leaf of front leaf spring | 4110002001001 | 1 |
| 13 | Leaf of front leaf spring | 4110002001002 | 1 |
| 14 | 3rd leaf of front leaf spring | 4110002001003 | 1 |
| 15 | 4th leaf of front leaf spring | 4110002001004 | 1 |
| 16 | 5th leaf of front leaf spring | 4110002001005 | 1 |
| 17 | 6th leaf of front leaf spring | 4110002001006 | 1 |
| 18 | 7th leaf of front leaf spring | 4110002001007 | 1 |
| 19 | 8th leaf of front leaf spring | 4110002001008 | 1 |
