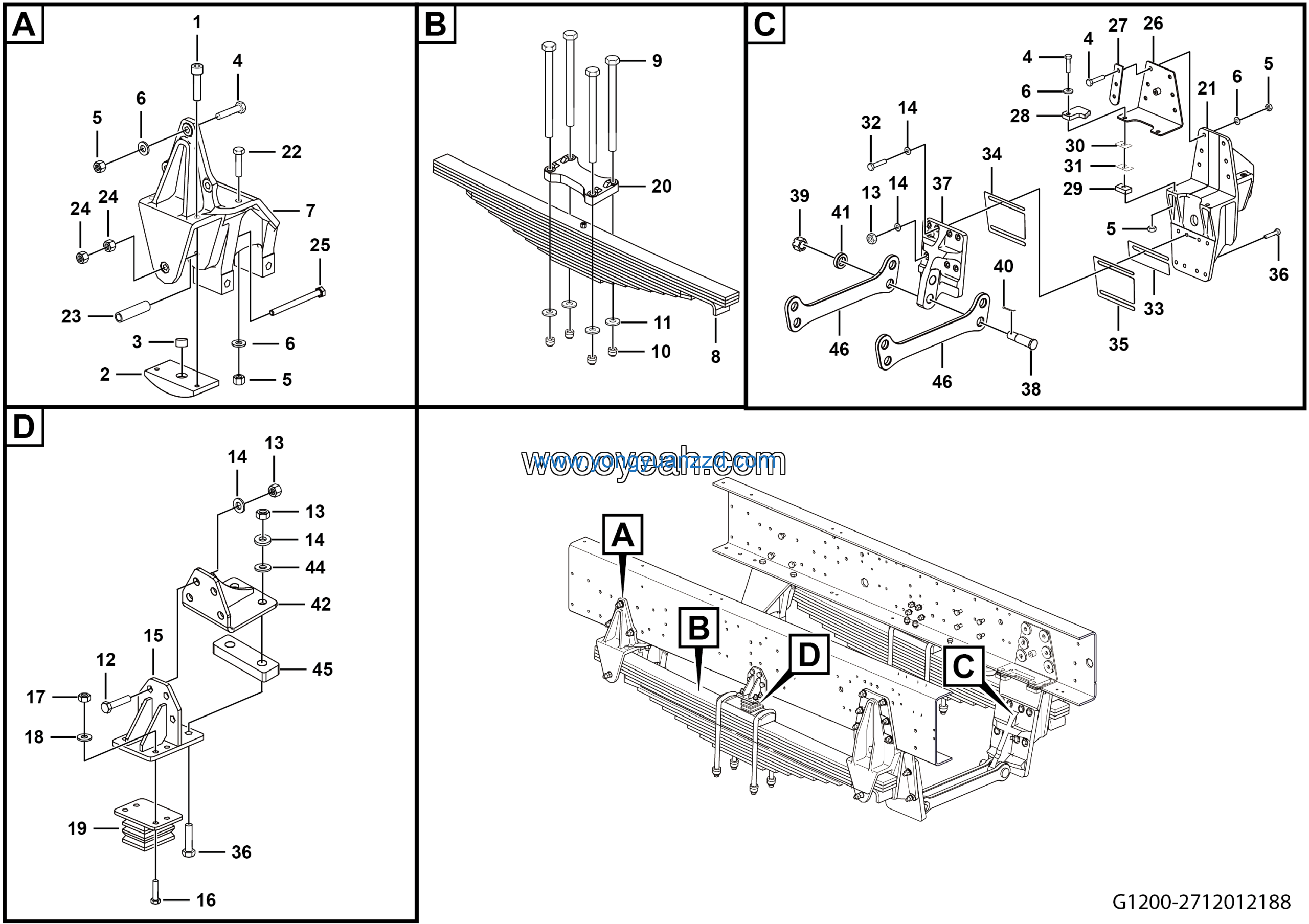

LGMG Off-Highway Dump Truck 2020 – Front leaf spring installation assy – G1200-2712012188
Category: 2020 > Off-Highway Dump Truck > MT86 > M0850HE03
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Self-locking nut with the shoulder | 27120103611 | 8 |
| 2 | Washer 24 | 27120118761 | 8 |
| 3 | Bolt GB5782-M16*65flZnyc-12.9-480 | 4011010556 | 8 |
| 4 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 24 |
| 5 | Washer GB1230-16EpZn-45 | 4015000001 | 40 |
| 6 | The limiting block supporting frame | 27120120001 | 2 |
| 7 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 8 |
| 8 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 9 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 10 | FR spring stopper | 4110002082 | 2 |
| 11 | Screw GB70.1-M12*1.25*40EpZn-8.8 | 4014010080 | 8 |
| 12 | Spring pressing block | 27120115601 | 2 |
| 13 | Front leaf sring rear support saddle | 27120118091 | 2 |
| 14 | Bolt GB5785-M18*1.5*80flZnyc-12.9-480 | 4011010499 | 4 |
| 15 | Bolt protection tube | 27120100211 | 4 |
| 16 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 8 |
| 17 | Bolt | 27120100221 | 4 |
| 18 | Plate | 27120118601 | 2 |
| 19 | Plate | 27120117791 | 4 |
| 20 | backing plate | 27120118421 | 2 |
| 21 | front leaf spring support pad | 27120118391 | 4 |
| 22 | Wearing piece | 27120114992 | 4 |
| 23 | adjusting shim | 27120118401 | 4 |
| 24 | sdjusting shim | 27120118411 | 4 |
| 25 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 4 |
| 26 | Adjusting shim | 27120114771 | 2 |
| 27 | Adjusting shim | 27120114781 | 2 |
| 28 | Adjustment gasket | 27120117822 | 2 |
| 29 | Bolt GB5782-M16*80flZnyc-12.9-480 | 4011010614 | 16 |
| 30 | Second beam seat | 27120113671 | 2 |
| 31 | Pin | 27120117411 | 4 |
| 32 | Nut GB6178-M36EpZn-10 | 4013010114 | 4 |
| 33 | Cushion block | 27120113681 | 4 |
| 34 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 35 | Sleeve | 27120117811 | 4 |
| 36 | Seat | 27120120021 | 2 |
| 37 | Pin | 27120118291 | 2 |
| 38 | Big washer | 27120117661 | 4 |
| 39 | Plate | 27120120051 | 2 |
| 40 | Second pole | 27120117801 | 2 |
| 41 | Bolt GB5785-M18*1.5*90flZnyc-12.9-480 | 4011010496 | 22 |
| 42 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 26 |
| 43 | Washer gb1230-18-45 | 27120105414 | 30 |
| 44 | Front leaf sring front support saddle1 | 27120115682 | 2 |
| 45 | FR leaf spring assy LG12-4N13B100H18 | 4110702278 | 2 |
| 46 | Bolt | 27120117241 | 8 |
