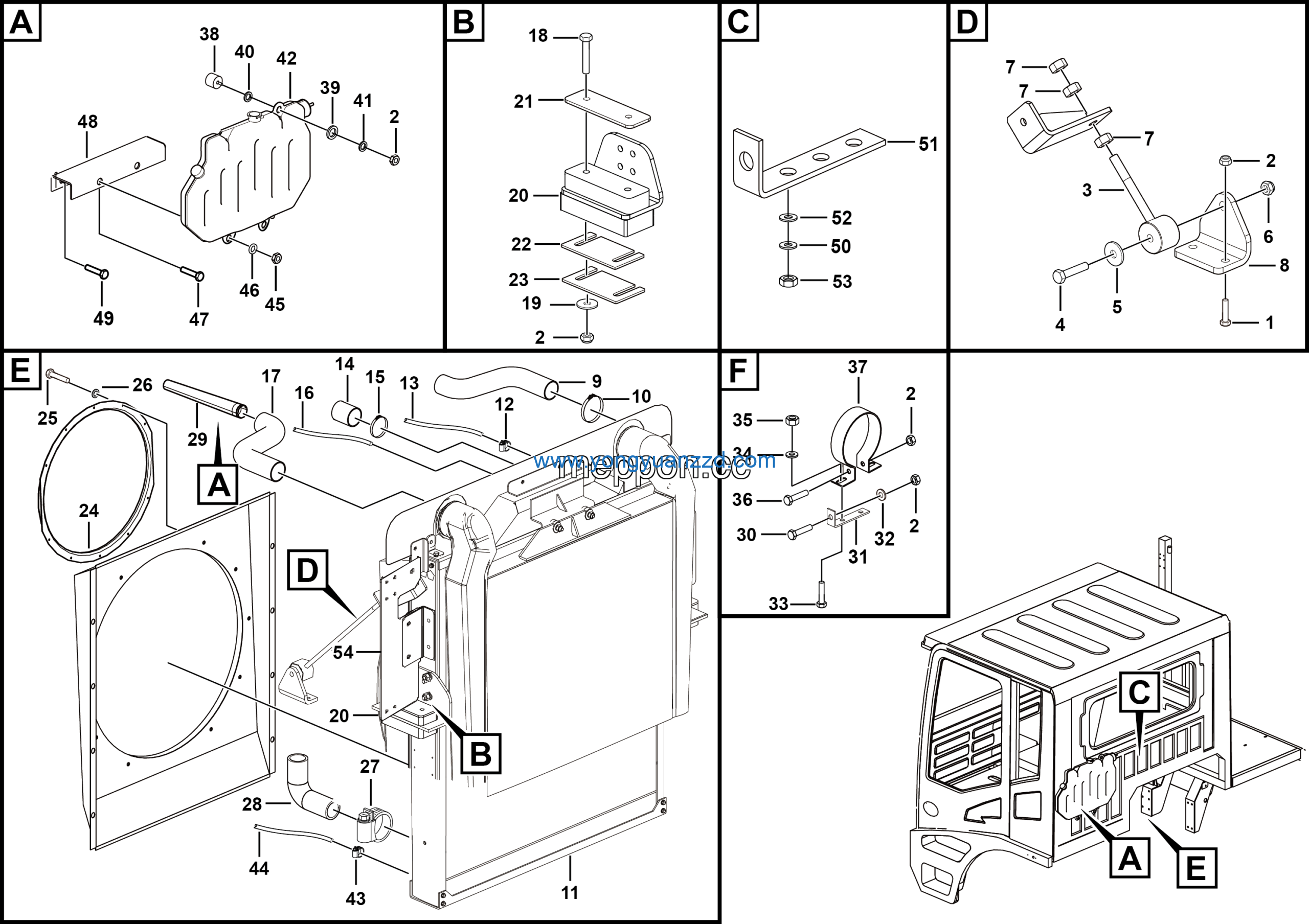

LGMG Off-Highway Dump Truck 2020 – Radiator assy – A0301-2703011202
Category: 2020 > Off-Highway Dump Truck > MT60D > M060DWA03
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | No longer used | 4019010001 | 4 |
| 2 | Radiator assy | 4110001837 | 1 |
| 3 | No longer used | 4190000343 | 4 |
| 4 | Air pipe | 27030102021 | 1 |
| 5 | Pipe | 27030107411 | 1 |
| 6 | No longer used | 4019010101 | 2 |
| 7 | Vent pipe | 27030107341 | 1 |
| 8 | Pipe | 27030107431 | 1 |
| 9 | Bolt GB5783-M10*110EpZn-8.8 | 4011010137 | 4 |
| 10 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 11 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 4 |
| 12 | Radiator shock absorber assy | 4110001445 | 2 |
| 13 | Plate | 27030109021 | 2 |
| 14 | Shim 330652 | 4110001621 | 4 |
| 15 | Plate | 27030112031 | 2 |
| 16 | Glass fiber reinforced plastic wind ring | 4110001844 | 1 |
| 17 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 10 |
| 18 | Washer GB97.1-6-300HV | 4015000230 | 10 |
| 19 | T-Clamp 78-86 | 4190002212 | 2 |
| 20 | Pipe | 27030107422 | 1 |
| 21 | Cold air intake pipe | 27030105791 | 1 |
| 22 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 23 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 24 | Support ii | 27030105872 | 1 |
| 25 | Washer GB96.1-10EpZn-300HV | 4015000197 | 1 |
| 26 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 27 | Washer GB96.1-8EpZn-300HV | 4015000256 | 4 |
| 28 | Nut GB6170-M8EpZn-8 | 4013000033 | 7 |
| 29 | Bolt GB5782-M8*55EpZn-8.8 | 4011000415 | 1 |
| 30 | Support i | 27030105861 | 1 |
| 31 | Rubber shock block | 4110000211 | 1 |
| 32 | washer | 27030102011 | 1 |
| 33 | Radiator bar | 4110001451 | 2 |
| 34 | Washer GB93-8-65Mn | 4015000036 | 5 |
| 35 | Washer GB97.1-8EpZn-300HV | 4015000072 | 5 |
| 36 | Expansion water tank | 4190000607 | 1 |
| 37 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 38 | Water supply tube of water tank | 27030108222 | 1 |
| 39 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 40 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 41 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 42 | E*PANSION TANK BRACKET | 27030102221 | 1 |
| 43 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 44 | Bolt GB5782-M14*75EpZn-8.8 | 4011010190 | 2 |
| 45 | Washer GB97.1-6EpZn-300HV | 4015000207 | 3 |
| 46 | Bracket 1 | 27100103561 | 3 |
| 47 | Washer GB93-6-65Mn | 4015000035 | 3 |
| 48 | Nut GB6170-M6EpZn-8 | 4013000028 | 3 |
| 49 | Radiator shield plate assembly | 27030112211 | 1 |
| 50 | Plate | 27030109731 | 2 |
| 51 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 52 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 53 | Support | 27030109692 | 2 |
| 54 | Pipe | 27030107441 | 1 |
