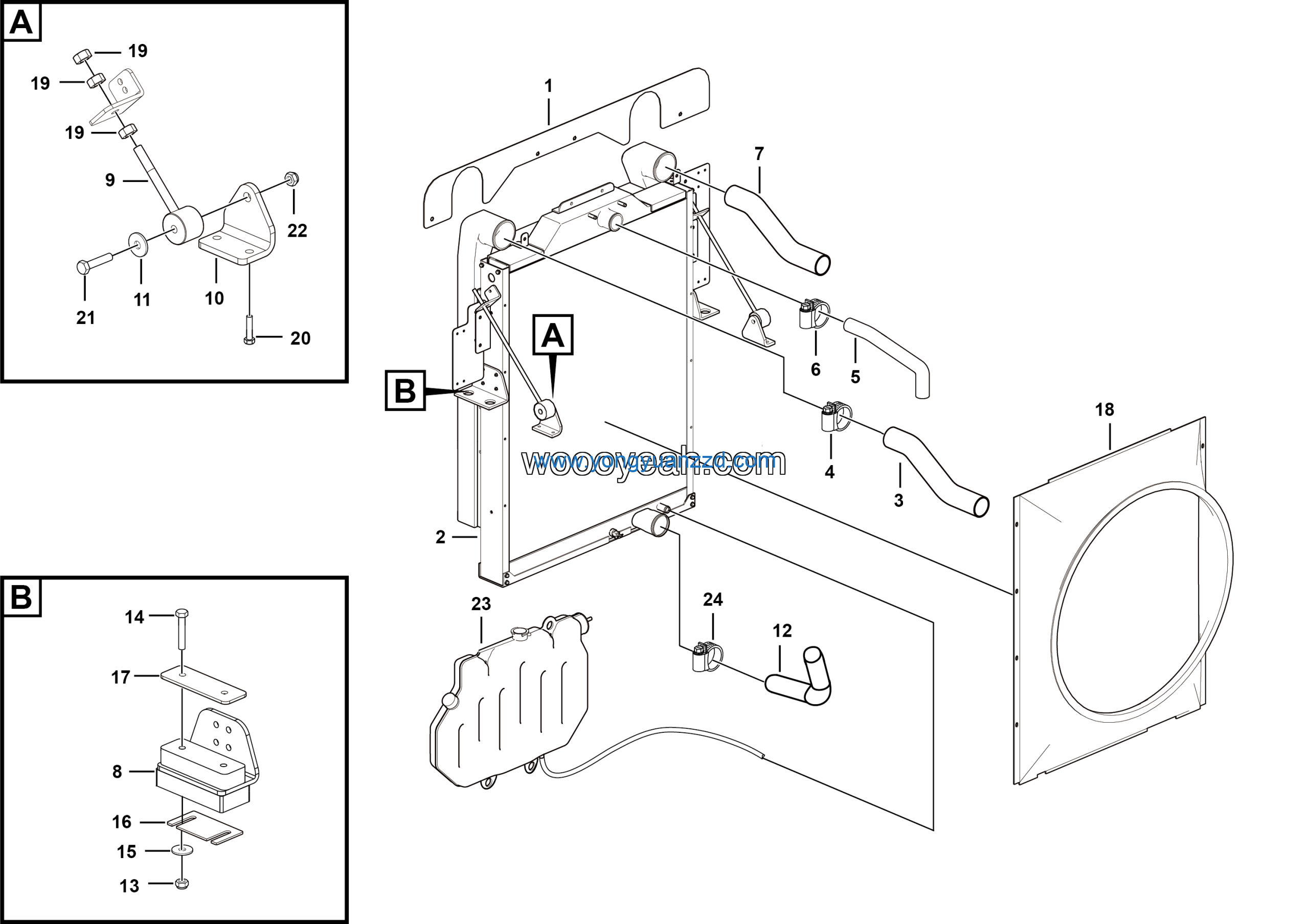

LGMG Off-Highway Dump Truck 2020 – Radiator assy – A0302-2703010984
Category: 2020 > Off-Highway Dump Truck > MT86H > M086HWE35
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Support | 27030109692 | 2 |
| 2 | Plate | 27030109731 | 2 |
| 3 | Pipe | 27030108603 | 1 |
| 4 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 5 | Bolt GB5783-M10*90EpZn-8.8 | 4011000956 | 4 |
| 6 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 7 | Shim 330652 | 4110001621 | 4 |
| 8 | Plate | 27030109021 | 2 |
| 9 | Glass fiber Reinforced plastic wind guide cover | 4110001520 | 1 |
| 10 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 11 | Radiator shield plate assembly | 27030109681 | 1 |
| 12 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 4 |
| 13 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 14 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 15 | Expansion tank | 27030109851 | 1 |
| 16 | T-Clamp 78-86 | 4190002212 | 1 |
| 17 | Radiator assy | 4110001737 | 1 |
| 18 | Pipe | 27030108581 | 1 |
| 19 | No longer used | 4019010211 | 4 |
| 20 | Pipe | 27030108611 | 1 |
| 21 | No longer used | 4019010101 | 3 |
| 22 | Pipe | 27030108591 | 1 |
| 23 | Radiator shock absorber assy | 4110001445 | 2 |
| 24 | Radiator bar | 4110001451 | 2 |
