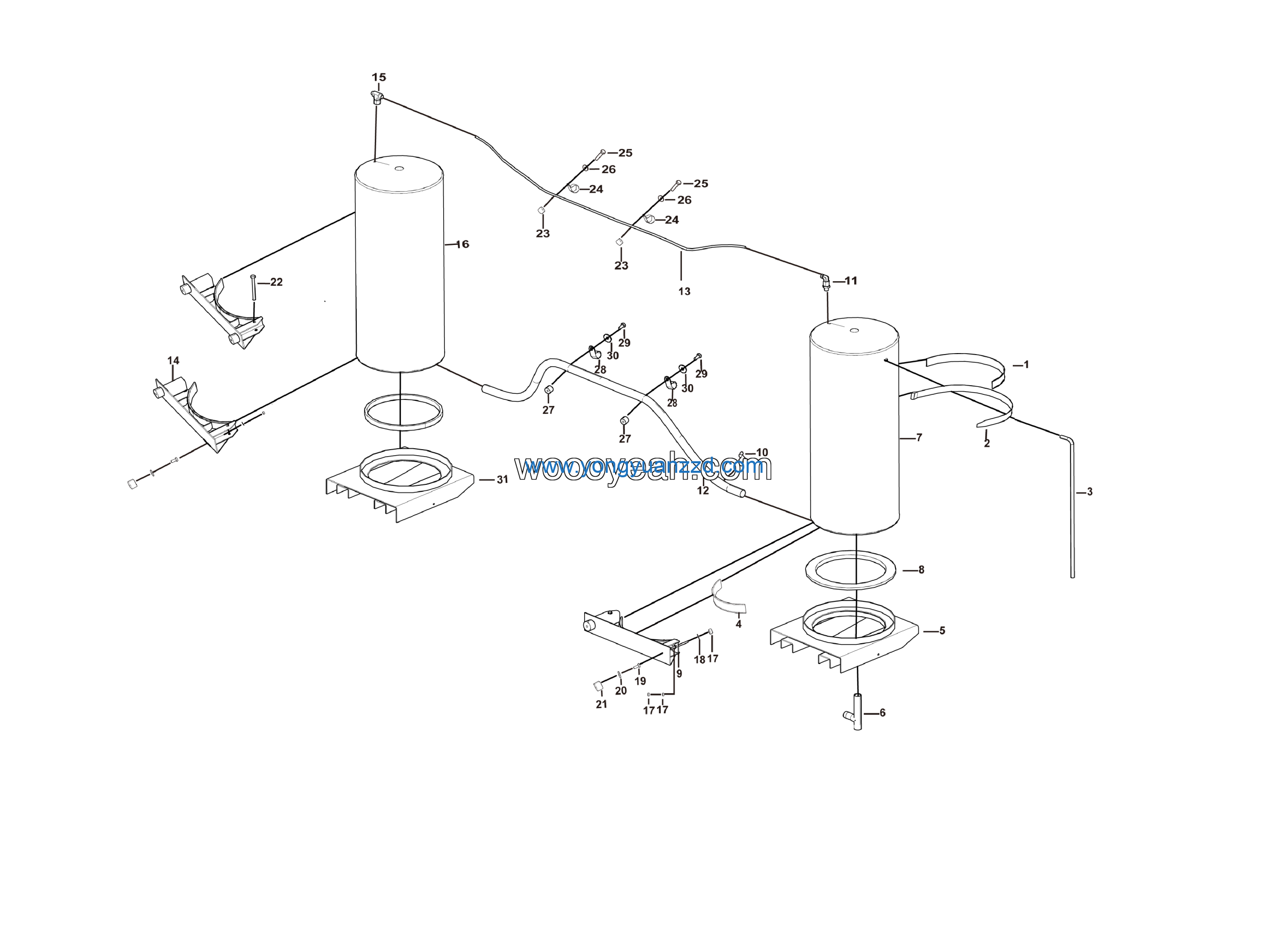

LGMG Off-Highway Dump Truck 2020 – Spray water tank assy – J3801-2738010262
Category: 2020 > Off-Highway Dump Truck > – > M1050WA10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose clamp JB8870-D50 | 4017000009 | 2 |
| 2 | Combination joint LGB143-01810 | 4041001063 | 1 |
| 3 | Connecting pipe | 27380102941 | 1 |
| 4 | Hose assembly M18-2800 | 27380100261 | 1 |
| 5 | Seat | 27380101641 | 2 |
| 6 | Tee joint BC-18 | 4190001019 | 1 |
| 7 | Main water tank assy | 4120002010 | 1 |
| 8 | Nut GB6170-M12EpZn-8 | 4013000011 | 20 |
| 9 | Washer GB96.1-12EpZn-300HV | 4015000186 | 18 |
| 10 | Bolt GB5783-M16*35EpZn-8.8 | 4011000095 | 8 |
| 11 | Cushion belt | 27380102921 | 4 |
| 12 | No longer used | 4015000305 | 8 |
| 13 | Seatm16-65 | 27380102661 | 8 |
| 14 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 4 |
| 15 | Fuse base M8 | 27140102891 | 2 |
| 16 | Pipe clamp Ф13 | 27340100341 | 2 |
| 17 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 18 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 19 | Seat | 27140111531 | 2 |
| 20 | No longer used | 4041010211 | 2 |
| 21 | Bolt GB5783-M12*20EpZn-8.8 | 4011000087 | 2 |
| 22 | Band assembly | 27380102371 | 4 |
| 23 | CUSHION SLEEVE LGB123-0846 | 4041001636 | 2 |
| 24 | Spray water tank support | 27380104111 | 1 |
| 25 | Hose assembly m18-1700 | 27380102342 | 1 |
| 26 | Rubber belt | 27380101851 | 4 |
| 27 | Spray water tank support | 27380104131 | 1 |
| 28 | Pipe | 27380102671 | 1 |
| 29 | Auxiliary water tank assy | 4120002011 | 1 |
| 30 | Rubber mat | 27380101711 | 2 |
| 31 | Seat | 27380101651 | 2 |
