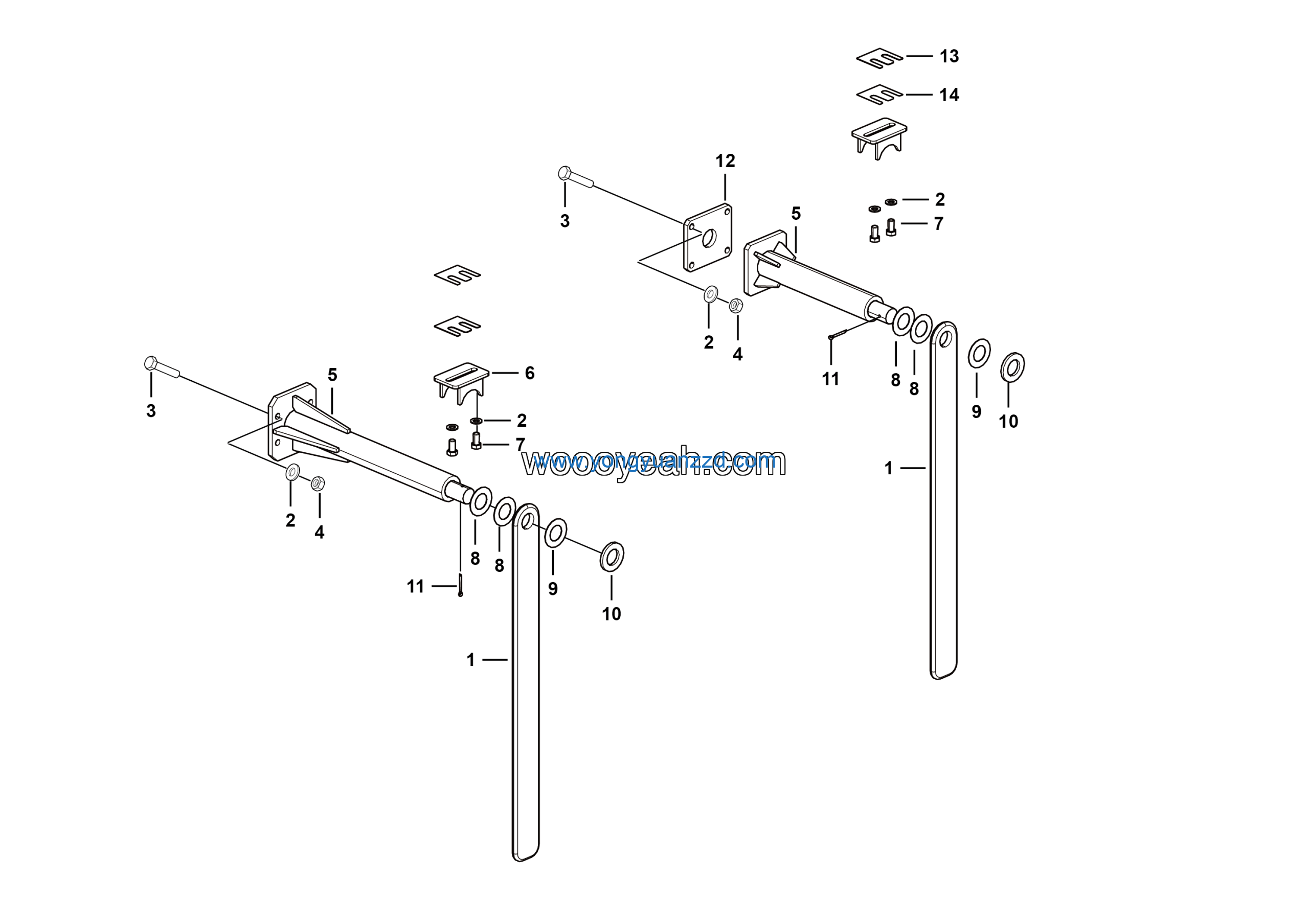

LGMG Off-Highway Dump Truck 2020 – Stone deflector assy – L1700-2717022485
Category: 2020 > Off-Highway Dump Truck > MT86H > M086HWE71
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-42EpZn-300HV | 4015000311 | 4 |
| 2 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 3 | Plate | 27170150311 | 2 |
| 4 | Plate | 27170177262 | 4 |
| 5 | Plate | 27170177252 | 8 |
| 6 | Plate | 27170135082 | 4 |
| 7 | Washer GB97.1-16EpZn-300HV | 4015000181 | 40 |
| 8 | Bolt GB5782-M16*65EpZn-8.8 | 4011000459 | 16 |
| 9 | Nut GB6170-M16EpZn-8 | 4013000016 | 16 |
| 10 | Frame | 27170135262 | 4 |
| 11 | Plate | 27170177272 | 4 |
| 12 | Bolt GB5783-M16*30EpZn-8.8 | 4011000094 | 8 |
| 13 | Plate | 27170157931 | 12 |
| 14 | Plate | 27170157921 | 4 |
