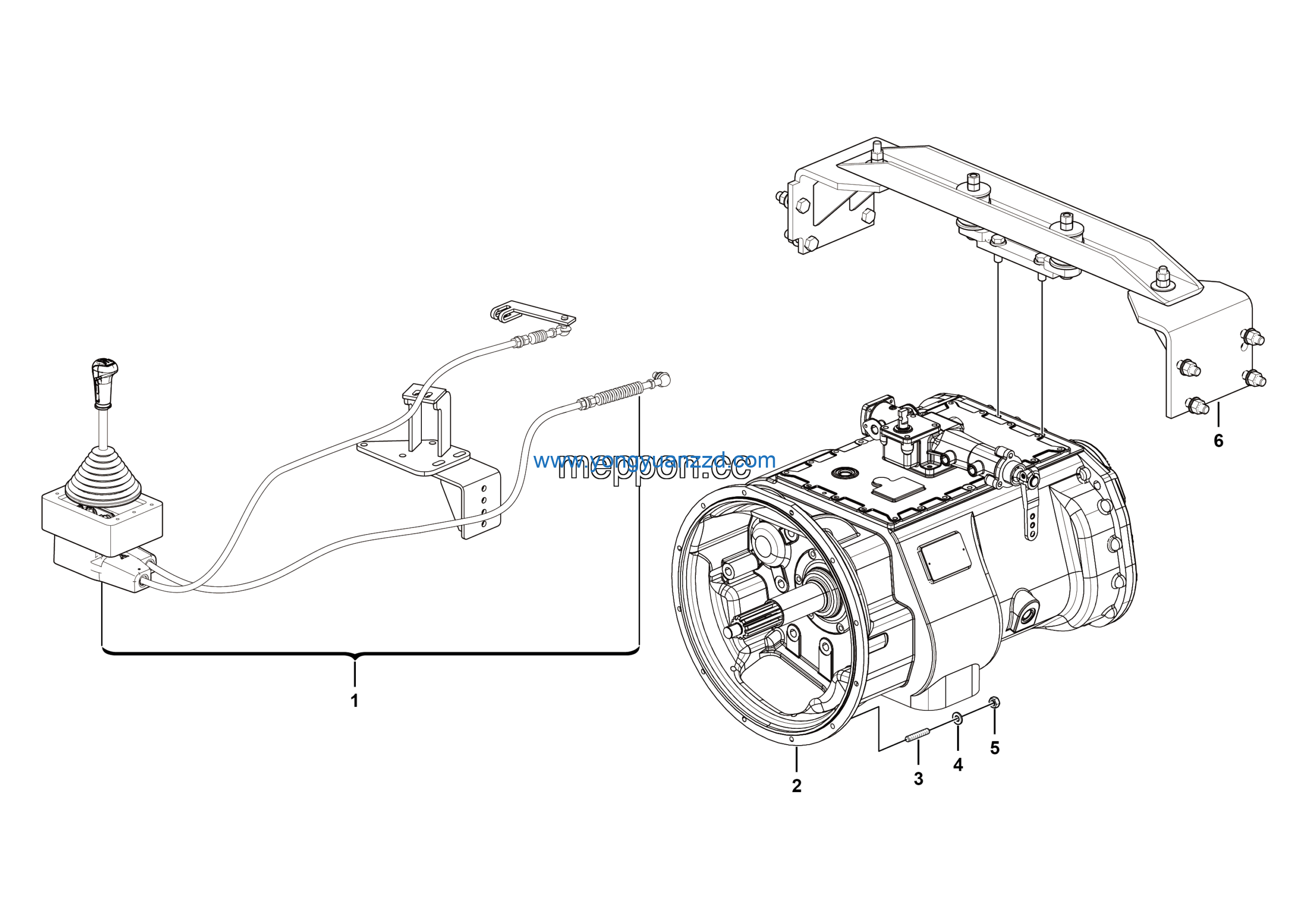

LGMG Off-Highway Dump Truck 2020 – Transmission assy – C0502-2705010520
Category: 2020 > Off-Highway Dump Truck > MT95D > M095DWA89
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Transmission system | 27050105191 | 1 |
| 2 | Transmission box assy 7DS200 | 4110702715 | 1 |
| 3 | STUD | 4110001449 | 12 |
| 4 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
| 5 | Nut GB6170-M10EpZn-8 | 4013000007 | 12 |
| 6 | Transmission anchorage assembly | 27050105211 | 1 |
