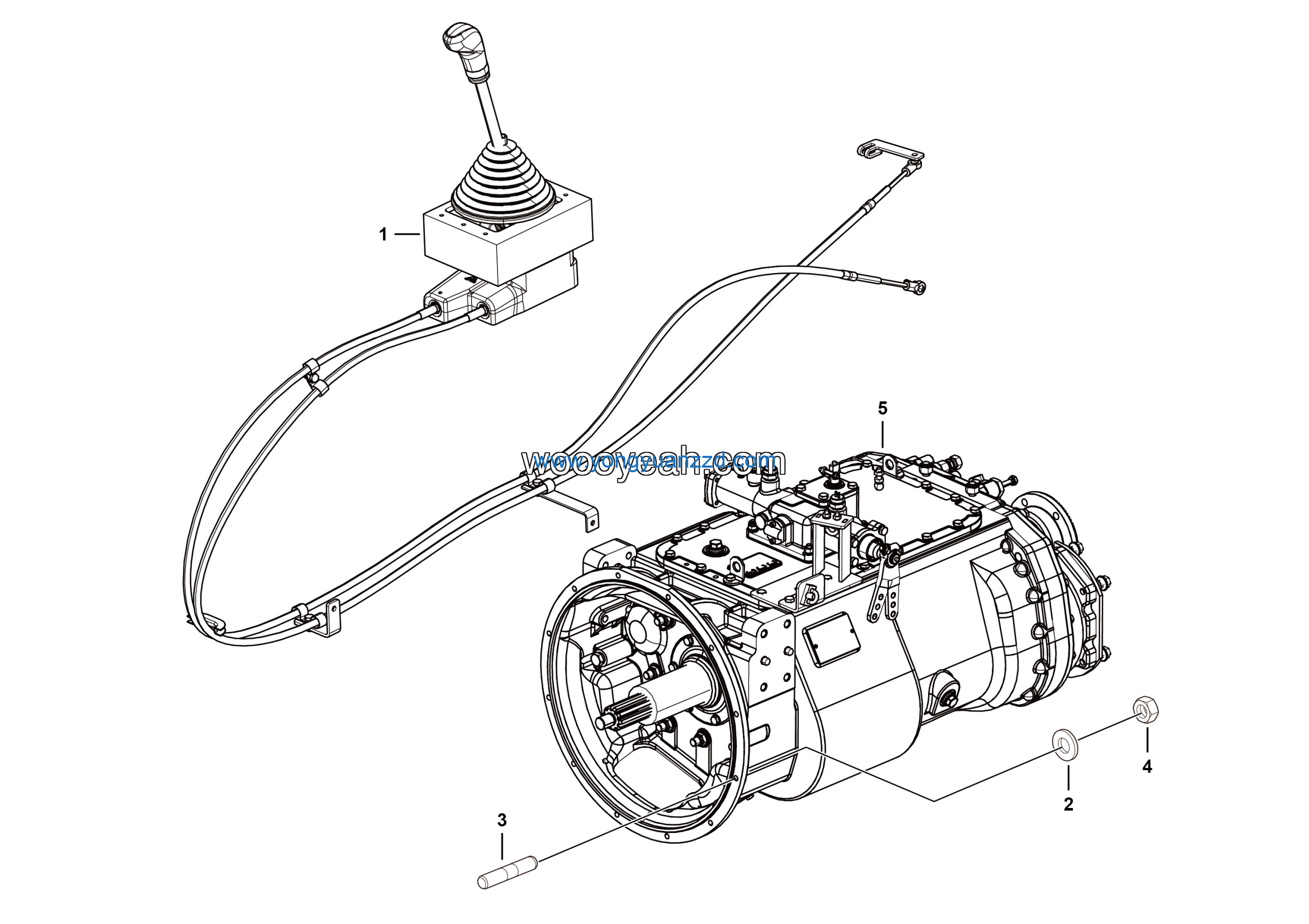

LGMG Off-Highway Dump Truck 2020 – Transmission assy – C0502-2705010797
Category: 2020 > Off-Highway Dump Truck > MT95H > M095HWD11
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Gearbox control assembly | 27050106561 | 1 |
| 2 | Washer GB93-10-65Mn | 4015000025 | 12 |
| 3 | Stud GB899-A M10*30EpZn-8.8 | 4012010108 | 12 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 12 |
| 5 | Transmission box assy 8DS240C | 4110703026 | 1 |
