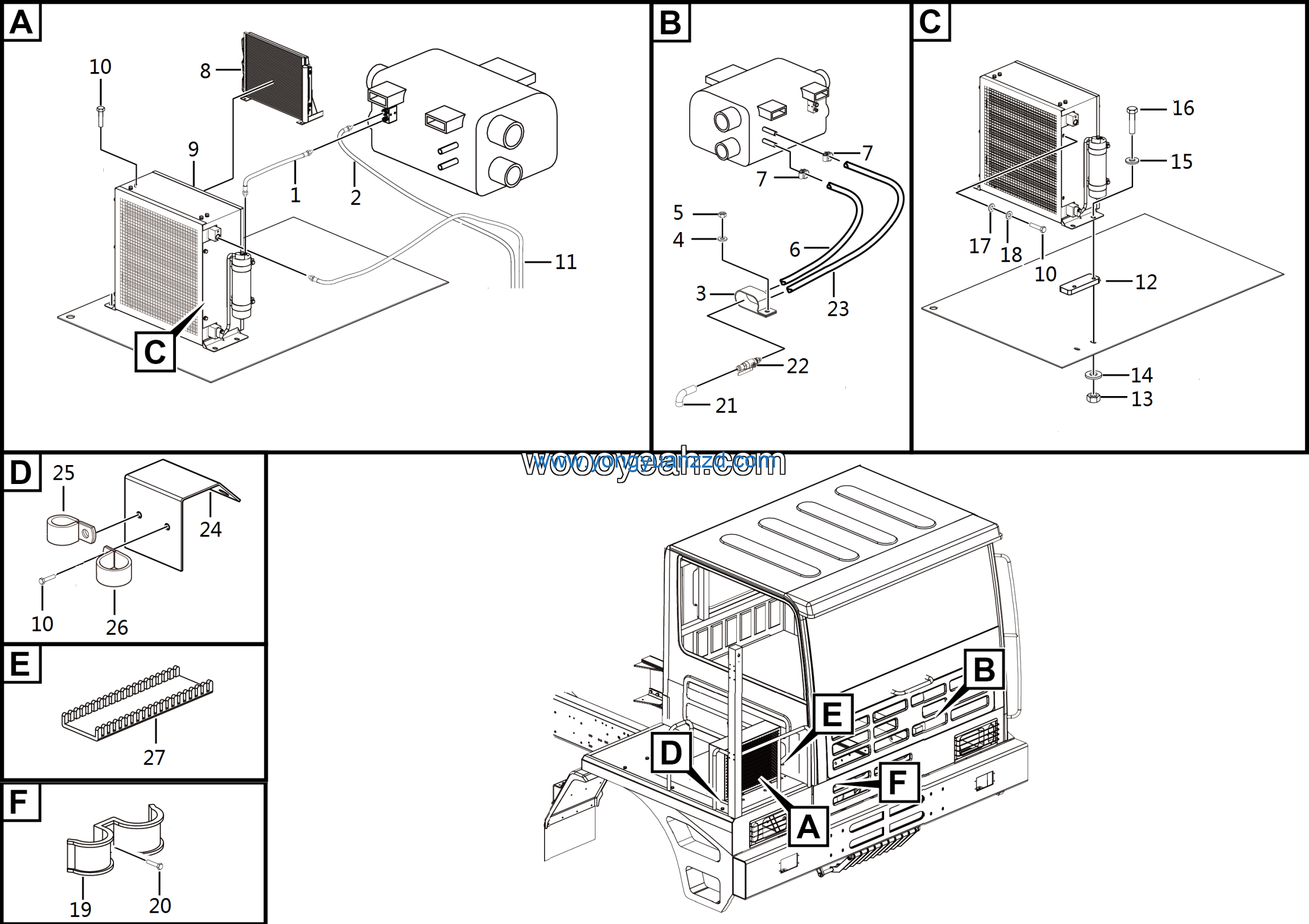

LGMG Off-Highway Dump Truck 2021 – Air conditioner assy – N2102-2721010469.S1A
Category: 2021 > Off-Highway Dump Truck > MT105 > M105HW3A0M001-1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 7 |
| 2 | Pipe（Compressor-condenser） | 4190704889 | 1 |
| 3 | Pipe | 27210104551 | 2 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 5 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 7 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 4 |
| 8 | Washer GB93-6EpZn-65Mn | 4015000213 | 2 |
| 9 | Washer GB97.1-6EpZn-300HV | 4015000207 | 9 |
| 10 | Clamp B | 4190001780 | 4 |
| 11 | Pipe（Compressor-evaporator） | 4190704890 | 1 |
| 12 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 2 |
| 13 | SUPPORT PLATE | 27210104361 | 1 |
| 14 | Valve assembly | 27210103841 | 1 |
| 15 | Intlet pipe of heater | 27210104711 | 1 |
| 16 | Bracket | 4190002389 | 1 |
| 17 | Clamp | 4190002390 | 1 |
| 18 | Clamp | 4190002391 | 1 |
| 19 | Sheath | 27210103441 | 2 |
| 20 | Pipe（Evaporator-reservoir） | 4190704058 | 1 |
| 21 | Double nipple clamp | 27210101701 | 2 |
| 22 | Washer GB96.1-6EpZn-300HV | 4015000198 | 2 |
| 23 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 24 | Water oulet tube of heating | 27210104701 | 1 |
| 25 | Hose clamp JB8870-D32 | 4017000011 | 6 |
| 26 | Condenser assy | 4190001667 | 1 |
| 27 | Shield | 4190002561 | 1 |
