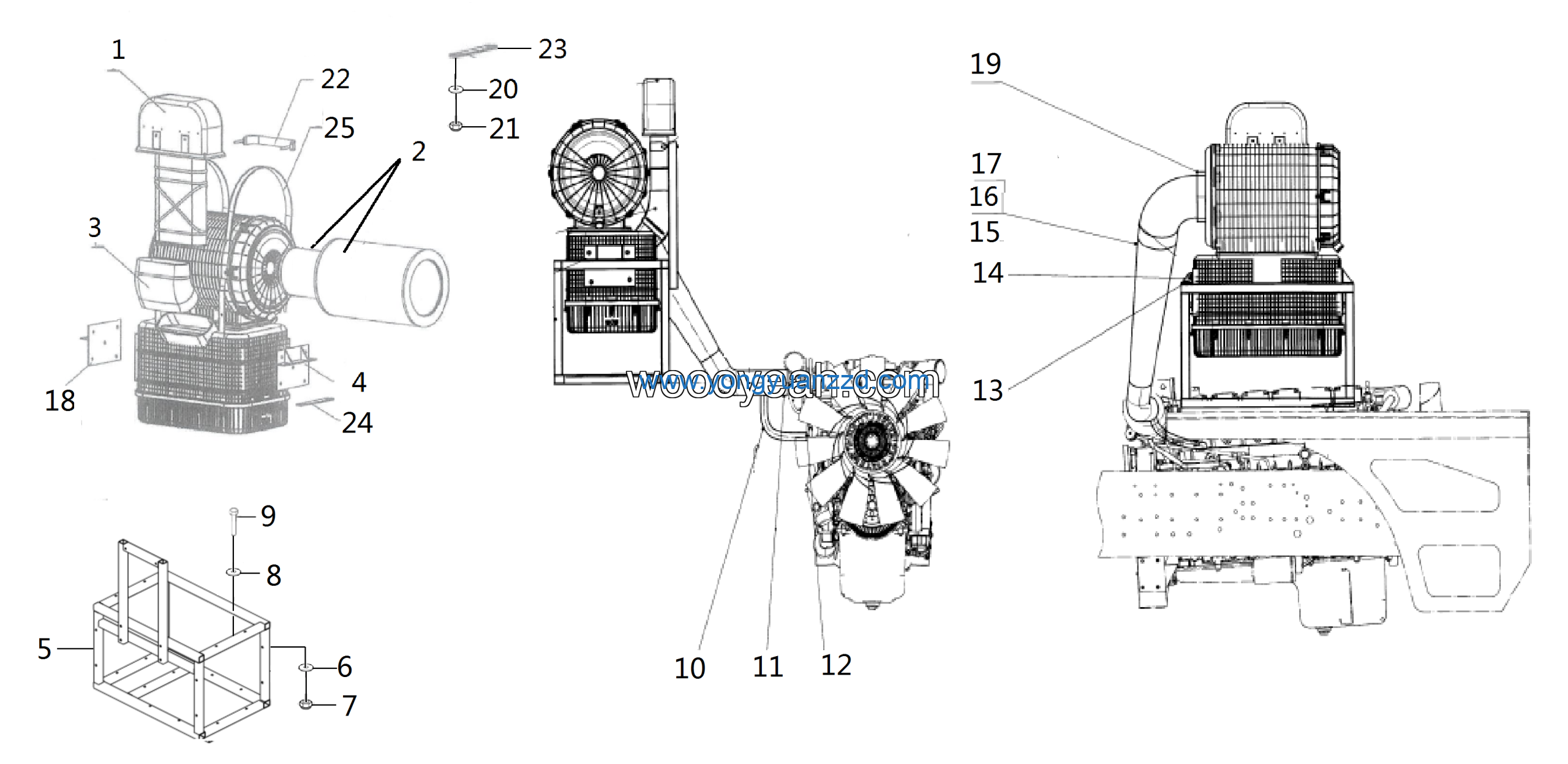

LGMG Off-Highway Dump Truck 2021 – Air filter assy – A1800-2718010528.S1A
Category: 2021 > Off-Highway Dump Truck > MT86H > M086HWAR9
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe | 27180102192 | 1 |
| 2 | No longer used | 4019010001 | 1 |
| 3 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 4 | Bolt GB5782-M12*60EpZn-8.8 | 4011000260 | 4 |
| 5 | Bolt GB5783-M12*20EpZn-8.8 | 4011000087 | 8 |
| 6 | Pipe | 27180105401 | 1 |
| 7 | Vacuum level alarm | 4110001427 | 1 |
| 8 | Wire | 27200107621 | 1 |
| 9 | Oil bath mounting bracket Ⅰ | 4110703255 | 1 |
| 10 | T-bolt clamp φ188-φ196 | 4190002630 | 1 |
| 11 | High level intake assy | 4190704015 | 1 |
| 12 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 13 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 14 | High level intake strap | 4110703257 | 1 |
| 15 | RUBBER PAD | 27180105601 | 1 |
| 16 | Rubber backing plate | 4110703259 | 2 |
| 17 | Oil bath tie | 4110703258 | 2 |
| 18 | Oil bath air filter 3560 | 4190704013 | 1 |
| 19 | Oil bath air intake hose | 4190704016 | 1 |
| 20 | Oil bath mounting bracket Ⅱ | 4110703256 | 1 |
| 21 | Base assembly | 27180105291 | 1 |
| 22 | Washer GB96.1-12EpZn-300HV | 4015000186 | 12 |
| 23 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 12 |
| 24 | Washer GB97.1-12EpZn-300HV | 4015000168 | 20 |
| 25 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 8 |
