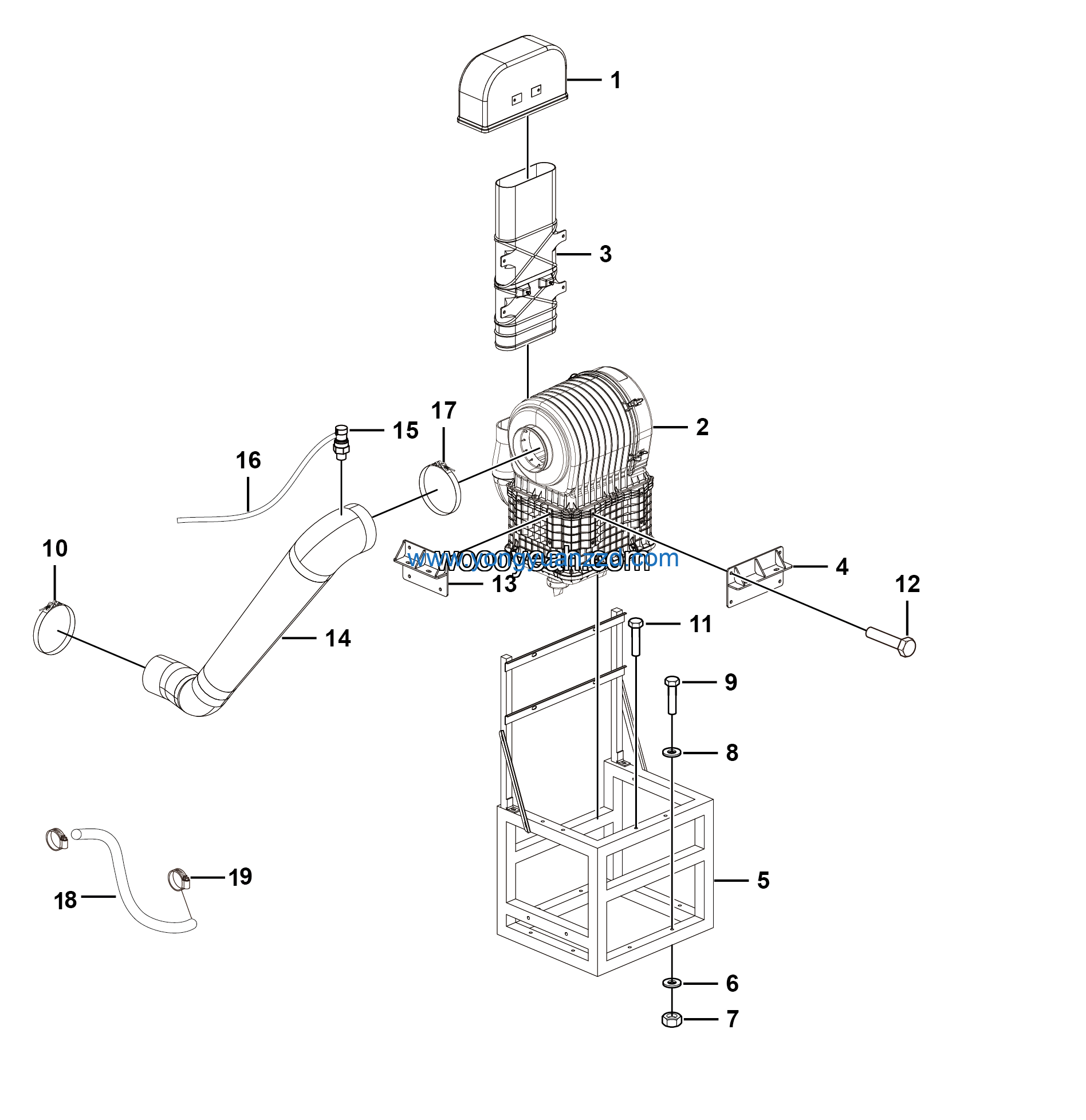

LGMG Off-Highway Dump Truck 2021 – Air filter assy – A1800-2718010633.S
Category: 2021 > Off-Highway Dump Truck > MT86H > M086HW3A0M004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | No longer used | 4019010001 | 1 |
| 2 | Bolt GB5782-M12*75EpZn-8.8 | 4011000874 | 4 |
| 3 | Bolt GB16674.1-M10*25EpZn-12.9 | 4011010295 | 8 |
| 4 | Support assembly ⅱ | 27180103021 | 1 |
| 5 | Air inlet pipe | 27180103441 | 1 |
| 6 | Vacuum level alarm | 4110001427 | 1 |
| 7 | Wire | 27200107621 | 1 |
| 8 | T-bolt clamp φ188-φ196 | 4190002630 | 1 |
| 9 | Pipe | 27180102192 | 1 |
| 10 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 11 | High level intake assy | 4190002593 | 1 |
| 12 | Air filter assy（Donaldson） | 4190002628 | 1 |
| 13 | Connecting hose | 4190002594 | 1 |
| 14 | Support assembly ⅰ | 27180102961 | 1 |
| 15 | Support | 27180105251 | 1 |
| 16 | Washer GB96.1-12EpZn-300HV | 4015000186 | 14 |
| 17 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 12 |
| 18 | Washer GB97.1-12EpZn-300HV | 4015000168 | 10 |
| 19 | Bolt GB5782-M12*120EpZn-8.8 | 4011000054 | 8 |
