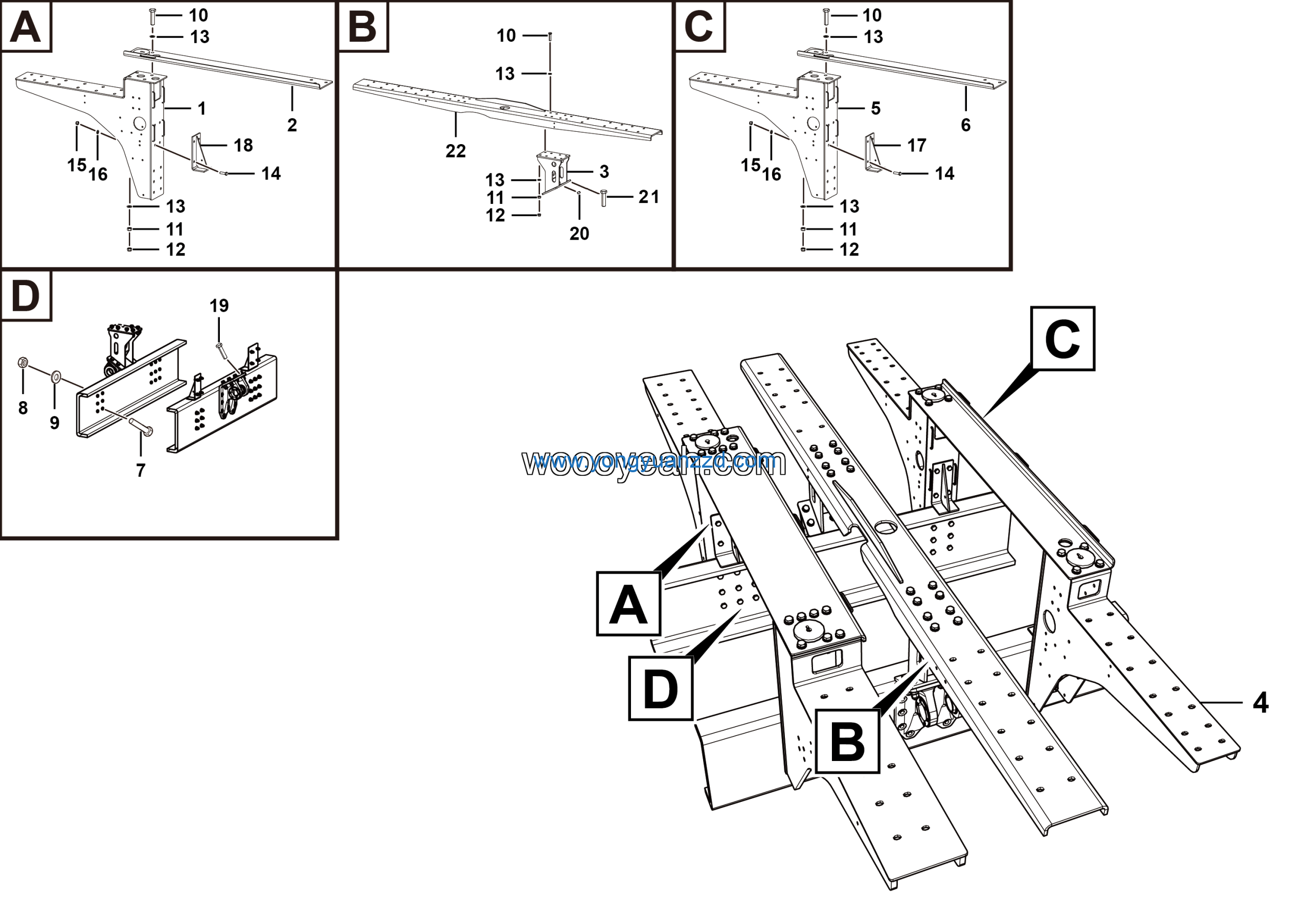

LGMG Off-Highway Dump Truck 2021 – Bench installation assy – I1400-2714015033
Category: 2021 > Off-Highway Dump Truck > MTE108 > C1080W3A0M102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | BOLT GB5786-M18*1.5*70flZnyc-12.9-480 | 4011011530 | 38 |
| 2 | Nut GB6171-M18*1.5flZnyc-12-480 | 4013010257 | 46 |
| 3 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 50 |
| 4 | Washer gb1230-18-45 | 27120105414 | 100 |
| 5 | Bolt GB5786-M14*1.5*45EpZn-8.8 | 4011000876 | 16 |
| 6 | Nut GB6185.2-M14*1.5EpZn-8 | 4013010203 | 16 |
| 7 | Washer GB97.1-14EpZn-300HV | 4015000177 | 16 |
| 8 | Plate | 27360124781 | 2 |
| 9 | Plate | 27140134471 | 2 |
| 10 | Bolt GB5785-M18*1.5*60flZnyc-12.9-480 | 4011010572 | 4 |
| 11 | Front support bracket | 27140150401 | 2 |
| 12 | Cushion block | 27120113681 | 2 |
| 13 | Bolt GB5785-M18*1.5*75flZnyc-12.9-480 | 4011010571 | 8 |
| 14 | Beam | 27140150371 | 1 |
| 15 | Front beam | 27140150341 | 1 |
| 16 | Middle support bracket | 27140150451 | 2 |
| 17 | Later support bracket | 27140150501 | 1 |
| 18 | Later support bracket | 27140150551 | 1 |
| 19 | Later beam | 27140150381 | 1 |
| 20 | Bolt GB5785-M16*1.5*65flZnyc-12.9-480 | 4011010698 | 30 |
| 21 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 30 |
| 22 | Washer GB1230-16EpZn-45 | 4015000001 | 30 |
