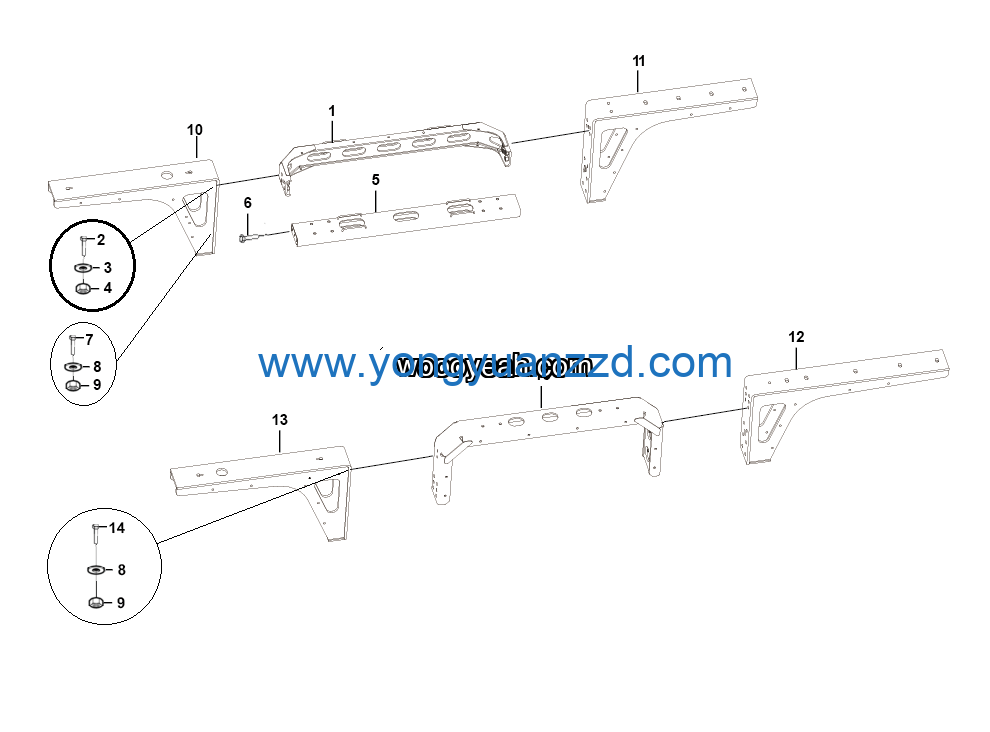

LGMG Off-Highway Dump Truck 2021 – Bench support assy – L3600-2736013108
Category: 2021 > Off-Highway Dump Truck > MT96L > M096LW3A2M000
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27360130251 | 1 |
| 2 | Support | 27360126281 | 1 |
| 3 | Support | 27360130271 | 1 |
| 4 | Support | 27360123221 | 1 |
| 5 | Bolt GB5783-M16*55EpZn-8.8 | 4011000612 | 12 |
| 6 | Support | 27360123171 | 1 |
| 7 | Weldment | 27360131091 | 1 |
| 8 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 16 |
| 9 | Washer GB97.1-12EpZn-300HV | 4015000168 | 22 |
| 10 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 11 | Support | 27360123131 | 1 |
| 12 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 6 |
| 13 | Bolt GB5783-M16*60EpZn-8.8 | 4011000594 | 12 |
| 14 | Washer GB97.1-16EpZn-300HV | 4015000181 | 24 |
| 15 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 24 |
