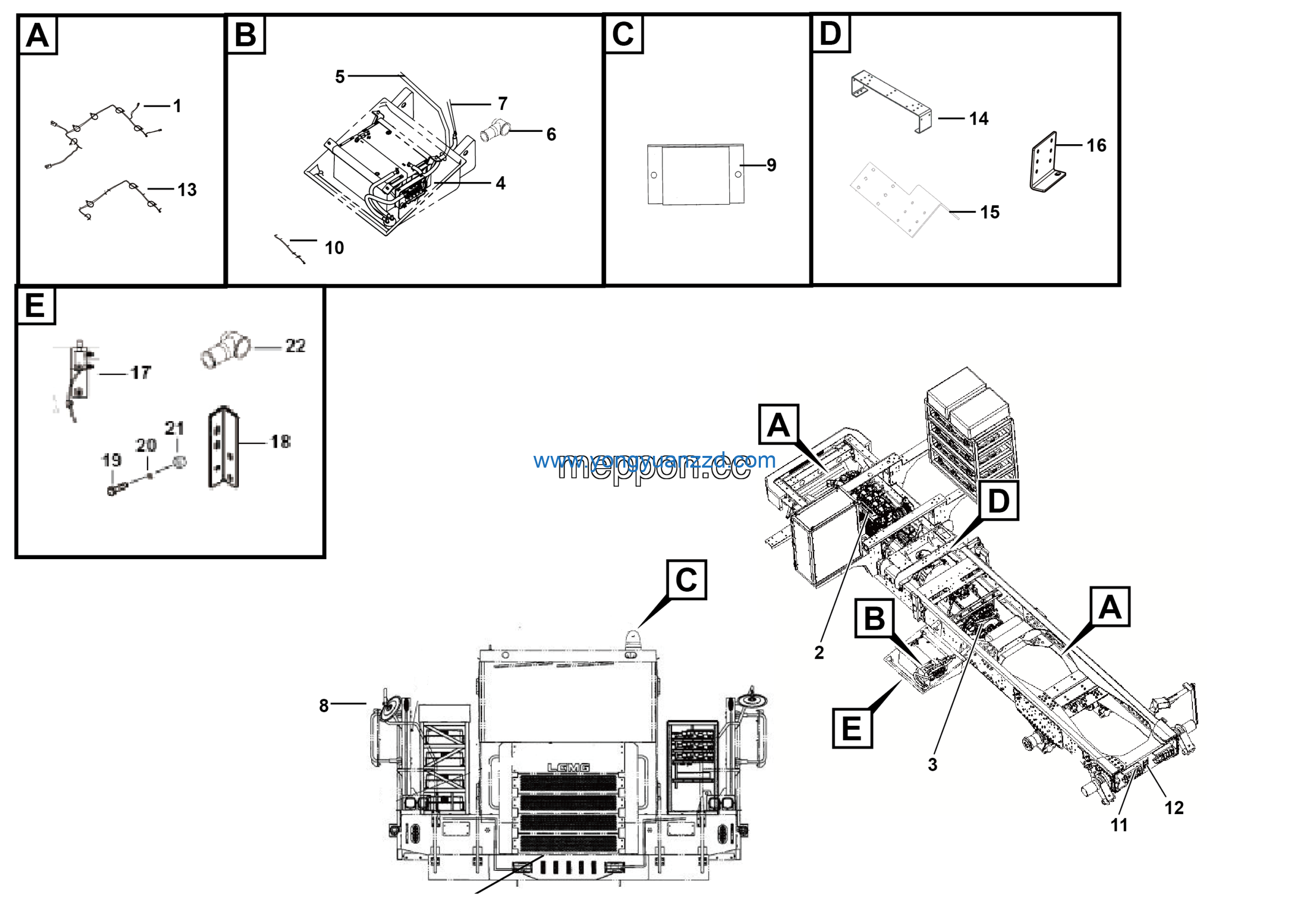

LGMG Off-Highway Dump Truck 2021 – Chassis electric system – K2000-2720012136
Category: 2021 > Off-Highway Dump Truck > MTE108 > C1080W3A0M102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | High voltage line assembly | 27200120811 | 1 |
| 2 | Rear indication module | 27200112101 | 1 |
| 3 | Rear view assembly | 27270100311 | 1 |
| 4 | Wire | 27200107611 | 1 |
| 5 | Plate | 27200113081 | 1 |
| 6 | High-tension line bracket | 27200113131 | 1 |
| 7 | High voltage bracket for driving motor | 27200121341 | 1 |
| 8 | Cargo lifting switch XJK-010-09 | 4130000641 | 1 |
| 9 | Plate | 27200113261 | 1 |
| 10 | Bolt GB5782-M8*50EpZn-8.8 | 4011000223 | 2 |
| 11 | Frame wire harness | 27200121331 | 1 |
| 12 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 13 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 14 | Black battery cable sheath | 26370002441 | 2 |
| 15 | Motor electrical system | 27200120831 | 1 |
| 16 | Frame central electrical module | 27200107561 | 1 |
| 17 | Electrical module | 27200110631 | 1 |
| 18 | Wire | 27200107751 | 1 |
| 19 | Red battery cable sheath | 26370002451 | 1 |
| 20 | Battery wire p70*800 | 27200105491 | 1 |
| 21 | PLATE | 27200109171 | 1 |
| 22 | Cargo tank | 27140133211 | 1 |
