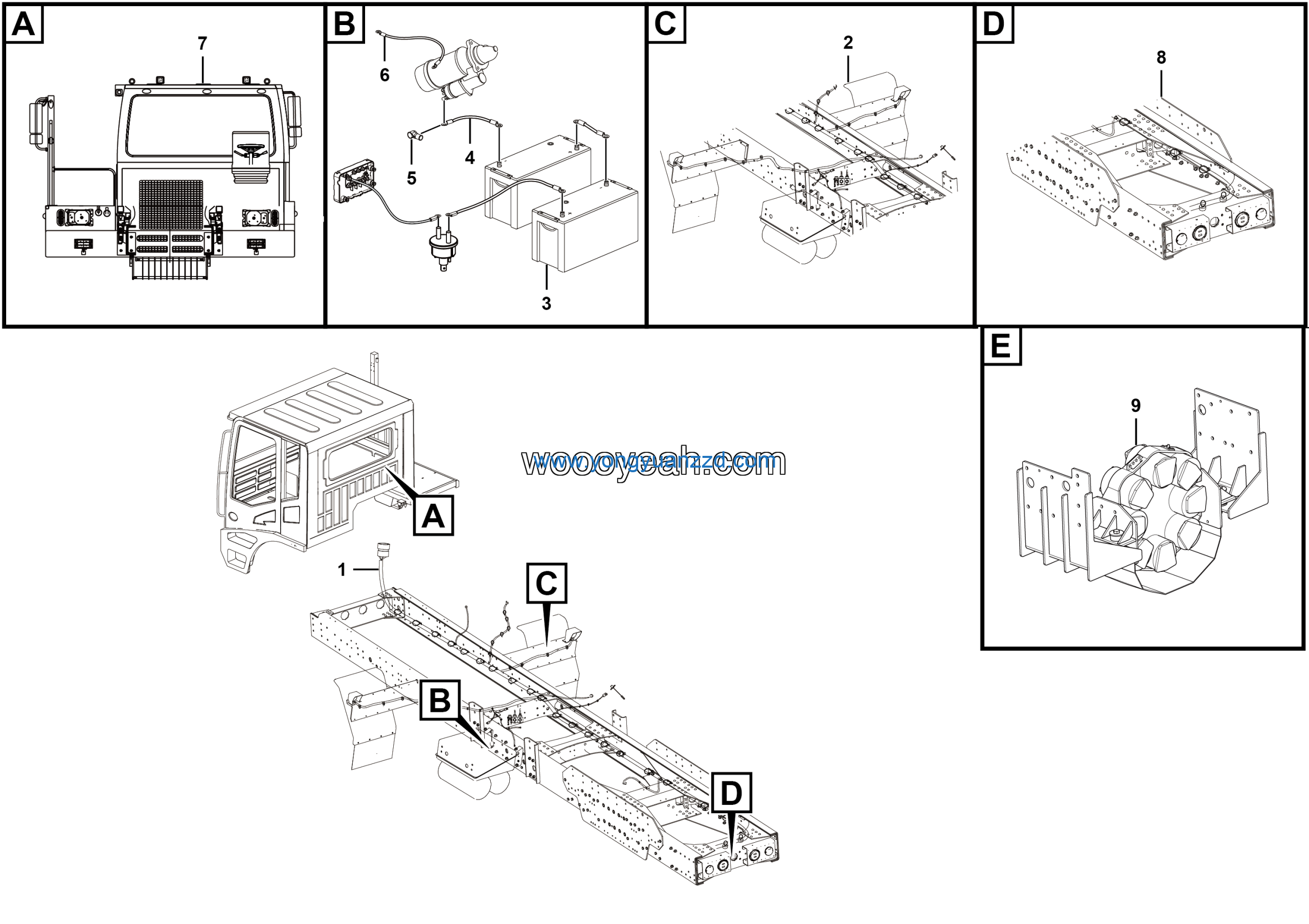

LGMG Off-Highway Dump Truck 2021 – Chassis electric system – K2700-2720011241.S
Category: 2021 > Off-Highway Dump Truck > MT86D > M086DWAB8
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Frame wire | 27200110802 | 1 |
| 2 | Frame central electrical module | 27200107521 | 1 |
| 3 | Electrical module | 27200107511 | 1 |
| 4 | Battery wire p70*3900 | 27200106551 | 1 |
| 5 | Red battery cable sheath | 26370002451 | 1 |
| 6 | Wire p70*550 | 27200111461 | 1 |
| 7 | Electrical module | 27200108161 | 1 |
| 8 | Signal module | 27200107531 | 1 |
| 9 | Telma retarder electricity assembly | 27370102941 | 1 |
