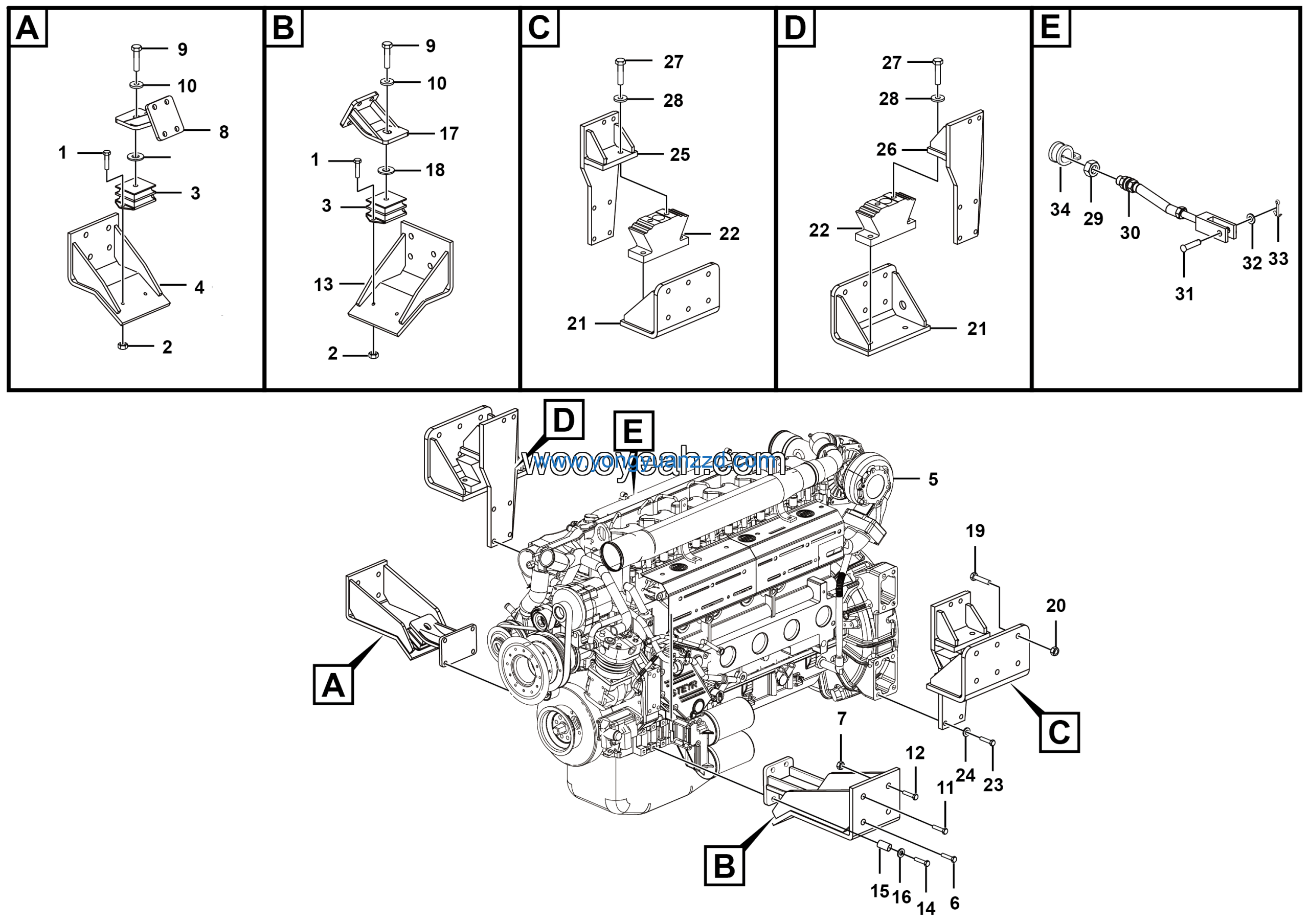

LGMG Off-Highway Dump Truck 2021 – Engine assy – A0102-2701011567
Category: 2021 > Off-Highway Dump Truck > MT86H > M086HWB77
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 2 | Bolt GB5783-M14*55flZnyc-12.9-480 | 4011010548 | 1 |
| 3 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 4 |
| 4 | Frame | 27010109811 | 1 |
| 5 | Bolt GB5782-M12*55flZnyc-12.9-480 | 4011010550 | 8 |
| 6 | Sleeve | 27010104781 | 8 |
| 7 | Washer GB1230-12EpZn-45 | 4015000288 | 8 |
| 8 | ENGINE LEFT FRONT ANCHORAGE | 27010104221 | 1 |
| 9 | Trimmed gasket | 27010106821 | 2 |
| 10 | Bolt GB5782-M16*60EpZn-8.8 | 4011000068 | 8 |
| 11 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 12 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
| 13 | Engine back seat | 27010101732 | 2 |
| 14 | RR engine mount cushion | 4110000296 | 2 |
| 15 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 12 |
| 16 | Washer GB1230-14EpZn-45 | 4015000358 | 12 |
| 17 | ENGINE LEFT REAR FRAME | 27010101763 | 1 |
| 18 | ENGINE BACK RIGHT RAME | 27010101813 | 1 |
| 19 | Washer GB1230-16-45 | 4015010101 | 8 |
| 20 | Bolt GB5786-M16*1.5*45flZnyc-12.9-480 | 4011010535 | 8 |
| 21 | Nut GB6170-M6EpZn-8 | 4013000028 | 1 |
| 22 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 23 | Throttle cable assy | 4110001883 | 1 |
| 24 | Pin GB882-B6*16EpZn-35 | 4016010111 | 1 |
| 25 | Washer GB97.1-6EpZn-300HV | 4015000207 | 1 |
| 26 | Pin GB91-1.6*16EpZn-Q235A | 4016000107 | 1 |
| 27 | Pipe clamp | 26370001211 | 1 |
| 28 | FR suspension cushion | 4110000331 | 2 |
| 29 | Frame | 27010109831 | 1 |
| 30 | Engine WD12.420（Low speed,High current） | 4110001574 | 1 |
| 31 | BOLT GB5783-M14*65flZnyc-12.9-480 | 4011010546 | 3 |
| 32 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 8 |
| 33 | ENGINE RIGHT FRONT ANCHORAGE | 27010104271 | 1 |
| 34 | Bolt GB5786-M12*1.5*30flZnyc-12.9-480 | 4011010566 | 2 |
