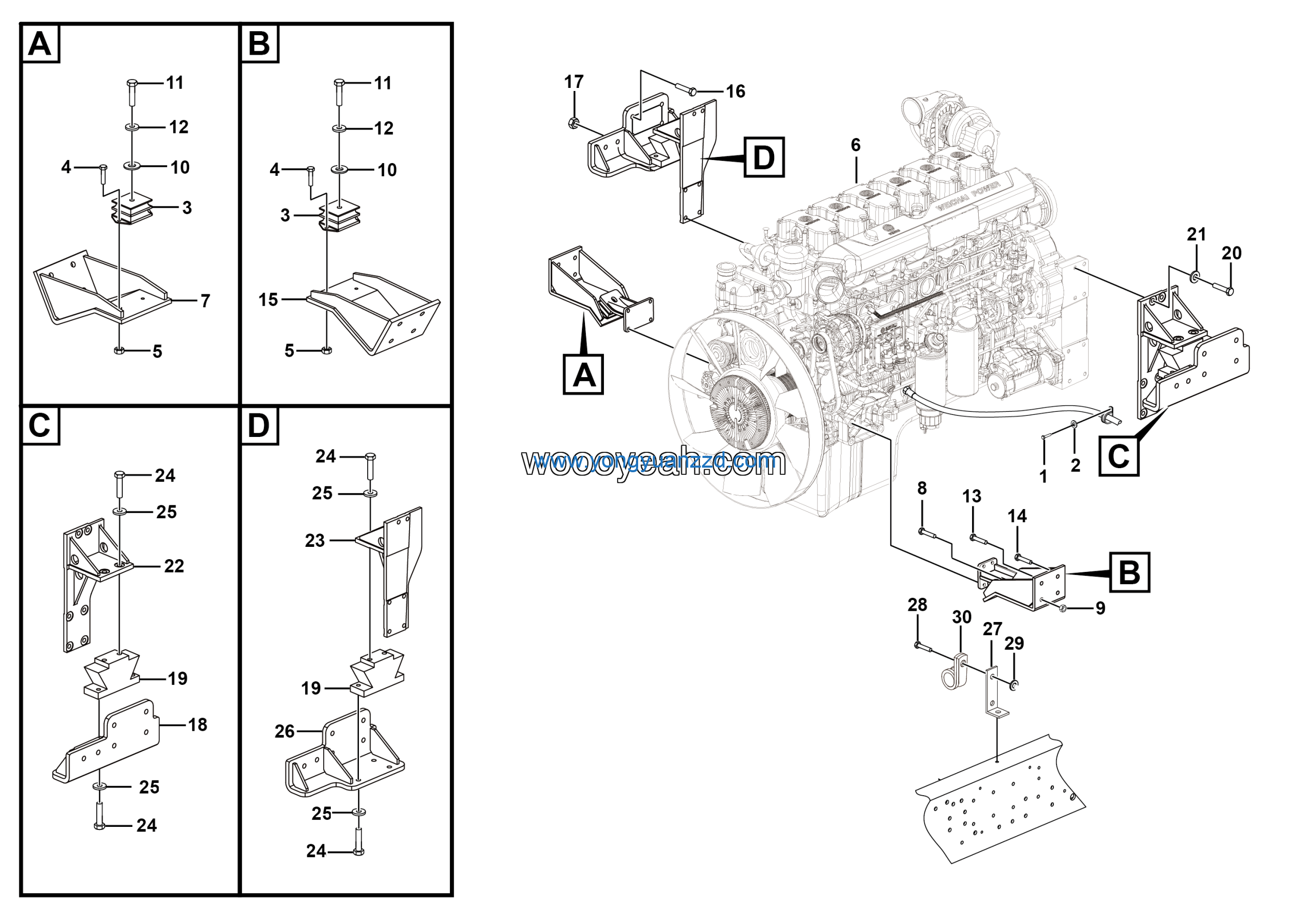

LGMG Off-Highway Dump Truck 2021 – Engine assy – A0105-2701011570
Category: 2021 > Off-Highway Dump Truck > MT86H > M086HW3A0M002-1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Trimmed gasket | 27010106821 | 2 |
| 2 | Bolt GB5786-M12*1.5*30flZnyc-12.9-480 | 4011010566 | 2 |
| 3 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 4 | Bolt GB5783-M14*55flZnyc-12.9-480 | 4011010548 | 1 |
| 5 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 4 |
| 6 | Engine front left leg | 27010109592 | 1 |
| 7 | Bolt GB5783-M16*60flZnyc-12.9-480 | 4011010570 | 12 |
| 8 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 12 |
| 9 | PLATE | 27010116612 | 1 |
| 10 | RR engine mount cushion | 4110000296 | 2 |
| 11 | BOLT GB5783-M10*20EPZN-8.8 | 4110000081 | 1 |
| 12 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 12 |
| 13 | Washer GB1230-14EpZn-45 | 4015000358 | 12 |
| 14 | PLATE | 27010117132 | 1 |
| 15 | LEFT SIDE PLATE ASSEMBLY | 27010117162 | 1 |
| 16 | Washer GB1230-16-45 | 4015010101 | 8 |
| 17 | Bolt GB5786-M16*1.5*45flZnyc-12.9-480 | 4011010535 | 8 |
| 18 | CAB ASSEMBLY | 27010116622 | 1 |
| 19 | Plate | 27010113351 | 1 |
| 20 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 1 |
| 21 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 22 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 23 | Clamp | 26370001911 | 1 |
| 24 | FR suspension cushion | 4110000331 | 2 |
| 25 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 26 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 27 | Engine assy WP12G460E310 | 4110702890 | 1 |
| 28 | Engine front right leg | 27010109622 | 1 |
| 29 | BOLT GB5783-M14*65flZnyc-12.9-480 | 4011010546 | 3 |
| 30 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 8 |
