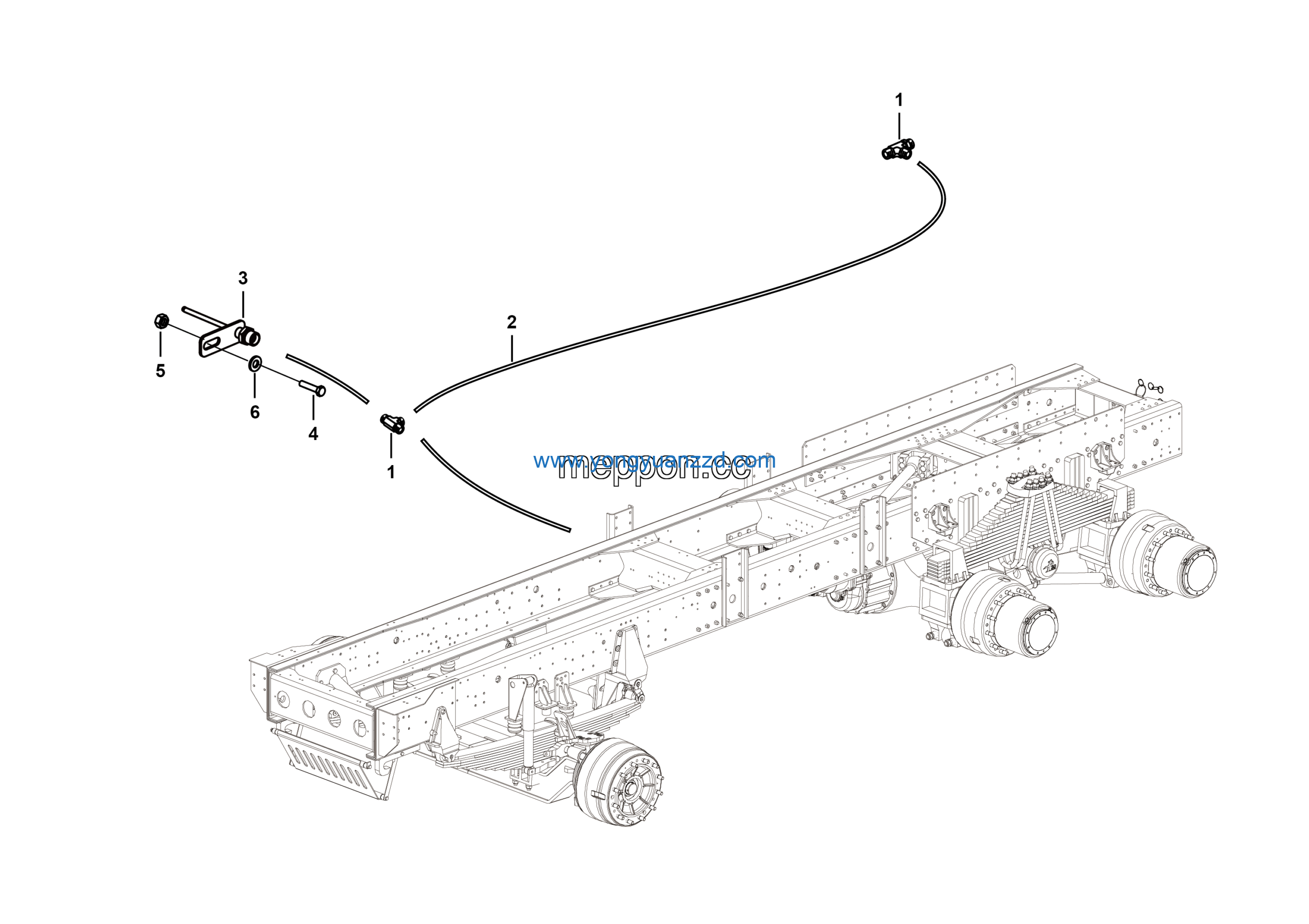

LGMG Off-Highway Dump Truck 2024 – Front axle spray – J3800-2738010322.S1A
Category: 2024 > Off-Highway Dump Truck > MT96L > M096LW3A0M312
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | T-Tee joint 3-NW9 | 4120000189 | 2 |
| 2 | Front axle colding water pipe | 27380102421 | 1 |
| 3 | Spray-head assembly | 27380100462 | 2 |
| 4 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 5 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
