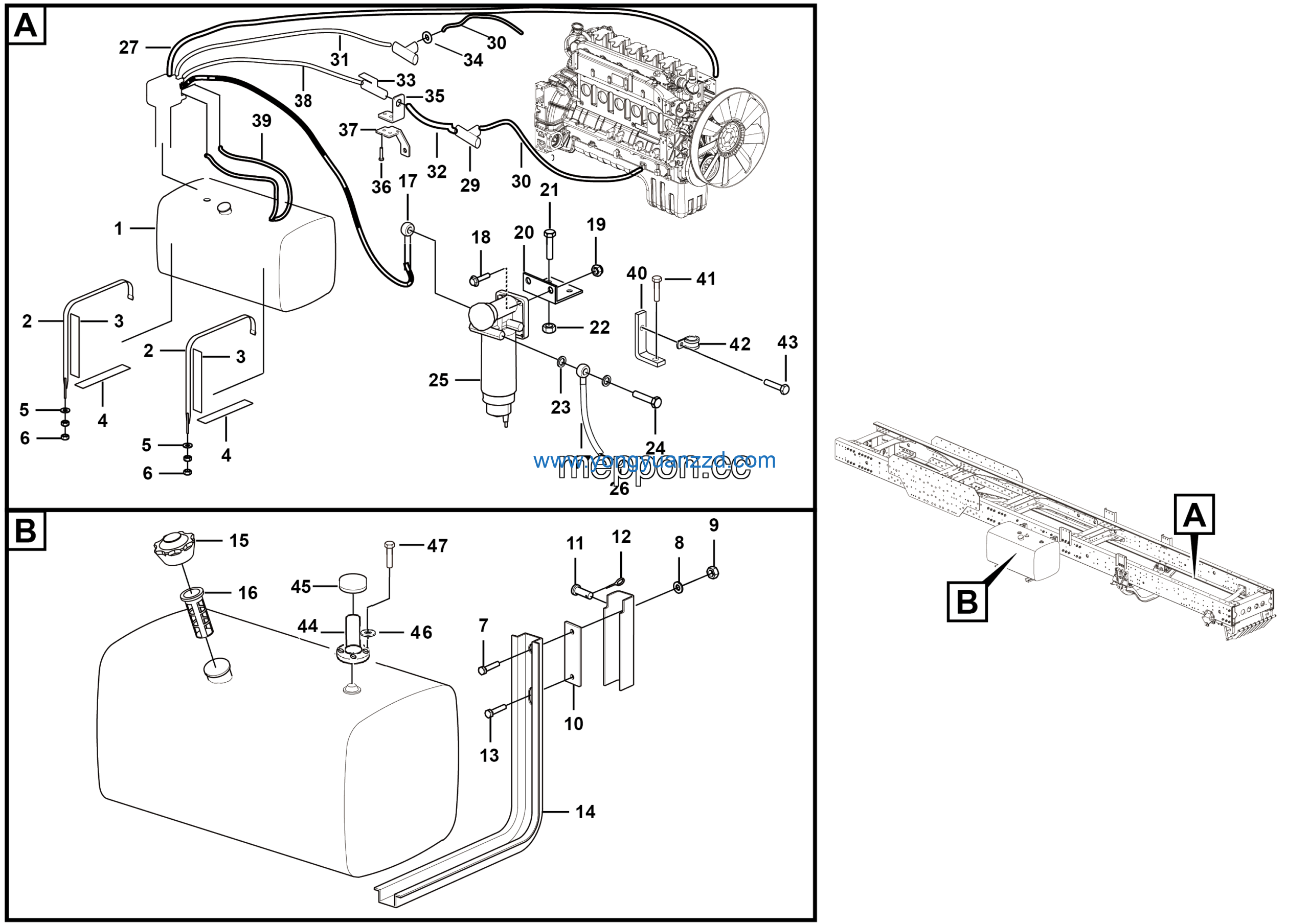

LGMG Off-Highway Dump Truck 2021 – Fuel tank assy – A0200-2702010471
Category: 2021 > Off-Highway Dump Truck > MT105 > M1050WA11
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fixed plate | 27020101021 | 3 |
| 2 | Pin | 4110000120 | 3 |
| 3 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 3 |
| 4 | Bolt GB5783-M16*70EpZn-10.9 | 4011010204 | 3 |
| 5 | Fuel tank bracket assy | 4110000118 | 3 |
| 6 | Aluminium oil box cover | 4049010004 | 1 |
| 7 | Fuel sieve | 4110000046 | 1 |
| 8 | Fuel pipe | 27020104321 | 2 |
| 9 | Bolt GB16674.1-M12*45EpZn-8.8 | 4011000467 | 2 |
| 10 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 11 | Dual chamber fuel tank 650L | 4110703024 | 1 |
| 12 | Support | 27020104141 | 1 |
| 13 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 4 |
| 14 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 10 |
| 15 | Washer JB1002-16-T2 | 4015000120 | 5 |
| 16 | Bolt JB999-M16*1.5*35EpZn-35 | 4011000318 | 2 |
| 17 | Engine fuel filter | 4110702781 | 1 |
| 18 | Hose clamp JB8870-D20 | 4017000010 | 10 |
| 19 | Fuel pipe ii | 27020102631 | 1 |
| 20 | String casing | 27140105021 | 4 |
| 21 | Three direction pipe | 27020104481 | 2 |
| 22 | Cable tie assy | 4110000119 | 3 |
| 23 | Pipe | 27020104701 | 2 |
| 24 | Pipe | 27020104691 | 1 |
| 25 | Pipeⅱ | 27020104682 | 1 |
| 26 | Valve assembly | 27210103841 | 1 |
| 27 | Hose clamp JB8870-D32 | 4017000011 | 8 |
| 28 | Ball support | 27210104091 | 1 |
| 29 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 2 |
| 30 | Support ⅱ | 27020104571 | 1 |
| 31 | Pipe ⅰ | 27020104672 | 1 |
| 32 | Pipe | 27020104661 | 2 |
| 33 | Flap | 4110000121 | 3 |
| 34 | Plate | 27160104461 | 3 |
| 35 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 3 |
| 36 | Pipe clamp | 26370001951 | 4 |
| 37 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 38 | Breathable cap connecting flange | 4110001889 | 1 |
| 39 | Breathable cap | 4110001730 | 1 |
| 40 | Washer GB97.1-5EpZn-300HV | 4015000110 | 1 |
| 41 | Screw GB70.1-M5*16EpZn-8.8 | 4014000170 | 1 |
| 42 | Flap | 4110000122 | 6 |
| 43 | Washer GB97.1-16EpZn-300HV | 4015000181 | 3 |
| 44 | Nut GB6170-M16EpZn-8 | 4013000016 | 6 |
| 45 | Bolt GB5783-M16*60EpZn-10.9 | 4011010205 | 3 |
| 46 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 47 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
