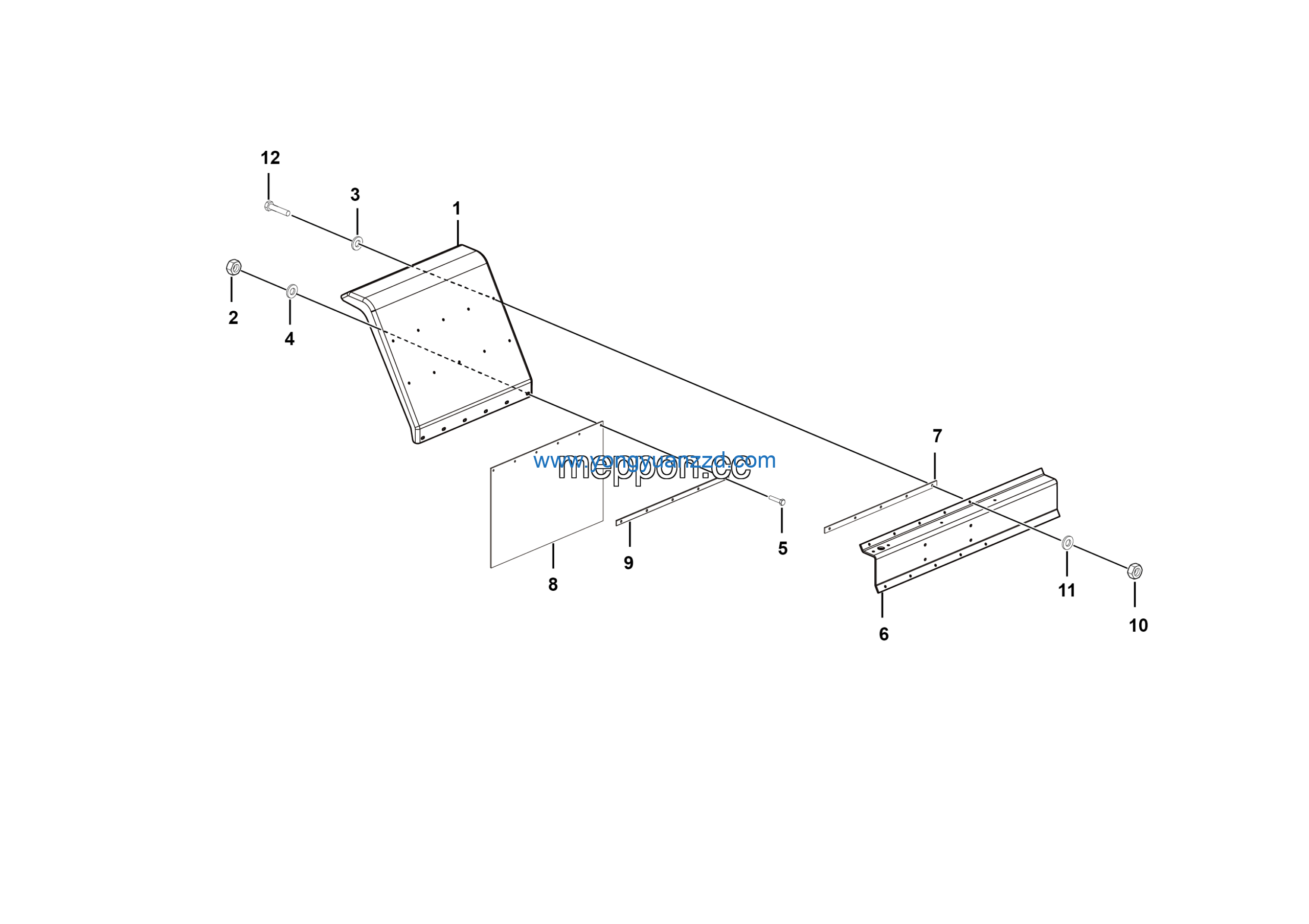

LGMG Off-Highway Dump Truck 2021 – Left mudguard assy – L3600-2736011391
Category: 2021 > Off-Highway Dump Truck > MT86H > M086HWA25
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 6 |
| 2 | Washer GB96.1-8EpZn-300HV | 4015000256 | 6 |
| 3 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 6 |
| 4 | Left mudguard tile | 27360113931 | 1 |
| 5 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 10 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 10 |
| 7 | Washer GB96.1-10EpZn-300HV | 4015000197 | 10 |
| 8 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 10 |
| 9 | Support | 27360123491 | 1 |
| 10 | Plate | 27360113991 | 2 |
| 11 | Rubber | 27360114011 | 1 |
| 12 | Plate | 27360114021 | 1 |
