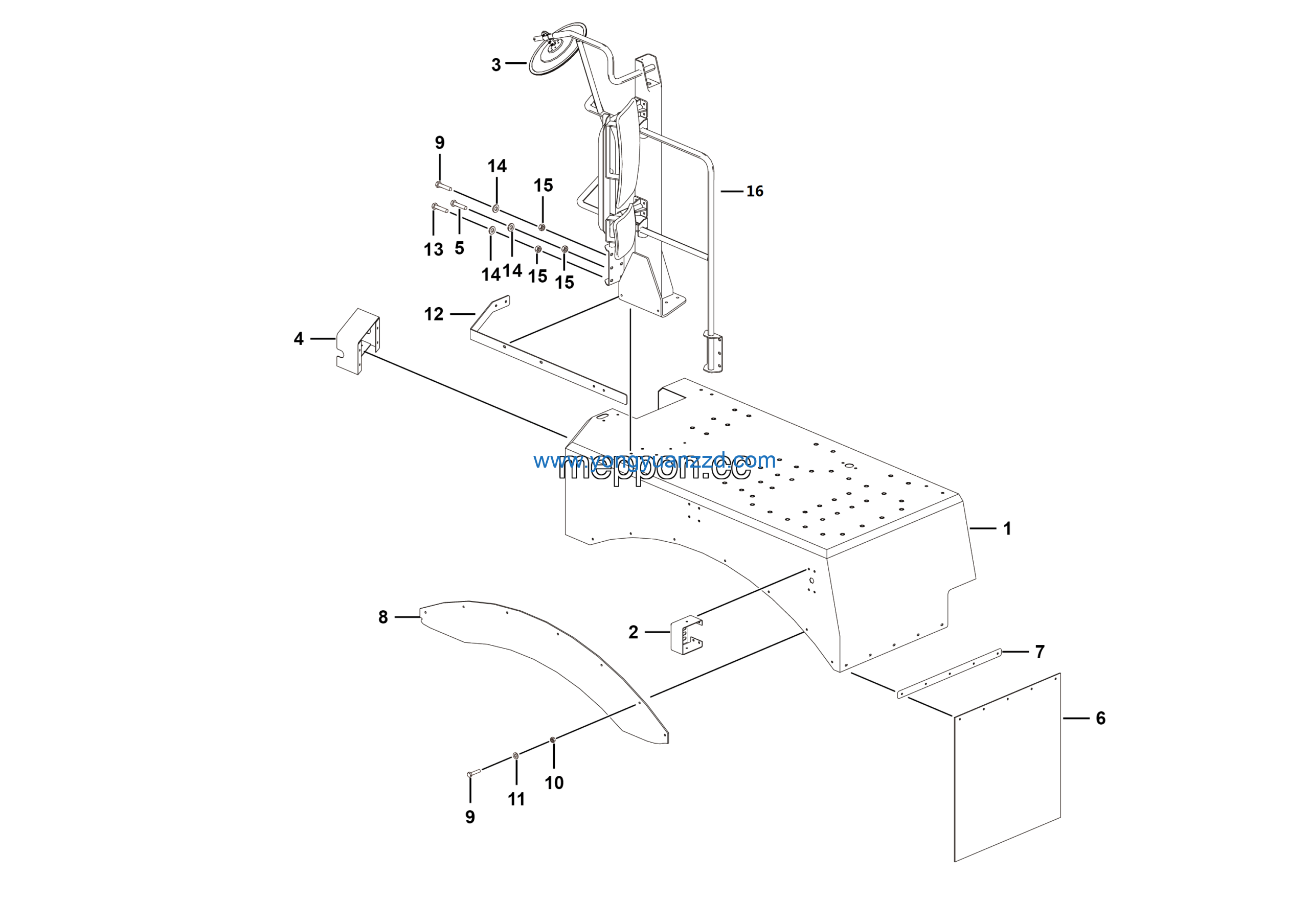

LGMG Off-Highway Dump Truck 2021 – Left platform assy – L3603-2736013269.S1B
Category: 2021 > Off-Highway Dump Truck > MTE108 > C1080W3A0M101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M10EpZn-8 | 4013000007 | 15 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 15 |
| 3 | PIPE | 27360115231 | 1 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 17 |
| 5 | Washer GB96.1-10EpZn-300HV | 4015000197 | 30 |
| 6 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 25 |
| 7 | Handrail welding assembly | 27360124371 | 1 |
| 8 | Platform welding | 27360132701 | 1 |
| 9 | Support | 27360111141 | 1 |
| 10 | Right mirror assy | 27360108841 | 1 |
| 11 | Plate | 27360126373 | 1 |
| 12 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 6 |
| 13 | FIRE EXTINGUISHER TRESTLE | 27360115211 | 1 |
| 14 | Plate | 27360115221 | 1 |
| 15 | Left wheel cover | 27360108021 | 1 |
| 16 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 17 |
