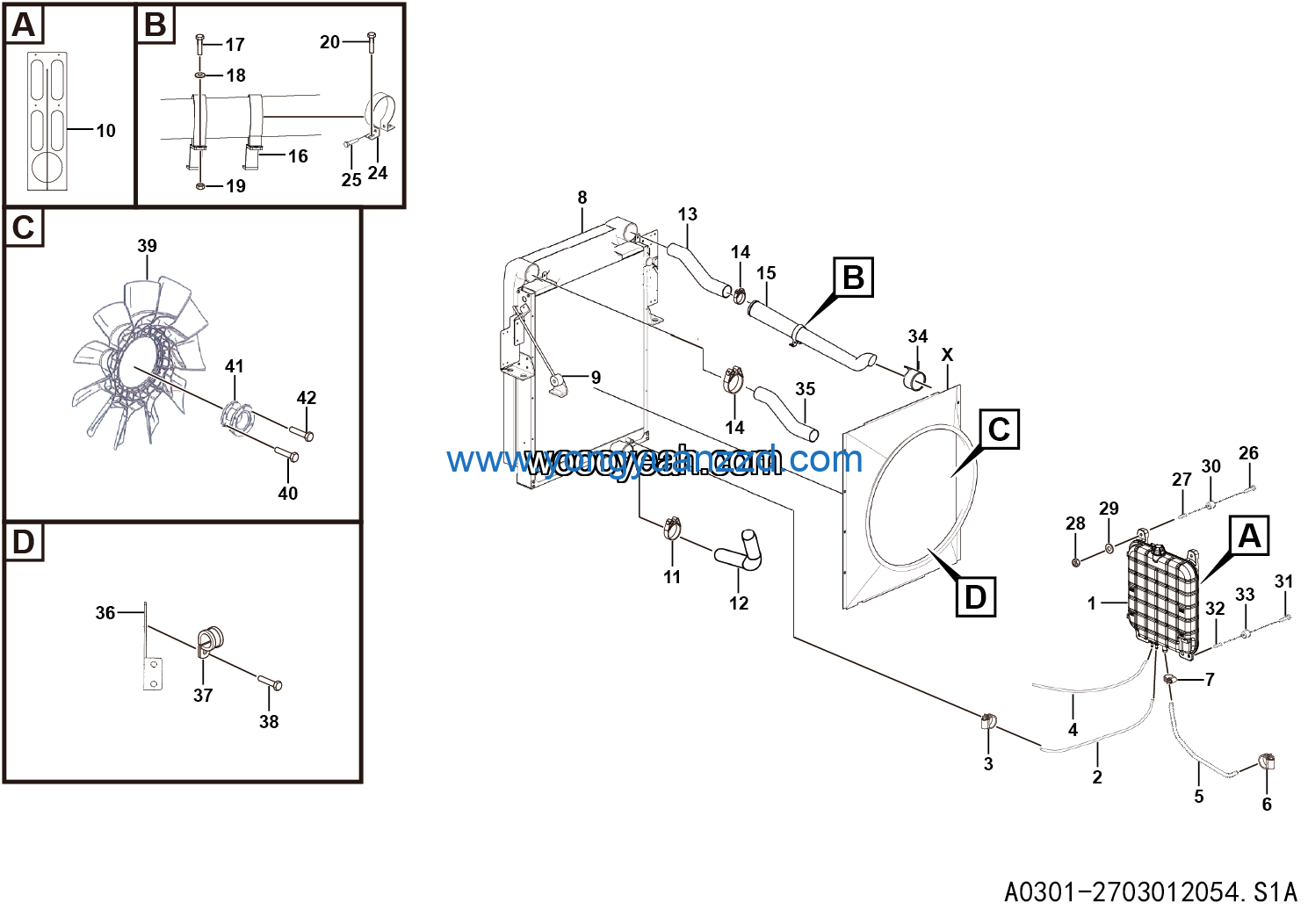

LGMG Off-Highway Dump Truck 2021 – Main raditor assy – A0301-2703012054.S1A
Category: 2021 > Off-Highway Dump Truck > MT105 > M105NV3A0A03
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Support | 27030120461 | 1 |
| 2 | No longer used | 4019010101 | 4 |
| 3 | Pipe | 27030117751 | 1 |
| 4 | Pipe | 27030118581 | 1 |
| 5 | No longer used | 4019010211 | 6 |
| 6 | Pipe | 27030117711 | 1 |
| 7 | Support | 27030117731 | 2 |
| 8 | Bolt GB5782-M8*55EpZn-8.8 | 4011000415 | 2 |
| 9 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 10 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 12 |
| 11 | Expansion water tank assy LG11-PZSX-01 | 4110703210 | 1 |
| 12 | Bolt GB5783-M10*25flZnyc-10.9-480 | 4011010845 | 2 |
| 13 | Bolt GB5782-M12*80EpZn-8.8 | 4011000334 | 2 |
| 14 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 15 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 16 | Support i | 27030105861 | 2 |
| 17 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 18 | No longer used | 4011010652 | 2 |
| 19 | Pipeⅱ | 27030117801 | 2 |
| 20 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 21 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 22 | Air pipe | 27030102021 | 1 |
| 23 | Rubber | 27030117851 | 2 |
| 24 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 2 |
| 25 | Pipeⅰ | 27030117791 | 2 |
| 26 | Rubber | 27030117841 | 2 |
| 27 | Pipe | 27030115621 | 1 |
| 28 | Pipe | 27030118591 | 1 |
| 29 | Support | 27030117741 | 1 |
| 30 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 2 |
| 31 | Pipe clamp | 26370001921 | 2 |
| 32 | Silicone clutch fan LG-FS-01 | 4110703218 | 1 |
| 33 | No longer used | 4190000343 | 4 |
| 34 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 6 |
| 35 | Connector | 27030117811 | 1 |
| 36 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 6 |
| 37 | Pipe ⅰ | 27030107561 | 1 |
| 38 | Pipe | 27030120501 | 1 |
| 39 | Hose clamp JB8870-D50 | 4017000009 | 1 |
| 40 | Hose clamp JB8870-D32 | 4017000011 | 1 |
| 41 | Radiator assy M9115557 | 4110703211 | 1 |
| 42 | Cooler assemble support | 27030109661 | 1 |
