LGMG Off-Highway Dump Truck 2021 – Motor electrical system – K2000-2720012083
Category: 2021 > Off-Highway Dump Truck > MTE108 > C1080W3A0M101

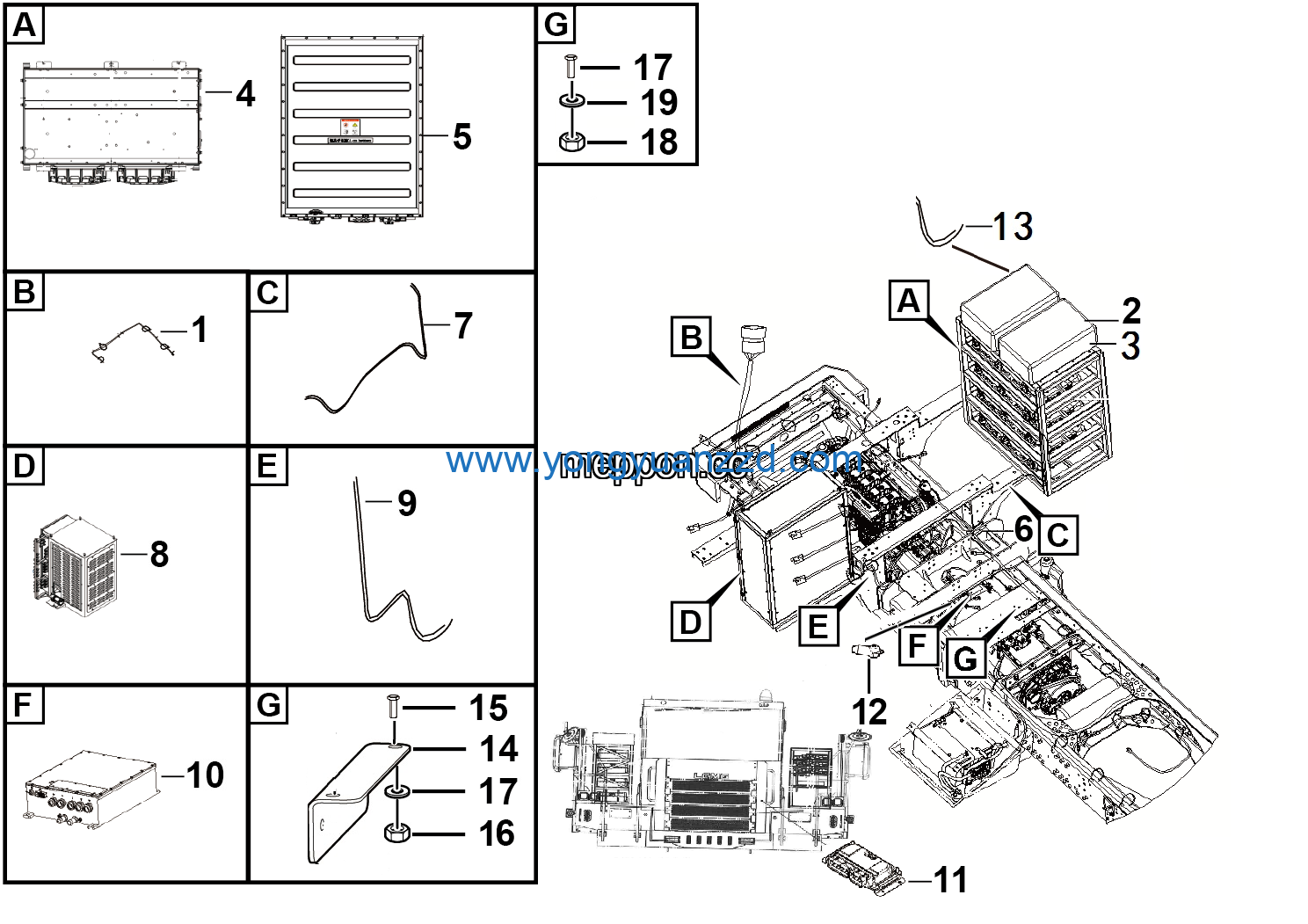

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | MCU HB100-4Z250W-A | 4130703960 | 3 |
| 2 | VCU HT-VCU-U3 MTE108 | 4130703961 | 1 |
| 3 | Power cable cap（Black） | 25320015681 | 4 |
| 4 | Liquid cooling assy grounding wire | 4130703954 | 2 |
| 5 | Bracket | 27200122811 | 1 |
| 6 | Bolt GB5782-M8*30EpZn-8.8 | 4011010172 | 1 |
| 7 | Nut GB889.1-M8EpZn-8 | 4013000210 | 1 |
| 8 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 9 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 4 |
| 10 | Nut GB889.1-M6EpZn-8 | 4013000211 | 4 |
| 11 | Bdu output 2- | 27200120841 | 1 |
| 12 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 13 | Liquid cooling assy water tank | 4130703952 | 2 |
| 14 | Battery liquid cooling unit 8kW MTE108 | 4130703965 | 2 |
| 15 | MSD SNCBFD-M-P-500-M | 4130703951 | 4 |
| 16 | Battery box 4P172S | 4130704277 | 4 |
| 17 | Liquid cooling assy liquid level wiring harness | 4130703953 | 2 |
| 18 | Battery wire p70*800 | 27200105491 | 2 |
| 19 | High voltage elec control cabinet | 4130703959 | 1 |
| 20 | Bdu output 2- | 27200120851 | 1 |
