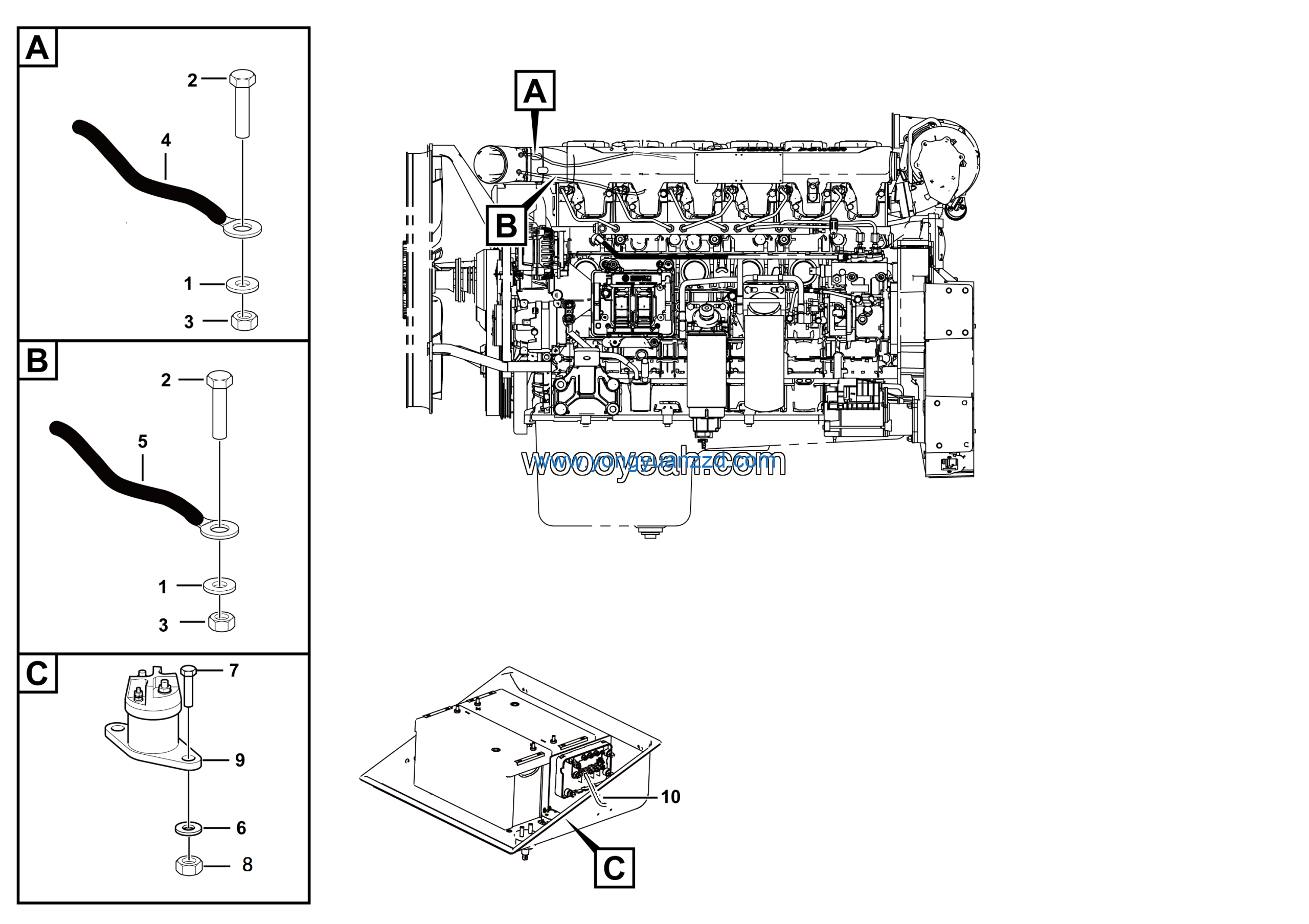

LGMG Off-Highway Dump Truck 2021 – Preheat electrical system assy – K3500-2735010037
Category: 2021 > Off-Highway Dump Truck > MT86H > M086HWAT9-2
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Wire | 27350100381 | 1 |
| 2 | Washer GB97.1-5EpZn-300HV | 4015000110 | 2 |
| 3 | Bolt GB5783-M5*16EpZn-8.8 | 4011010096 | 2 |
| 4 | No longer used | 4013000118 | 2 |
| 5 | WIRE P15*5000 | 27350100401 | 1 |
| 6 | Wire | 27350100221 | 1 |
| 7 | Washer GB97.1-6EpZn-300HV | 4015000207 | 2 |
| 8 | Bolt GB5783-M6*16EpZn-8.8 | 4011000289 | 2 |
| 9 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 10 | Contactor JCC200/1C24.48A | 4130000628 | 1 |
