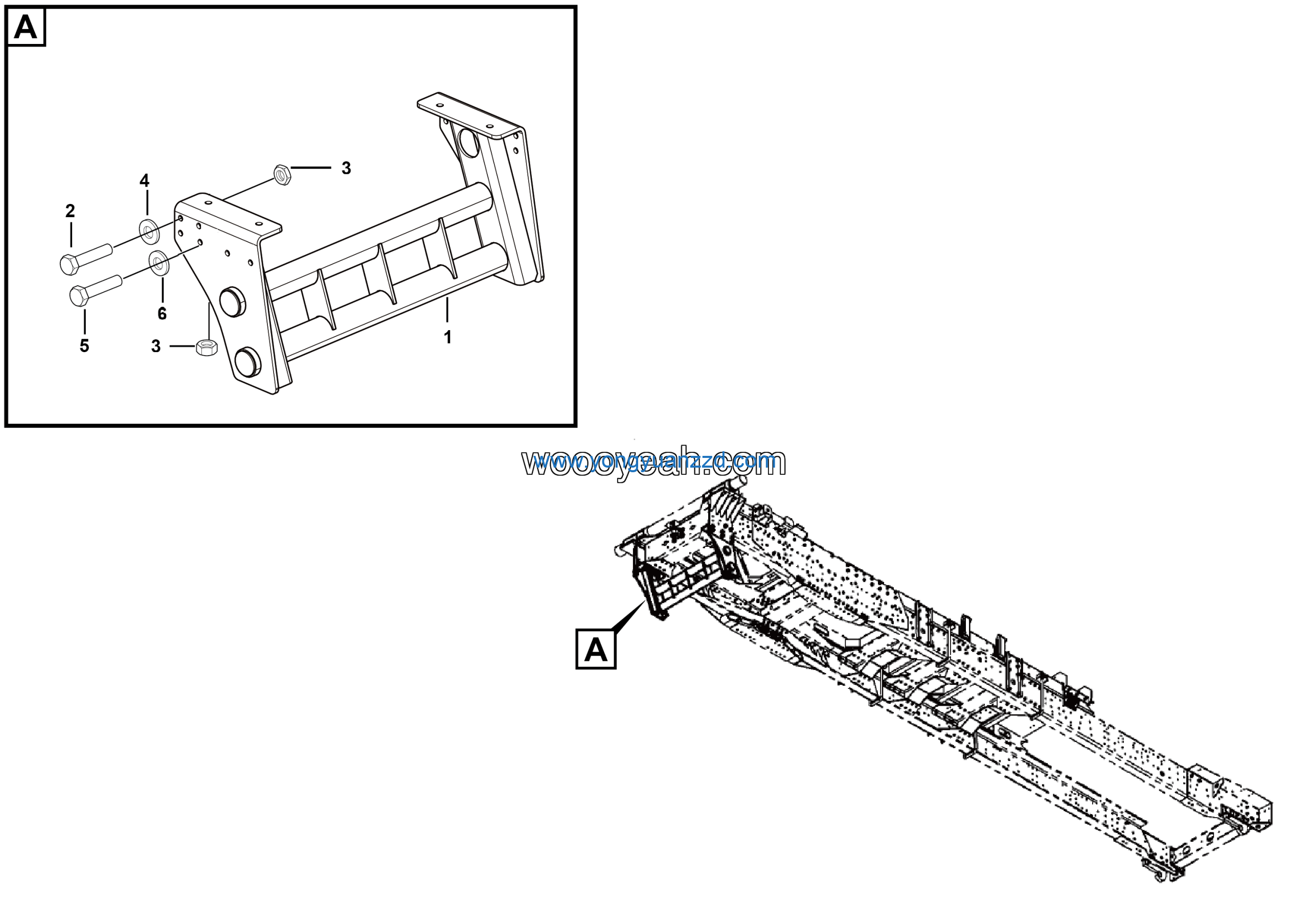

LGMG Off-Highway Dump Truck 2021 – Rear fence plate assy – L4201-2742010055
Category: 2021 > Off-Highway Dump Truck > MT86H > M086HWD42
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27420100632 | 1 |
| 2 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 12 |
| 3 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 16 |
| 4 | No longer used | 4015010342 | 12 |
| 5 | Bolt GB5782-M16*70flZnyc-12.9-480 | 4011010615 | 4 |
| 6 | Washer GB96.1-16flZnyc-300HV-480 | 4015010334 | 4 |
