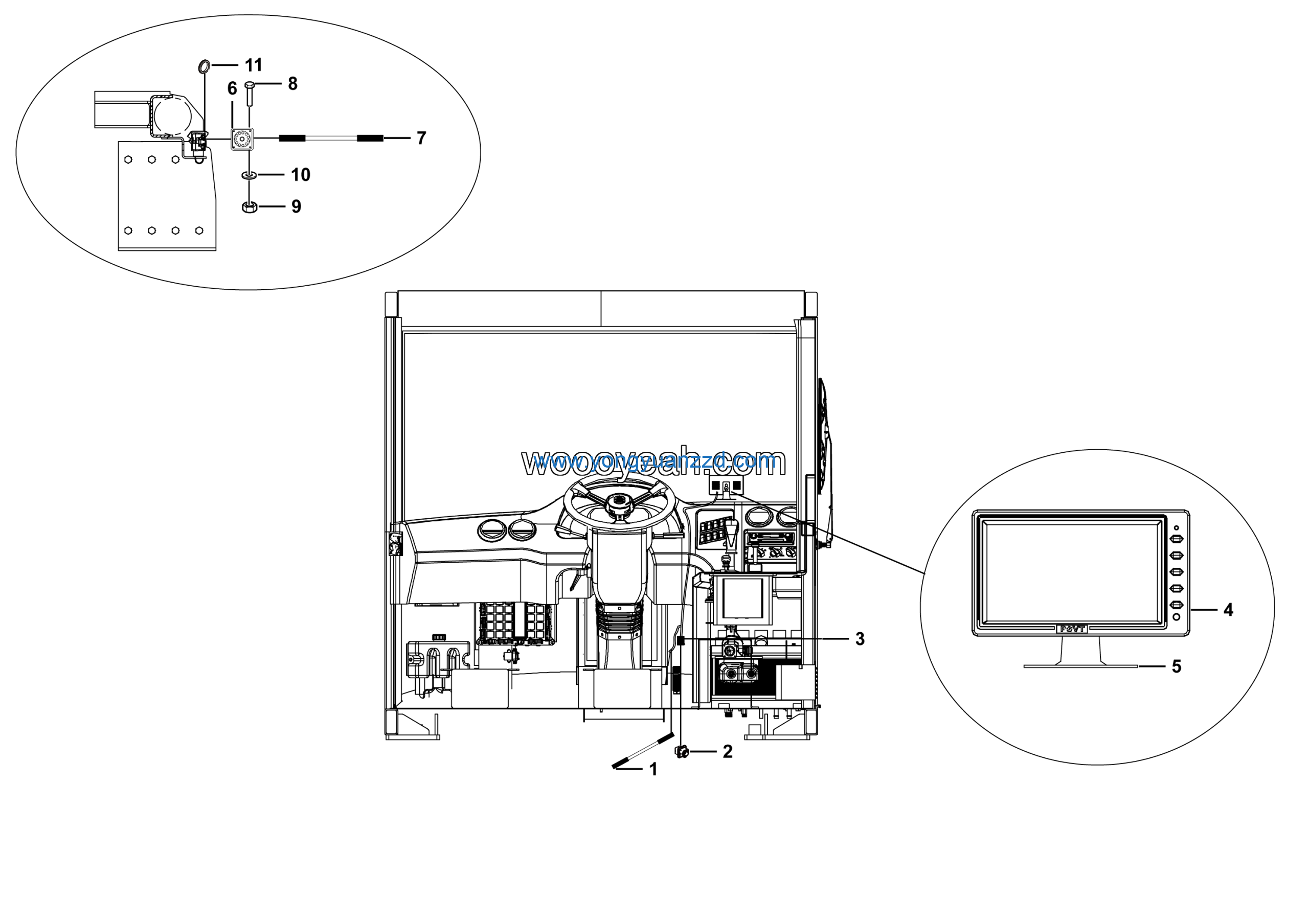

LGMG Off-Highway Dump Truck 2021 – Rear view system assy – K2701-2727010012
Category: 2021 > Off-Highway Dump Truck > CMT96 > C0960WF29
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB848-4EpZn-300HV | 4015000006 | 4 |
| 2 | Rubber sleeve | 23270000311 | 1 |
| 3 | PL2.8M LINE | 4130000412 | 1 |
| 4 | Connecter DJ7081-6.3-11 | 4130000927 | 1 |
| 5 | Terminal DJ611-6.3B | 4130000928 | 3 |
| 6 | Color LCD display screen AE-TM70HC | 4130000402 | 1 |
| 7 | Display base | 4130000411 | 1 |
| 8 | Infrared RR view camera AE-CM10Z | 4130000404 | 1 |
| 9 | Adapter cable AE-PL10m | 4130000405 | 1 |
| 10 | Bolt GB5783-M4*20EpZn-8.8 | 4011000615 | 2 |
| 11 | Nut GB6172.1-M4EpZn-05 | 4013000047 | 2 |
