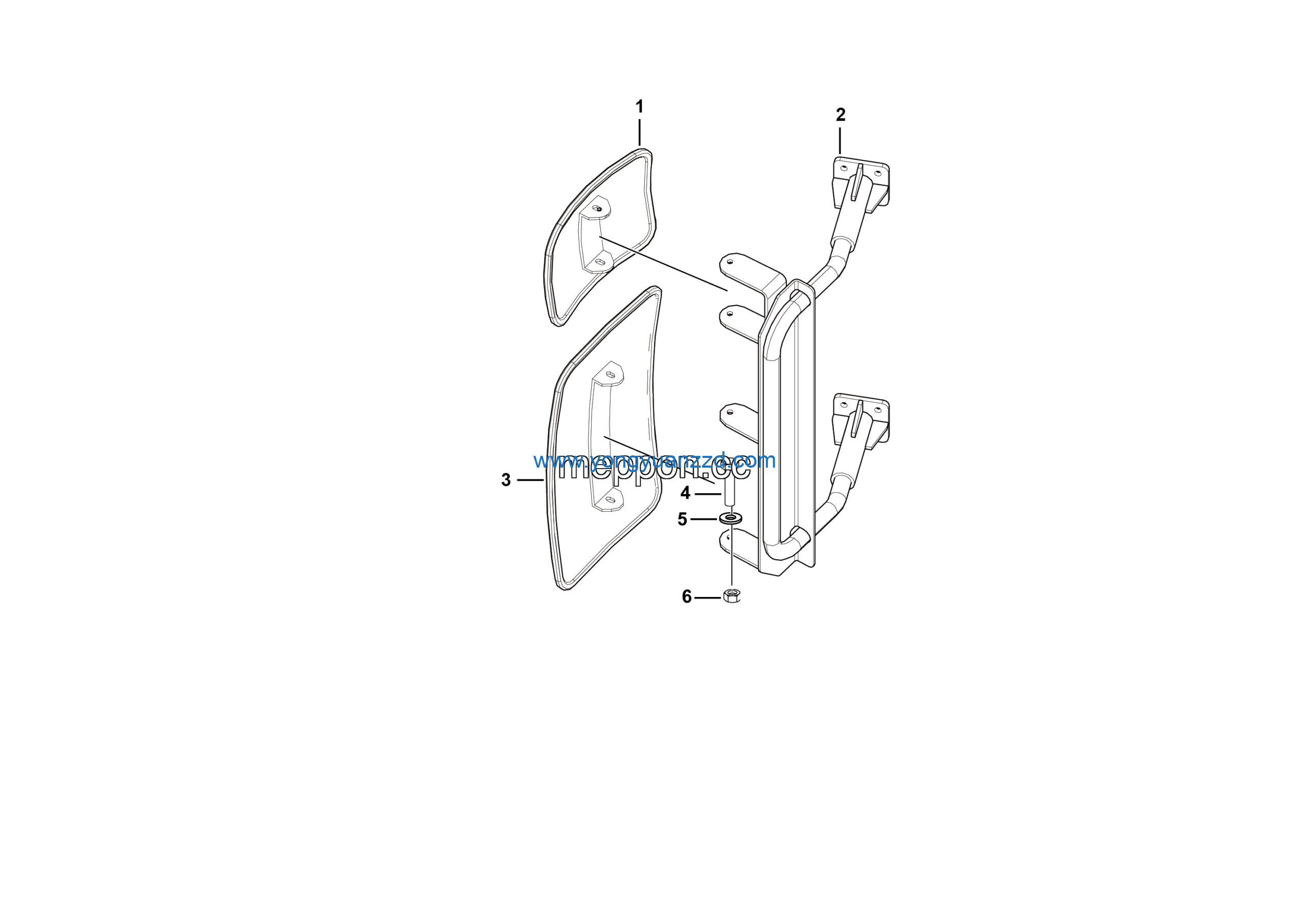

LGMG Off-Highway Dump Truck 2021 – Right rear mirror installation assy – L3601-2736010884
Category: 2021 > Off-Highway Dump Truck > MTE108 > C1080W3A0M101-1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Wide angle rearview mirror | 4190001366 | 1 |
| 2 | Right mirror support | 27360108831 | 1 |
| 3 | Main external rearview mirror | 4190001365 | 1 |
| 4 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 5 | Washer GB96.1-8EpZn-300HV | 4015000256 | 4 |
| 6 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
