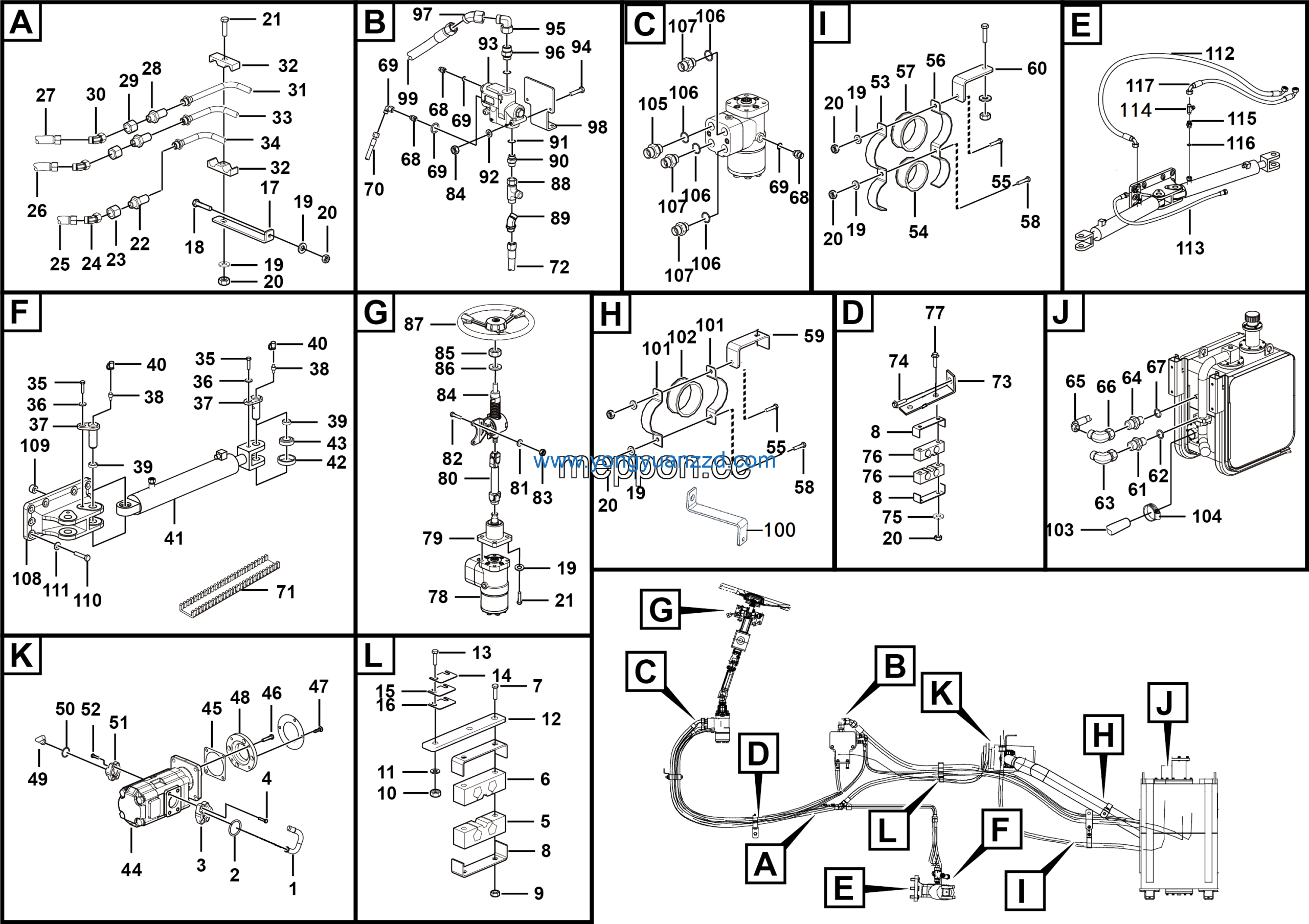

LGMG Off-Highway Dump Truck 2021 – Steering assy – H1501-2715011323.S1E
Category: 2021 > Off-Highway Dump Truck > MT86D > M086DWB08
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket | 27150112142 | 1 |
| 2 | Clamp | 27150112551 | 2 |
| 3 | Cushion sleeve LGB123-1060 | 4041000866 | 1 |
| 4 | Suction tube | 27150116491 | 1 |
| 5 | Hose clamp JB8870-D90 | 4017000013 | 4 |
| 6 | Straight joint LGB120-02620 | 4041000564 | 1 |
| 7 | O-ring LGB168-11724 | 4041000783 | 4 |
| 8 | Straight joint LGB120-02220 | 4041000132 | 3 |
| 9 | Bracket | 27150108851 | 1 |
| 10 | Shaft | 27150106671 | 1 |
| 11 | Nut GB6170-M12EpZn-8 | 4013000011 | 1 |
| 12 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 8 |
| 13 | Washer 16 | 27150105312 | 8 |
| 14 | Hose LGB127-006075 | 4041000699 | 2 |
| 15 | Hose LGB128-006067 | 4041000700 | 1 |
| 16 | Tee CC-22 | 4190001347 | 2 |
| 17 | Straight joint LGB155-01822 | 4041000822 | 2 |
| 18 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 2 |
| 19 | Hose LGB128-006095 | 4041000929 | 1 |
| 20 | Washer GB97.1-12EpZn-300HV | 4015000168 | 5 |
| 21 | Plate | 27150109602 | 1 |
| 22 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 1 |
| 23 | Shim | 27150111481 | 1 |
| 24 | Shim | 27150111491 | 1 |
| 25 | Shim | 27150111501 | 1 |
| 26 | Bracket | 27150109041 | 2 |
| 27 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 5 |
| 28 | Washer GB97.1-10EpZn-300HV | 4015000162 | 15 |
| 29 | Pipe | 27160110101 | 1 |
| 30 | Nut GB6170-M10EpZn-8 | 4013000007 | 11 |
| 31 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 5 |
| 32 | Bulkhead joint M26 | 27150109061 | 1 |
| 33 | Nut | 27150103221 | 1 |
| 34 | Combination joint LGB143-12616 | 4041001417 | 1 |
| 35 | Hose LGB166-010172 | 4041010336 | 1 |
| 36 | Hose LGB129-006158 | 4041010337 | 1 |
| 37 | Hose LGB129-006162 | 4041010338 | 1 |
| 38 | Clapboard joint | 27150109051 | 2 |
| 39 | NUT | 27150102951 | 2 |
| 40 | O-ring GB3452.1-56.0*3.55G | 4030000133 | 1 |
| 41 | Combination joint LGB143-12213 | 4041001218 | 5 |
| 42 | Left steering pipe | 27150113781 | 1 |
| 43 | Hold-down block | 27150106471 | 4 |
| 44 | Right steering pipe | 27150109101 | 1 |
| 45 | Hose LGB165-010275 | 4041010371 | 1 |
| 46 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 4 |
| 47 | Washer GB1230-12EpZn-45 | 4015000288 | 4 |
| 48 | Axis | 27150108681 | 4 |
| 49 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 50 | Sleeve | 27150108221 | 4 |
| 51 | Split flange LGB117-320760 | 4041000009 | 1 |
| 52 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 53 | Steering cylinder HSGL-70*40*405-790 | 4120001268 | 2 |
| 54 | Block | 27150111191 | 4 |
| 55 | Bearing GB9163-GE30ES | 4021000253 | 2 |
| 56 | Gear pump JHP2080/2040 | 4120001392 | 1 |
| 57 | Gasket | 29110000043 | 1 |
| 58 | Bolt GB5783-M12*35-10.9 | 4011010491 | 4 |
| 59 | Screw GB70.1-M8*25EpZn-12.9 | 4014010141 | 8 |
| 60 | CARGO TANK ASSEMBLY | 27150113721 | 1 |
| 61 | Flange joint | 27150110651 | 1 |
| 62 | Bolt GB16674.1-M12*35EpZn-8.8 | 4011000477 | 4 |
| 63 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 1 |
| 64 | Split flange LGB117-310491 | 4041000026 | 1 |
| 65 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 4 |
| 66 | Pipe clamp LGB167-0426 | 4041001169 | 1 |
| 67 | Cushion sleeve LGB123-0426 | 4041001484 | 1 |
| 68 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 69 | Clamp | 27150112191 | 4 |
| 70 | Cushion | 27160108711 | 2 |
| 71 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 72 | Bracket | 27150113251 | 1 |
| 73 | Rubber clip | 27150109611 | 1 |
| 74 | Bracket | 27150113261 | 1 |
| 75 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 76 | O-ring LGB168-12331 | 4041000779 | 2 |
| 77 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 78 | Straight joint LGB120-01414 | 4041000133 | 1 |
| 79 | Hose LGB165-003290 | 4041010227 | 1 |
| 80 | Combination joint LGB143-01406 | 4041001047 | 2 |
| 81 | O-ring LGB168-11124 | 4041000767 | 2 |
| 82 | Straight joint LGB120-01412 | 4041000131 | 3 |
| 83 | O-ring LGB168-10924 | 4041000784 | 3 |
| 84 | Rubber clip | 27150109621 | 1 |
| 85 | Hose LGB125-003242 | 4041010340 | 1 |
| 86 | String casing | 27140105021 | 1 |
| 87 | Hose LGB129-006197 | 4041010339 | 1 |
| 88 | Bracket | 27150109931 | 1 |
| 89 | Bolt GB5783-M16*30EpZn-8.8 | 4011000094 | 1 |
| 90 | Washer GB97.1-16EpZn-300HV | 4015000181 | 1 |
| 91 | Block | 27150108321 | 4 |
| 92 | Bolt GB16674.1-M10*85EpZn-8.8 | 4011000136 | 4 |
| 93 | Steering gear | 4120000719 | 1 |
| 94 | Bracket assy | 4120001109 | 1 |
| 95 | Bolt GB16674.1-M10*95EpZn-8.8 | 4011000316 | 2 |
| 96 | Steering transmission shaft | 4120001108 | 1 |
| 97 | Washer GB96.1-8EpZn-300HV | 4015000256 | 4 |
| 98 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 99 | Nut GB6170-M8EpZn-8 | 4013000033 | 6 |
| 100 | Directional column | 4120001388 | 1 |
| 101 | Nut GB6173-M22*1.5EpZn-05 | 4013000152 | 1 |
| 102 | Washer GB97.1-22EpZn-300HV | 4015000184 | 1 |
| 103 | Steering wheel 430 | 4120001247 | 1 |
| 104 | Pressure test tee | 27150108791 | 1 |
| 105 | Plug LGB135-11019 | 4041000772 | 1 |
| 106 | Cover plate | 27150110571 | 6 |
| 107 | Straight joint LGB120-02222 | 4041000143 | 1 |
| 108 | O-ring LGB168-11924 | 4041000771 | 1 |
| 109 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 110 | Priority valve VLE-150 | 4120000720 | 1 |
| 111 | Bolt GB16674.1-M8*90EpZn-8.8 | 4011000493 | 2 |
| 112 | Combination joint LGB143-03019 | 4041001262 | 1 |
| 113 | Straight joint LGB120-03028 | 4041000188 | 1 |
| 114 | Combination joint LGB143-13019 | 4041001650 | 1 |
| 115 | Fixing plate | 27150108772 | 1 |
| 116 | Hose-1500 | 27150111521 | 1 |
| 117 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
