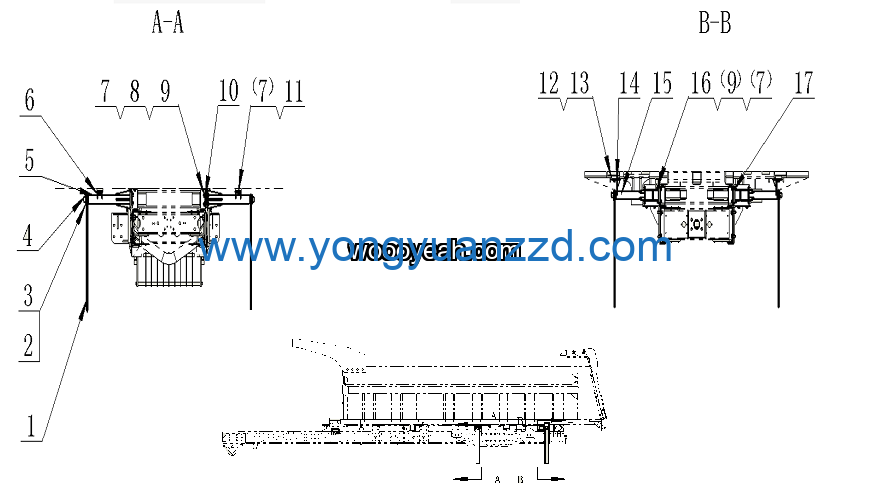

LGMG Off-Highway Dump Truck 2021 – Stone deflector assy – L1700-2717024649
Category: 2021 > Off-Highway Dump Truck > MT60 > M0600WE23
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27170246501 | 1 |
| 2 | Bolt GB5783-M16*30EpZn-8.8 | 4011000094 | 8 |
| 3 | Plate | 27170177252 | 4 |
| 4 | Plate | 27170177262 | 4 |
| 5 | Plate | 27170246621 | 2 |
| 6 | Plate | 27170246611 | 2 |
| 7 | Bolt GB5783-M16*55EpZn-8.8 | 4011000612 | 8 |
| 8 | Plate | 27170246511 | 4 |
| 9 | Plate | 27170261331 | 1 |
| 10 | Plate | 27170157931 | 12 |
| 11 | Plate | 27170157921 | 4 |
| 12 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 13 | Plate | 27170206681 | 2 |
| 14 | Plate | 27170177932 | 2 |
| 15 | Washer GB97.1-16EpZn-300HV | 4015000181 | 32 |
| 16 | Bolt GB5782-M16*65EpZn-8.8 | 4011000459 | 4 |
| 17 | Nut GB6170-M16EpZn-8 | 4013000016 | 12 |
