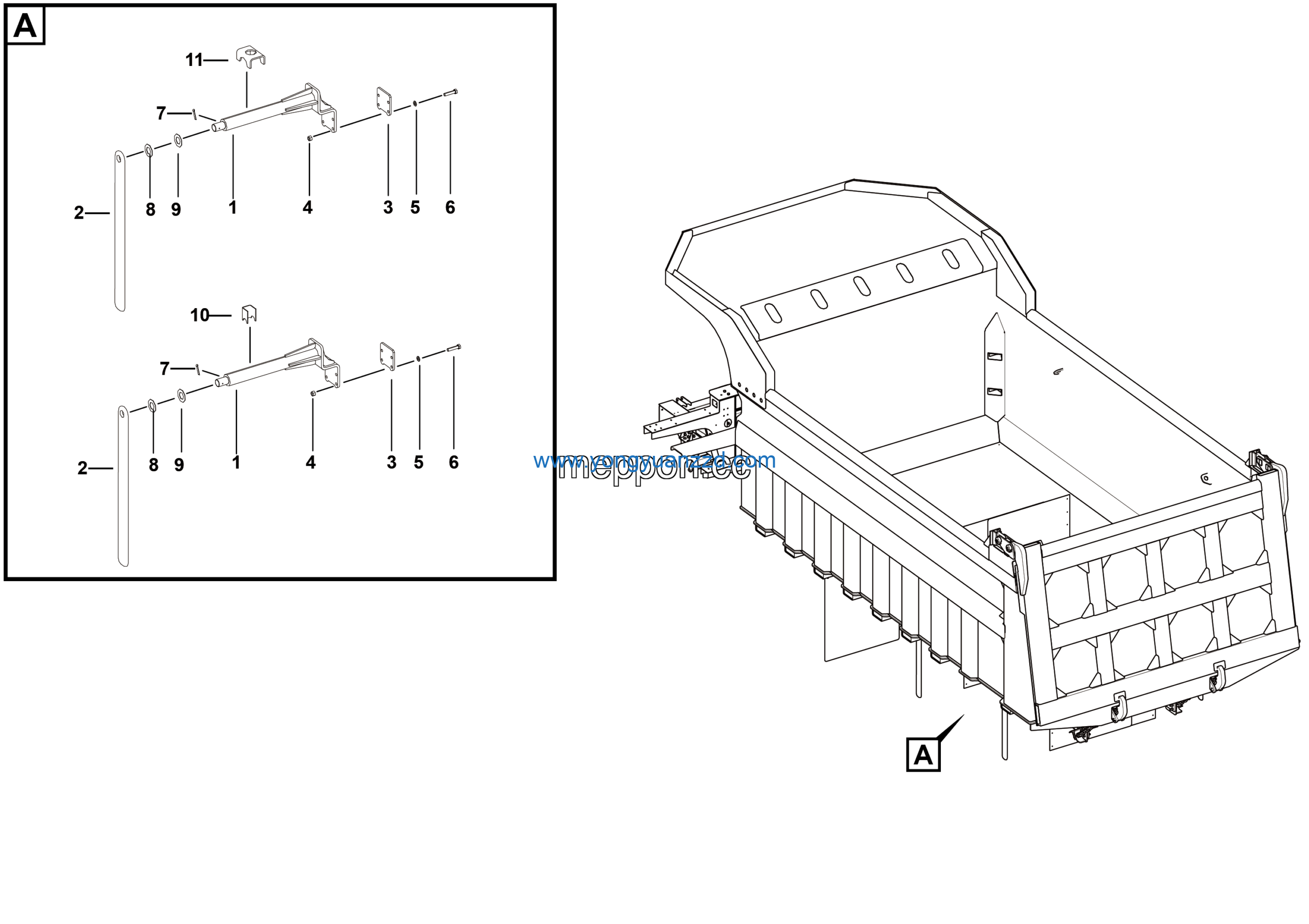

LGMG Off-Highway Dump Truck 2021 – Stone deflector assy – L1700-2717025499.S1A
Category: 2021 > Off-Highway Dump Truck > MT105 > M105HW3A0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rear stone deflector supporting plate | 27170255061 | 2 |
| 2 | Mid stone deflector supporting plate | 27170255051 | 2 |
| 3 | Stone deflector steadier | 27170255002 | 4 |
| 4 | Plate | 27170261331 | 4 |
| 5 | Subpanel | 27170255042 | 2 |
| 6 | Nut GB6170-M16EpZn-8 | 4013000016 | 16 |
| 7 | Washer GB97.1-16EpZn-300HV | 4015000181 | 32 |
| 8 | Bolt GB5782-M16*80EpZn-8.8 | 4011000226 | 16 |
| 9 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 10 | Plate | 27170157921 | 4 |
| 11 | Plate | 27170157931 | 12 |
