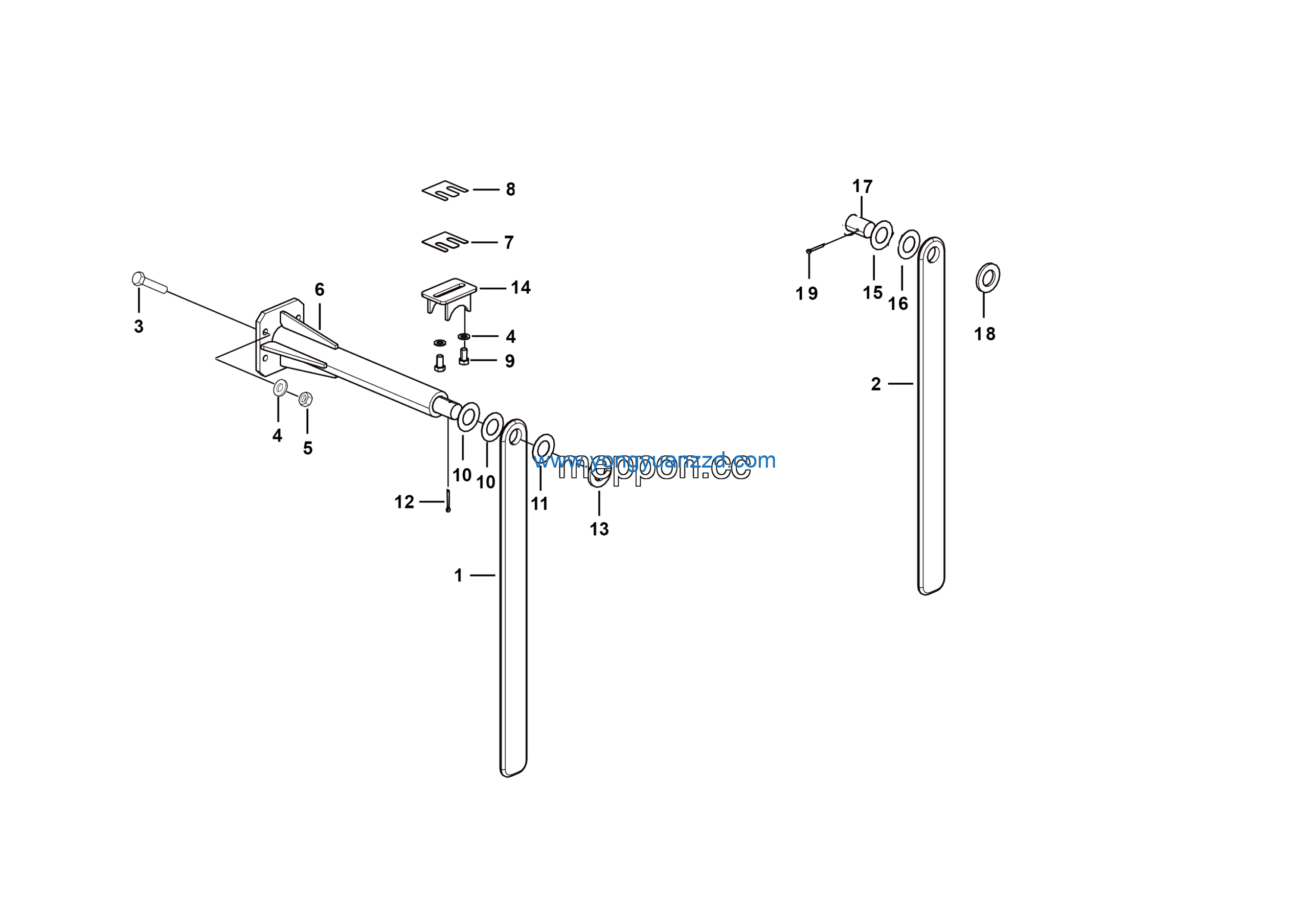

LGMG Off-Highway Dump Truck 2021 – Stone deflector assy – L1701-2717017514.S1C
Category: 2021 > Off-Highway Dump Truck > MT95H > M095HWD25
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27170157931 | 6 |
| 2 | Plate | 27170157921 | 2 |
| 3 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 2 |
| 4 | Washer GB97.1-42EpZn-300HV | 4015000311 | 2 |
| 5 | Plate | 27170177952 | 2 |
| 6 | Plate | 27170132961 | 4 |
| 7 | Plate | 27170132971 | 4 |
| 8 | No longer used | 4016000146 | 2 |
| 9 | Washer GB97.1-30EpZn-300HV | 4015000119 | 2 |
| 10 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 2 |
| 11 | Plate | 27170261331 | 2 |
| 12 | Plate | 27170261541 | 2 |
| 13 | Bolt GB5782-M16*65EpZn-8.8 | 4011000459 | 8 |
| 14 | Washer GB97.1-16EpZn-300HV | 4015000181 | 20 |
| 15 | Nut GB6170-M16EpZn-8 | 4013000016 | 8 |
| 16 | Plate | 27170175151 | 2 |
| 17 | Plate | 27170177252 | 4 |
| 18 | Plate | 27170177262 | 2 |
| 19 | Bolt GB5783-M16*30EpZn-8.8 | 4011000094 | 4 |
