LGMG Off-Highway Dump Truck 2021 – Water radiator assy – A0500-2705010656
Category: 2021 > Off-Highway Dump Truck > MT105 > M105HW3A0M002

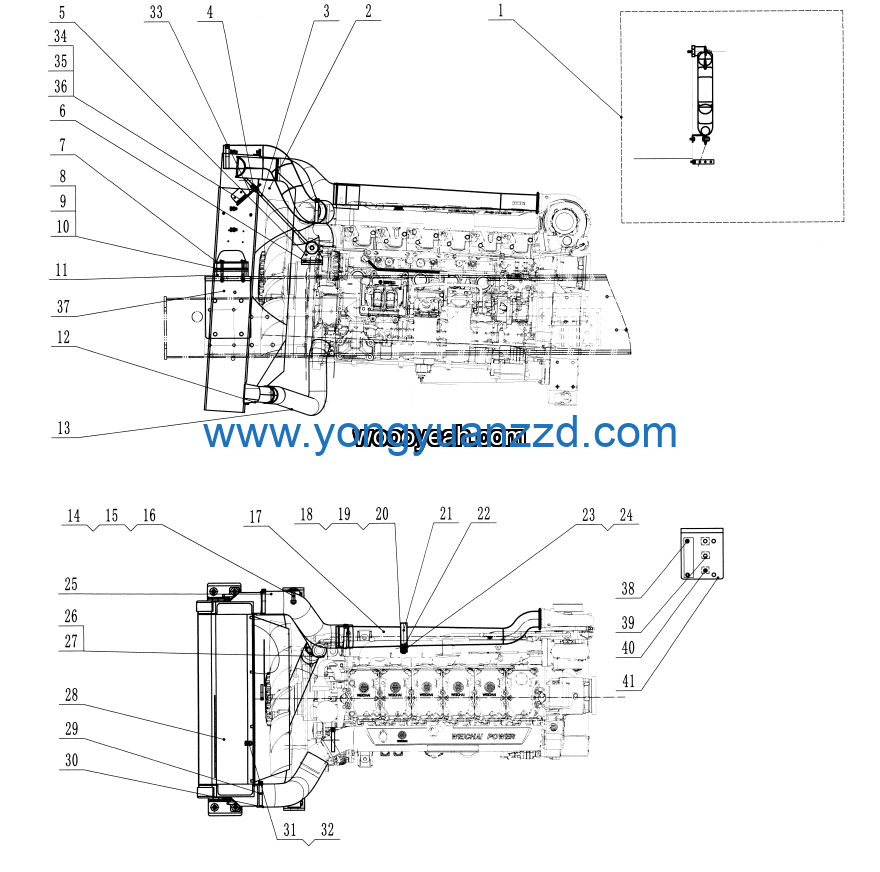

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 2 | Radiator shock absorber assy | 4110001445 | 2 |
| 3 | T-Clamp 78-86 | 4190002212 | 2 |
| 4 | Pipe | 27030124571 | 1 |
| 5 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 6 | Plate | 27030109731 | 2 |
| 7 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 8 | Pipe | 27030120071 | 1 |
| 9 | Support ii | 27030105872 | 1 |
| 10 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 11 | Water expand tank | 27030124551 | 1 |
| 12 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 13 | Support i | 27030105861 | 1 |
| 14 | Bolt GB5782-M8*55EpZn-8.8 | 4011000415 | 1 |
| 15 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 16 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 17 | Pipe | 27030123841 | 1 |
| 18 | No longer used | 4019010101 | 2 |
| 19 | Pipe | 27030106011 | 1 |
| 20 | Radiator assy M9116124 | 4110705267 | 1 |
| 21 | No longer used | 4019010211 | 4 |
| 22 | Wind guide cover DB1364 | 4110705268 | 1 |
| 23 | Pipe | 27030123851 | 1 |
| 24 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 8 |
| 25 | Washer GB96.1-8EpZn-300HV | 4015000256 | 8 |
| 26 | Plate | 27030124581 | 2 |
| 27 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 28 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 29 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 30 | Support | 27030124611 | 1 |
| 31 | Bolt GB5783-M16*60EpZn-8.8 | 4011000594 | 6 |
| 32 | Bolt GB5783-M14*70EpZn-8.8 | 4011010663 | 1 |
| 33 | Radiator bar | 4110001451 | 2 |
| 34 | Bolt GB5783-M16*75EpZn-8.8 | 4012000041 | 2 |
| 35 | Support | 27030124621 | 1 |
| 36 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 37 | Support | 27030109692 | 2 |
| 38 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 4 |
| 39 | Plate | 27030109021 | 2 |
| 40 | Nut GB6171-M14*1.5EpZn-8 | 4013000119 | 8 |
| 41 | Bolt GB5783-M10*90EpZn-8.8 | 4011000956 | 4 |
