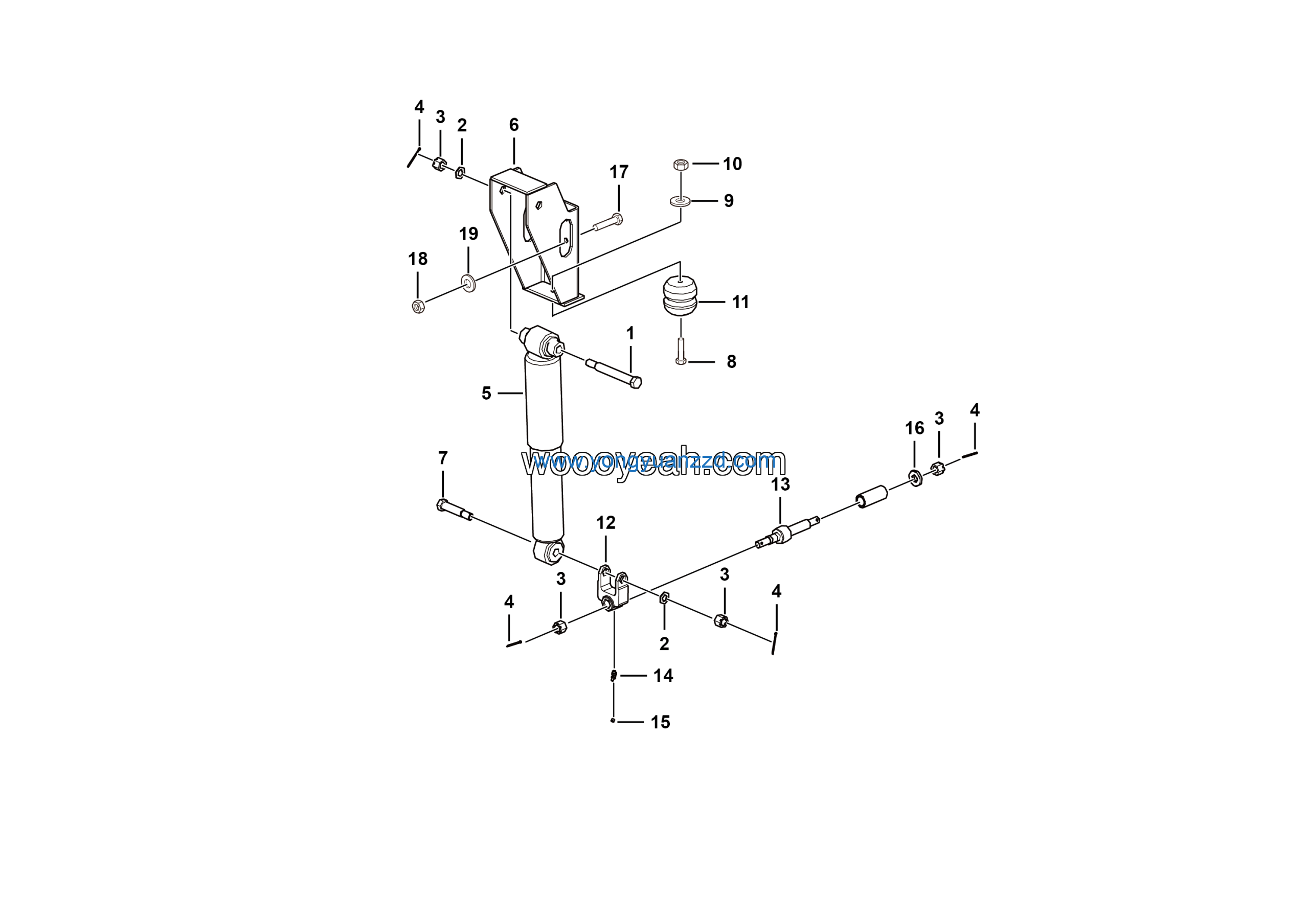

LGMG Off-Highway Dump Truck 2022 – Absorber installation assy – G1200-2712011821
Category: 2022 > Off-Highway Dump Truck > MT60D > M060DWE98
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Vibration damper bracket | 27120118141 | 2 |
| 2 | FR suspension stop block | 4190000677 | 2 |
| 3 | vibration damper | 27120106871 | 2 |
| 4 | shaft | 27120106891 | 2 |
| 5 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 6 | No longer used | 4030000107 | 2 |
| 7 | Washer | 27120106901 | 2 |
| 8 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 6 |
| 9 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 6 |
| 10 | Backing plate | 27120107161 | 3 |
| 11 | Bolt-dampe upper support | 27120106911 | 2 |
| 12 | Washer GB97.1-20EpZn-300HV | 4015000176 | 4 |
| 13 | Nut GB6178-M20*2EpZn-10 | 4013010194 | 8 |
| 14 | Pin GB91-4*56EpZn-Q235A | 4016000169 | 8 |
| 15 | Shock absorber DZ9118680003 | 4110000033 | 2 |
| 16 | Shock absorber upper bracket assembly | 27120118161 | 1 |
| 17 | Bolt-dampe lower support | 27120106881 | 2 |
| 18 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 16 |
| 19 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 16 |
