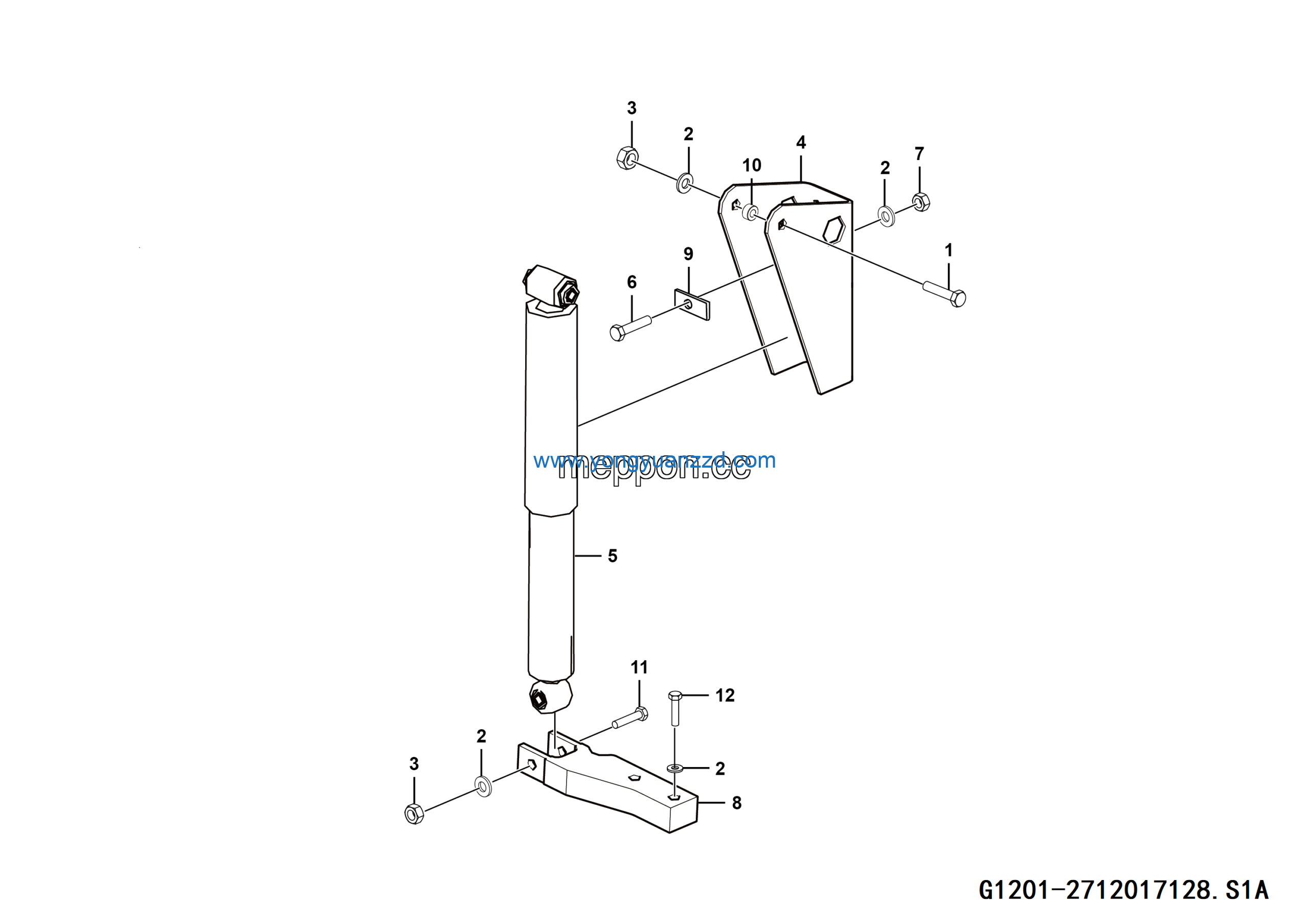

LGMG Off-Highway Dump Truck 2022 – Absorber installation assy – G1201-2712017128.S1A
Category: 2022 > Off-Highway Dump Truck > MT60 > M060DW2E0M106
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Sleeve | 27120171341 | 2 |
| 2 | Bolt GB5782-M16*90flZnyc-12.9-480 | 4011010646 | 2 |
| 3 | Bolt | 27120100221 | 2 |
| 4 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 6 |
| 5 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 6 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 4 |
| 7 | Holder | 27120171361 | 1 |
| 8 | Shock absorber assy | 4110001000 | 2 |
| 9 | Bolt GB5785-M16*1.5*70EpZn-8.8 | 4011000499 | 4 |
| 10 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 6 |
| 11 | Stents under shock absorber | 27120116961 | 2 |
| 12 | Backing plate | 27120107161 | 3 |
