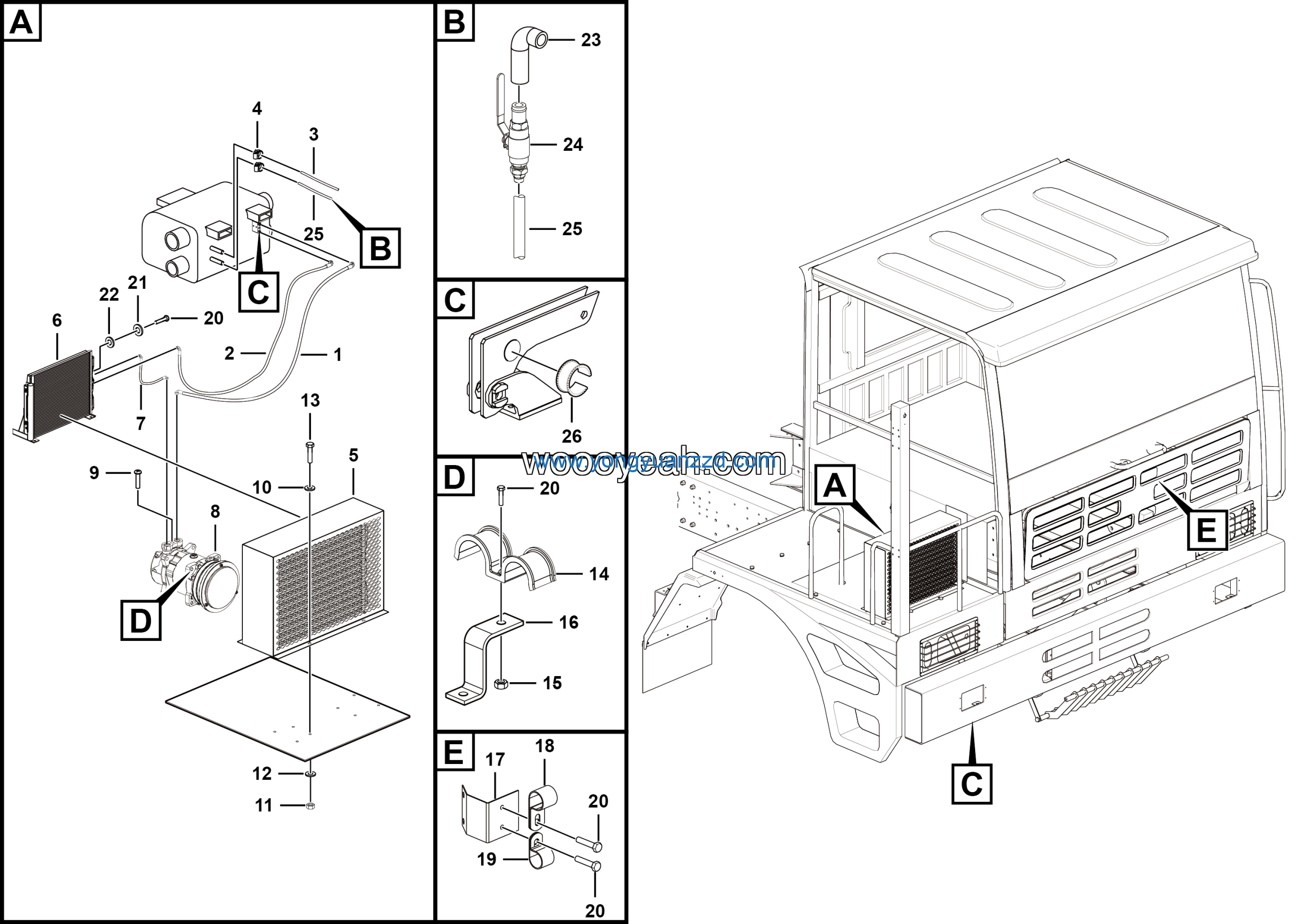

LGMG Off-Highway Dump Truck 2022 – Air conditioner assy – N2103-2721010332
Category: 2022 > Off-Highway Dump Truck > MT88 > M0880W3E0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 2 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 3 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 5 | Clamp | 4190002236 | 1 |
| 6 | Nut GB6170-M6EpZn-8 | 4013000028 | 1 |
| 7 | Pipeline support | 4190002235 | 1 |
| 8 | Bracket | 4190002389 | 1 |
| 9 | Clamp | 4190002390 | 1 |
| 10 | Clamp | 4190002391 | 1 |
| 11 | Pipe（Evaporator-compressor） | 4190002232 | 1 |
| 12 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 10 |
| 13 | Washer GB97.1-6EpZn-300HV | 4015000207 | 2 |
| 14 | Washer GB93-6EpZn-65Mn | 4015000213 | 2 |
| 15 | Valve connecting pipe | 27210103812 | 1 |
| 16 | Warm air water valve | 4190703865 | 1 |
| 17 | Intlet pipe of heater | 27210103834 | 1 |
| 18 | Sheath | 27210103441 | 2 |
| 19 | Pipe（Evaporator-reservoir） | 4190002233 | 1 |
| 20 | Water oulet tube of heating | 27210103663 | 1 |
| 21 | Hose clamp JB8870-D32 | 4017000011 | 4 |
| 22 | Shield | 4190002561 | 1 |
| 23 | Condenser assy | 4190001667 | 1 |
| 24 | Pipe（Compressor-condenser） | 4190002234 | 1 |
| 25 | Compressor assy | 4190003346 | 1 |
| 26 | Screw GB70.1-M8*100EpZn-10.9 | 4011010418 | 4 |
