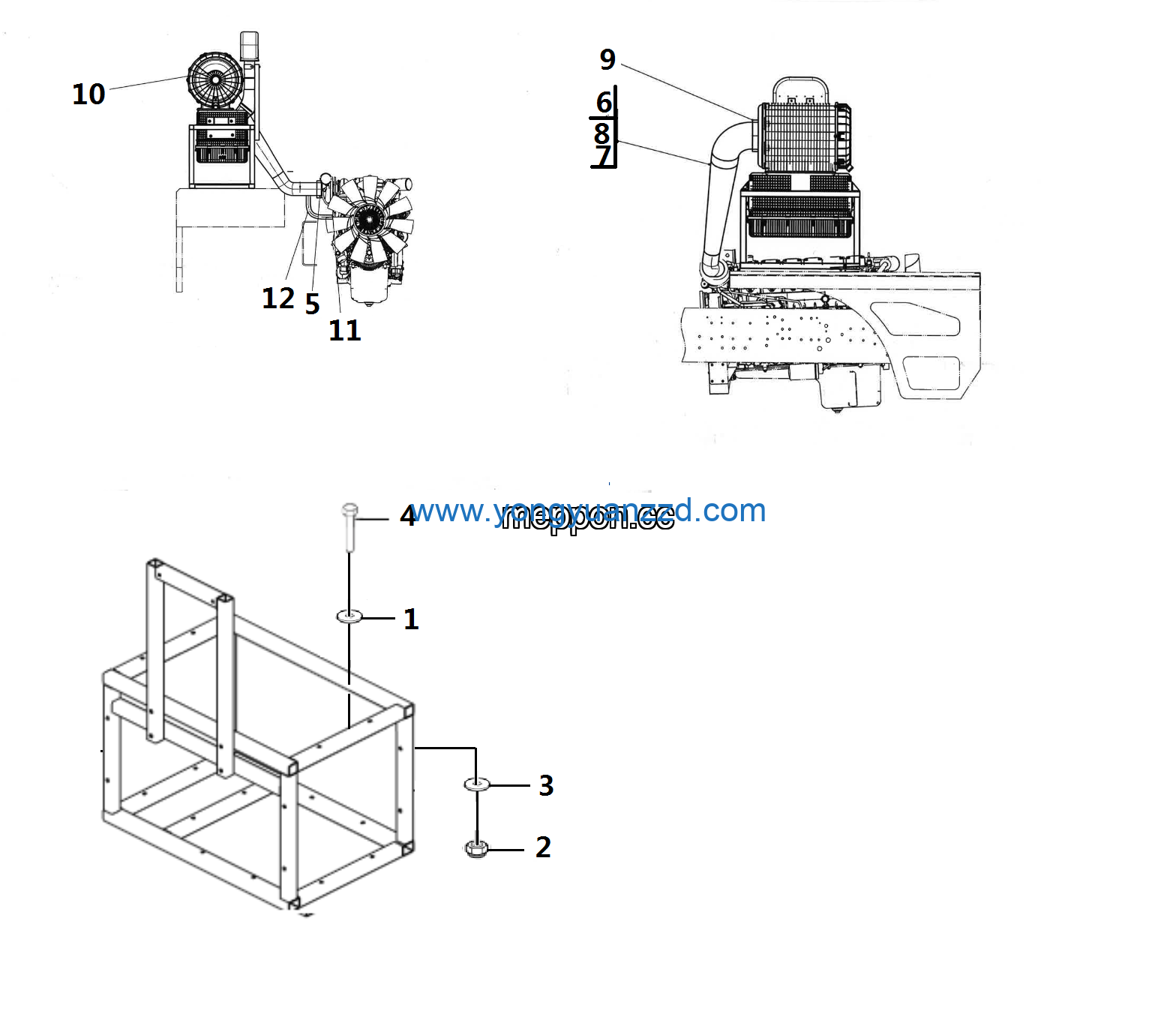

LGMG Off-Highway Dump Truck 2022 – Air filter assy – A1800-2718010719.S1B
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0M145
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Oil bath air filter mounting assy 3560 | 4110705470 | 1 |
| 2 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 3 | PLATE | 27180104271 | 1 |
| 4 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 5 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 12 |
| 6 | Washer GB97.1-12EpZn-300HV | 4015000168 | 12 |
| 7 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 8 |
| 8 | T-Hoop φ132-φ140 | 4190703914 | 1 |
| 9 | Pipe | 27180107201 | 1 |
| 10 | Vacuum level alarm | 4110001427 | 1 |
| 11 | Wire | 27200107621 | 1 |
| 12 | T-bolt clamp φ188-φ196 | 4190002630 | 1 |
