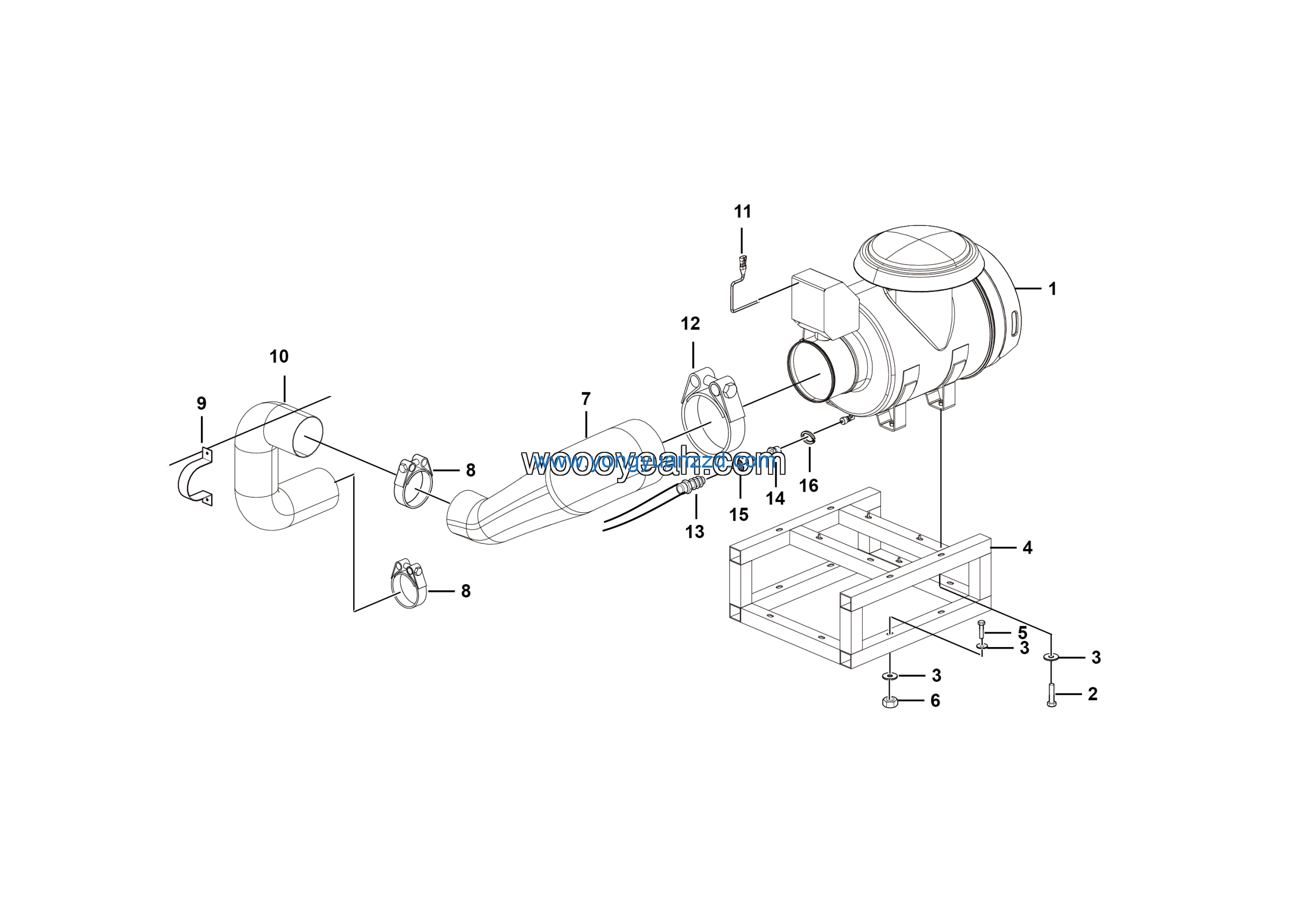

LGMG Off-Highway Dump Truck 2022 – Air filter assy – A1800-2718010756.S1A
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0A102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | PLATE | 27180104271 | 1 |
| 2 | Wire | 27200108491 | 1 |
| 3 | T-Hoop φ209-φ217 | 4190703789 | 1 |
| 4 | Pipe | 27110103241 | 1 |
| 5 | Nut seat NG8 | 4120000194 | 1 |
| 6 | Elastic element NG8 | 4120000197 | 1 |
| 7 | Clip spring NG8 | 4120000196 | 1 |
| 8 | Maintenance-free air filter assy K160036 | 4110704977 | 1 |
| 9 | Bolt GB5782-M12*75EpZn-8.8 | 4011000874 | 6 |
| 10 | Washer GB96.1-12EpZn-300HV | 4015000186 | 12 |
| 11 | Support | 27180107101 | 1 |
| 12 | Bolt GB5782-M12*120EpZn-8.8 | 4011000054 | 6 |
| 13 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 14 | Pipe | 27180106941 | 1 |
| 15 | T-Hoop φ132-φ140 | 4190703914 | 1 |
| 16 | Hose clamp JB8870-D32 | 4017000011 | 2 |
