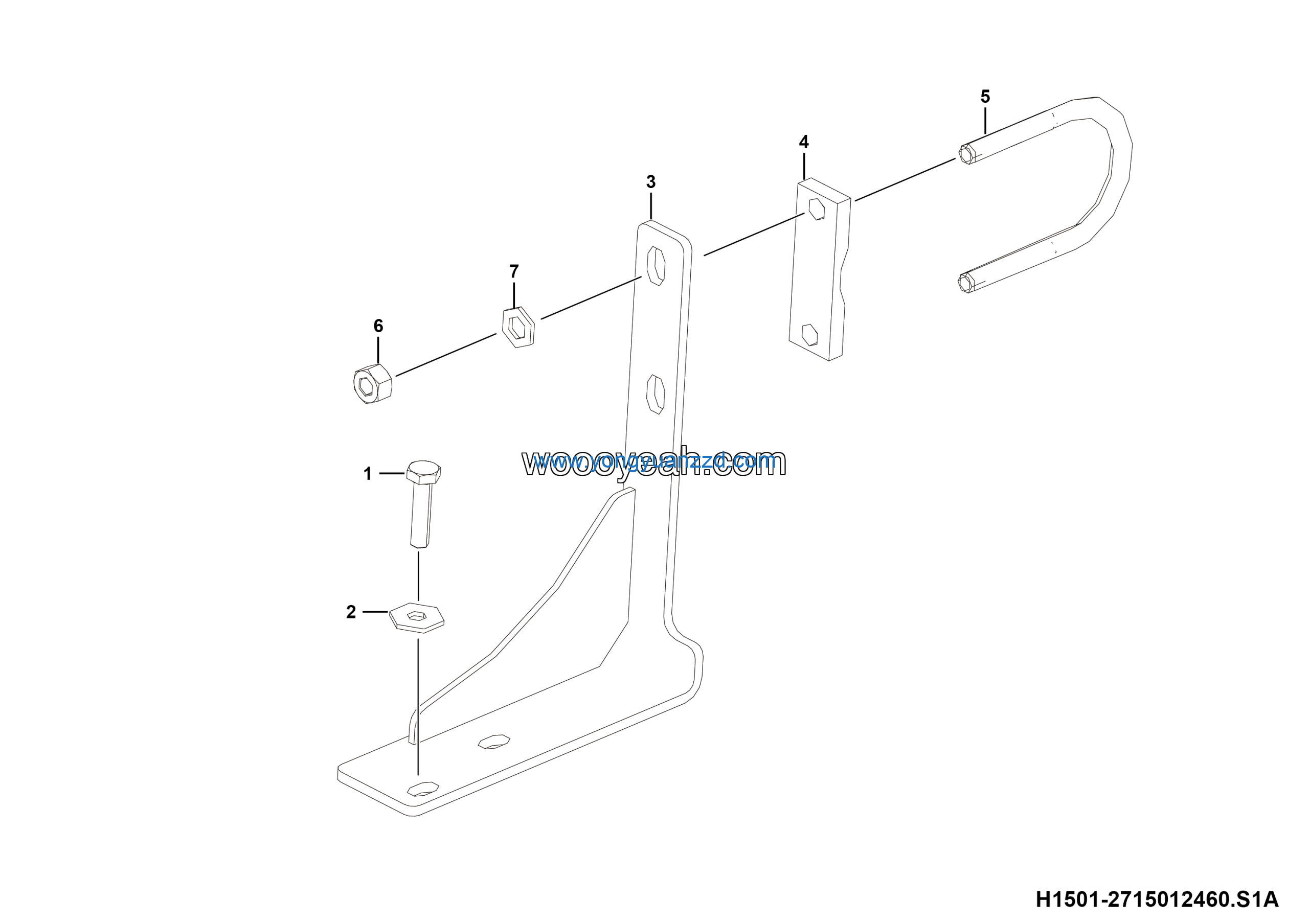

LGMG Off-Highway Dump Truck 2022 – ASM-Bracket installation 03 – H1501-2715012460.S1A
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A0M102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*40EpZn-10.9 | 4011000578 | 2 |
| 2 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 3 | Oil suction pipe bracket | 27150122182 | 1 |
| 4 | Rubber pad | 27150122211 | 1 |
| 5 | U bolt | 27160121841 | 1 |
| 6 | Nut GB6170-M12EpZn-8 | 4013000011 | 2 |
| 7 | Washer GB97.1-12-300HV | 4015000313 | 2 |
