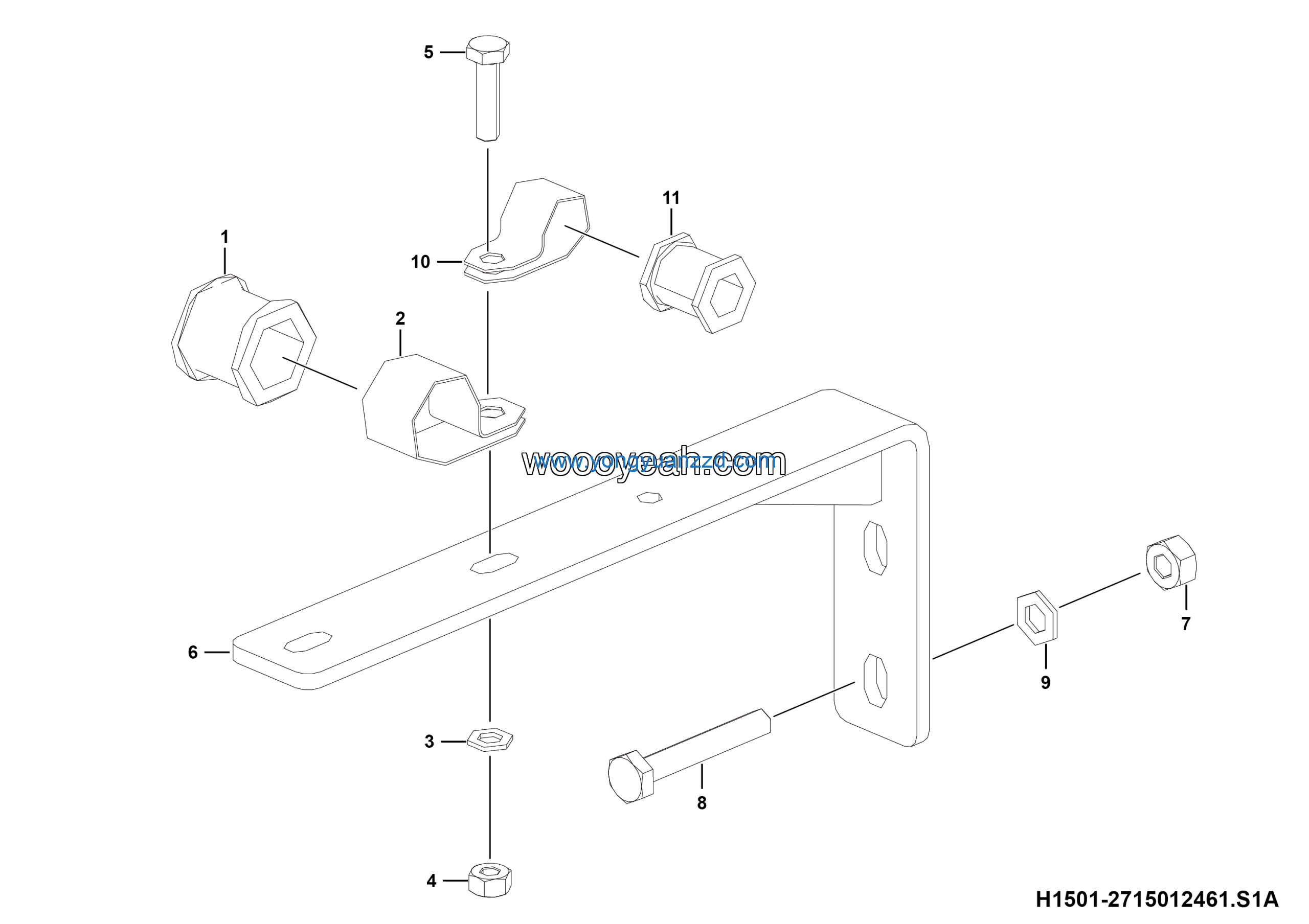

LGMG Off-Highway Dump Truck 2022 – ASM-Bracket installation 04 – H1501-2715012461.S1A
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A0M102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe clamp LGB167-0116 | 4041001132 | 1 |
| 2 | Cushion sleeve LGB123-0116 | 4041001252 | 1 |
| 3 | Cushion sleeve LGB123-0426 | 4041001484 | 1 |
| 4 | Pipe clamp LGB167-0426 | 4041001169 | 1 |
| 5 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 6 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 7 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 1 |
| 8 | Playe | 27150117891 | 1 |
| 9 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 10 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 2 |
| 11 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
