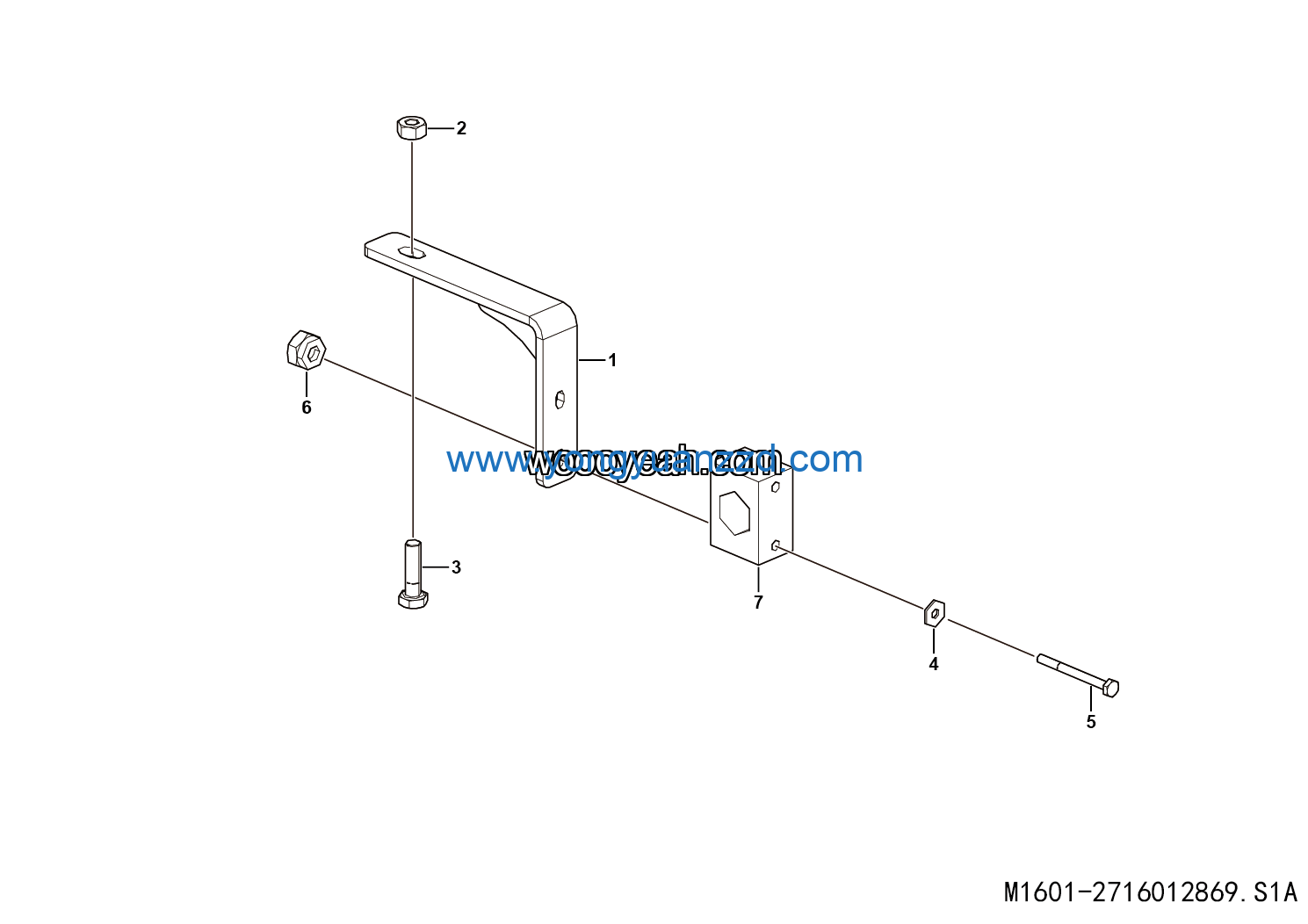

LGMG Off-Highway Dump Truck 2022 – ASM-Fixed bracket mounting assy – M1601-2716012869.S1A
Category: 2022 > Off-Highway Dump Truck > MT106HF > M106HW4A0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clamps | 27160121791 | 1 |
| 2 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 3 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 1 |
| 4 | Washer GB96.1-6EpZn-300HV | 4015000198 | 2 |
| 5 | Bolt GB5782-M6*60EpZn-8.8 | 4011000949 | 2 |
| 6 | Nut GB6185.1-M6EpZn-8 | 4013010117 | 2 |
| 7 | Clamp TLPG-430 | 4120704063 | 1 |
