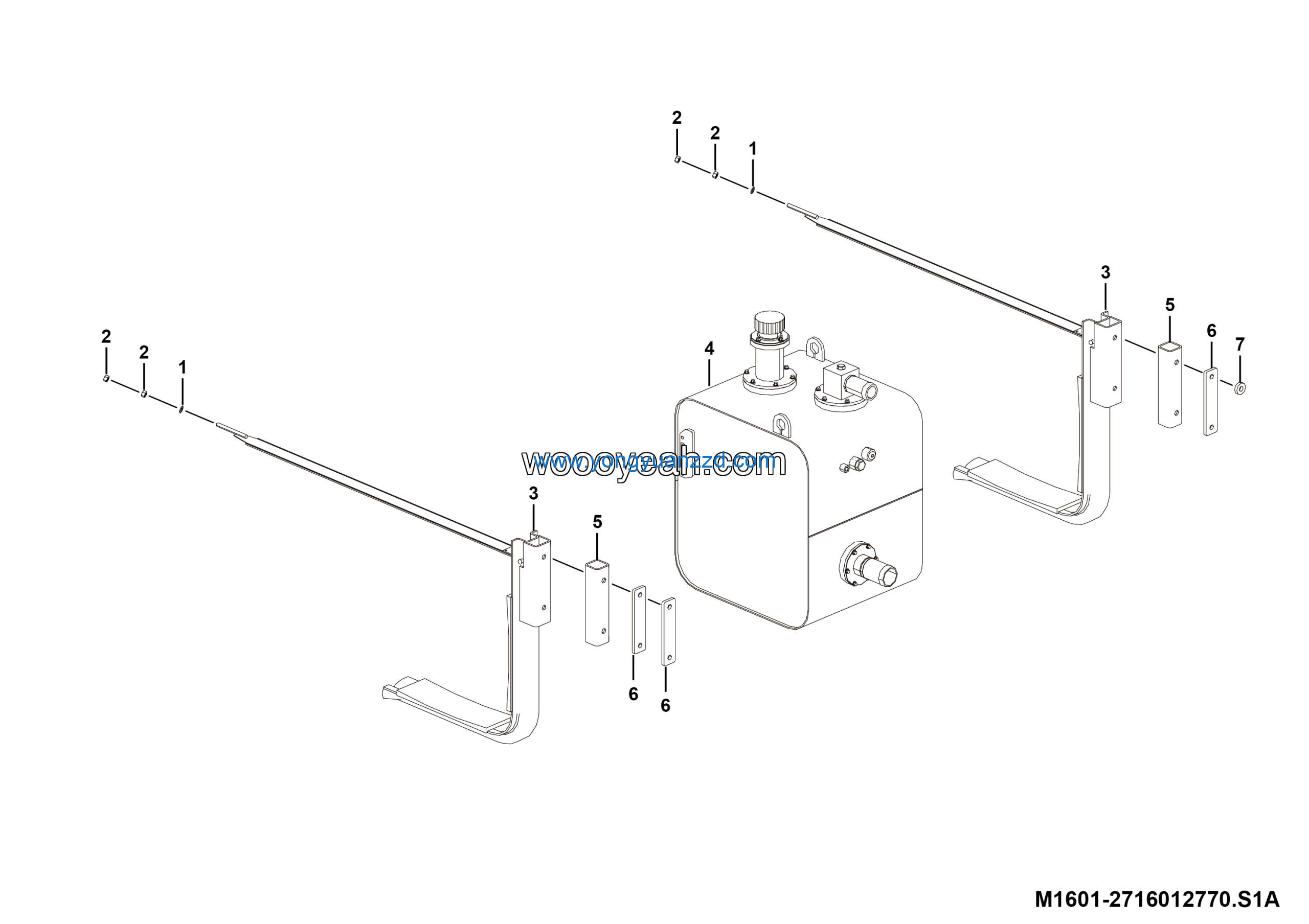

LGMG Off-Highway Dump Truck 2022 – ASM-Hydraulic tank installation assy – M1601-2716012770.S1A
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A0M102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 2 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
| 3 | Hydraulic oil tank bracket assembly | 27160108901 | 2 |
| 4 | Hydraulic oil tank assembly | 27160116562 | 1 |
| 5 | Tube | 27160109731 | 2 |
| 6 | Hydraulic tank plate | 27160115241 | 3 |
| 7 | Plate | 27020105041 | 1 |
