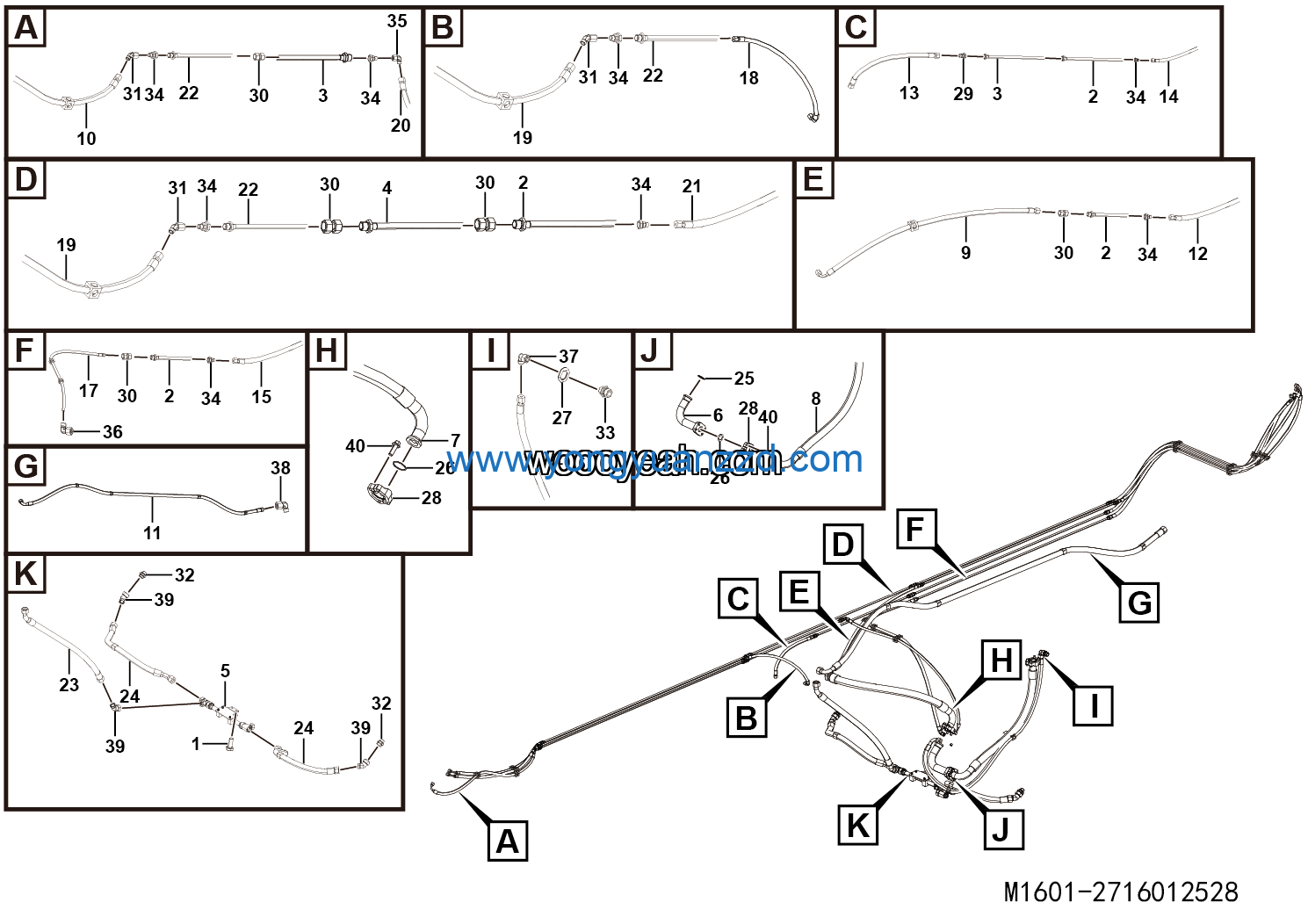

LGMG Off-Highway Dump Truck 2022 – ASM-lift hoseline assy – M1601-2716012528
Category: 2022 > Off-Highway Dump Truck > RT136 > R1260W3A0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose F481CFCA080804-1255 | 4120710312 | 1 |
| 2 | Hose F481CFCA222212-3600 | 4120710311 | 1 |
| 3 | Hose F681CACA080804-2100 | 4120709881-001 | 1 |
| 4 | Hose F681CACF101005-560 | 4120709883-001 | 1 |
| 5 | Hose F681CACF101005-2350 | 4120709882-001 | 1 |
| 6 | Hose F681CACF121208-2350 | 4120709884-001 | 1 |
| 7 | Hose F681CACF181810-1940 | 4120710310 | 1 |
| 8 | Hose LGB127-005190 | 4041011024-001 | 1 |
| 9 | Hose LGB128-003070 | 4041010925-001 | 1 |
| 10 | HOSE LGB128-003110 | 4041000915 | 2 |
| 11 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 12 | Hose LGB129-003155 | 4041010563-002 | 1 |
| 13 | Hose LGB165-003210 | 4041010415-001 | 1 |
| 14 | Pipe | 27160125321 | 3 |
| 15 | High-voltage hose | 27150122611 | 1 |
| 16 | Hose-1250 | 27160116101 | 1 |
| 17 | O-ring GB3452.1-45.0*3.55G | 4030000032 | 3 |
| 18 | O-ring GB3452.1-47.5*3.55G | 4030000130 | 3 |
| 19 | O-RING LGB168-02331 | 4041001695 | 1 |
| 20 | Split flange LGB117-314650 | 4041000011 | 3 |
| 21 | Joint 2C-16-18 | 4120704069 | 2 |
| 22 | Pipe | 27150122621 | 4 |
| 23 | Joint 3C-18 | 4120703971 | 5 |
| 24 | Joint EV08LOMDCF | 4120706262 | 4 |
| 25 | Straight joint 1CG-36-16 | 4120000759 | 2 |
| 26 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 27 | Combination joint 2C-14-18 | 4120704367 | 8 |
| 28 | Combination joint LGB143-01406 | 4041001047 | 1 |
| 29 | Combination joint LGB143-01810 | 4041001063 | 1 |
| 30 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 31 | JOINT LGB143-03625 | 4041001211 | 1 |
| 32 | Combination joint LGB143-13625 | 4041001485 | 3 |
| 33 | Pipe welded | 27160123921 | 2 |
| 34 | Bolt GB16674.1-M12*35EpZn-8.8 | 4011000477 | 12 |
| 35 | Pipe welded | 27160124041 | 1 |
| 36 | Lifting steel pipe assembly | 27160124491 | 1 |
| 37 | Joint | 27160125291 | 1 |
| 38 | Return oil hose | 2716012531-001 | 1 |
| 39 | Hose F4811519242424-1080 | 4120710309 | 1 |
| 40 | Hose F481CACF080806-1200 | 4120710144 | 1 |
