LGMG Off-Highway Dump Truck 2022 – ASM-Lift valve assy – M1601-2716012211.S1A
Category: 2022 > Off-Highway Dump Truck > RT106 > R1060W3A0A000

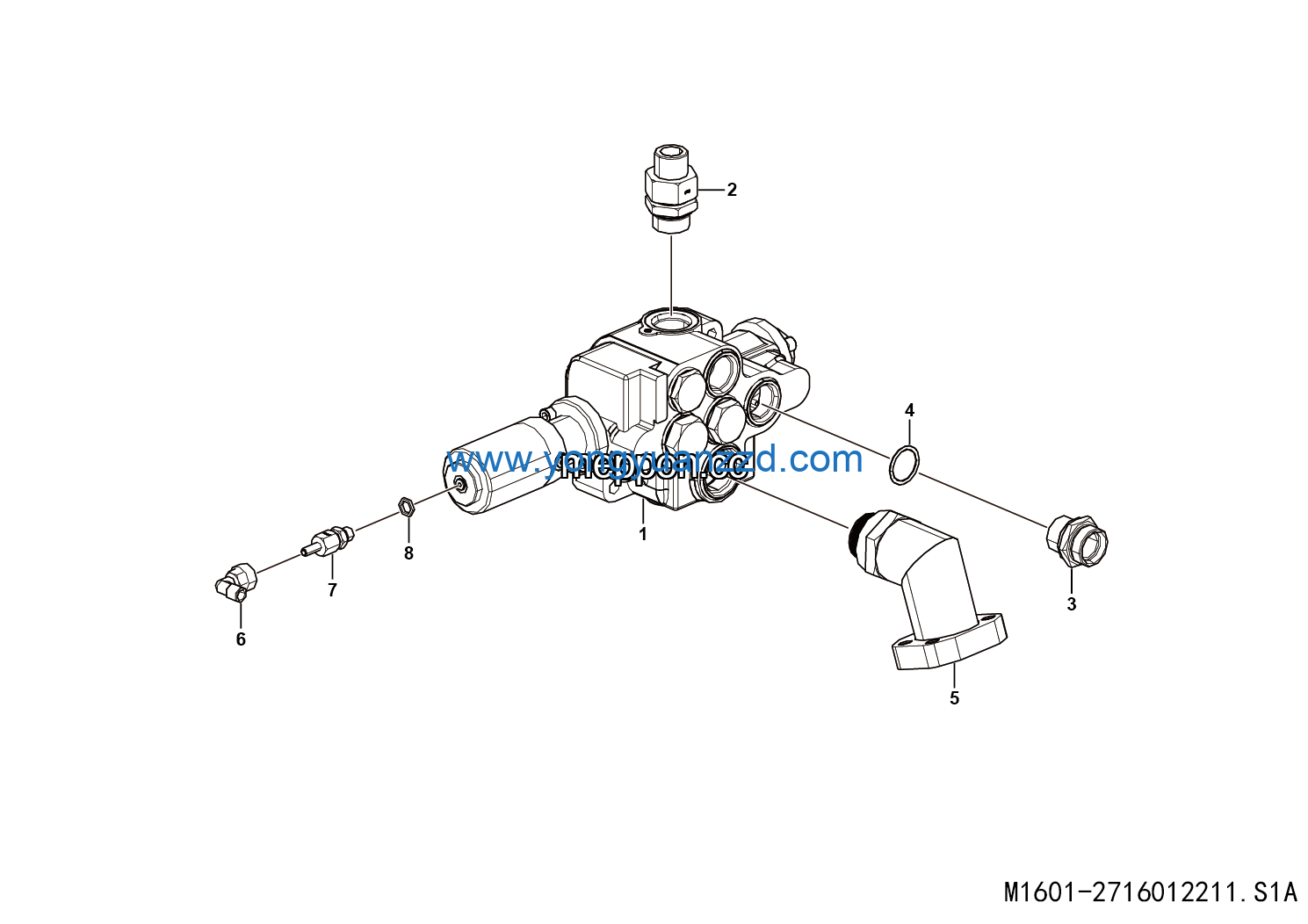

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lifting valve | 4120002439 | 1 |
| 2 | Straight joint 1CH-30-33 | 4120001887 | 1 |
| 3 | Straight joint LGB120-03633 | 4041000577 | 2 |
| 4 | O-ring LGB168-12931 | 4041000765 | 2 |
| 5 | Connector | 27160119603 | 1 |
| 6 | Combination joint LGB143-01205 | 4041010126 | 1 |
| 7 | Vertical nipple | 27130111131 | 2 |
| 8 | Copper washer 10 | 27100101091 | 2 |
